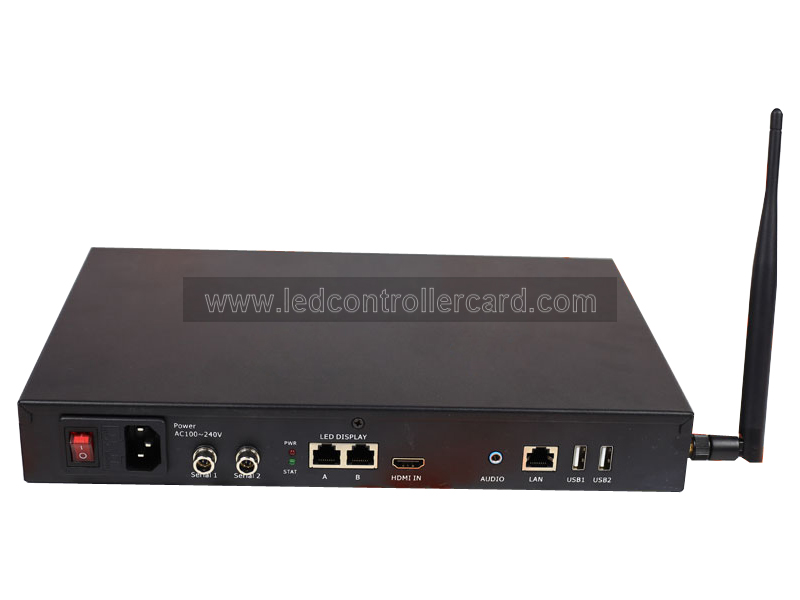

ColorLight C6 Big LED Display Video Player
ColorLight C6 Big LED Display Video Player is new generation of LED controller, C6 Networked LED Player equips with a built-in WiFi module, featuring cluster control and management of networked devices through LAN or WAN. It is the innovation based on a brand-new idea of LED control system, which has reached a new high level of digital player for LED screens. As a brand new controller application, C6 has many advantages in applications like advertising LED screens, exhibition LED screens and more.
LED Resolution Support: 1280*1024/1920*640
Core Chip: 1.6GHz CPU + 600Mhz GPU
Program Storage: 8GB internal Storage and extendable with EXT USB Storage
Size: 315*205*44
Working Voltage: AC 110-240V 50HZ
Weight: 1500G
Innovation
Big LED screen display without computer
Amazing visual effect and experience
Fully supporting play and control through wireless smart terminals
Supporting 1080P HD output
Fully compatible with program management and setup mode under conventional synchronized control system
Security and Stability
Built-in with LINUX Embedded operation system, immune from virus attacks
Made all from industrial electronic elements, quality assured
Watchdog design, never breakdown ensured
Multilevel security protections, system security guaranteed
Intelligent Control & Easy Management
U disc plug and play
Control through wireless intelligent terminals like PC, Android and iPhone etc
WLAN and 3G/4G network supported
Supporting monitoring of working temperature, humidity and brightness, and automatic adjustment of screen brightness
Easy Program Management
Program through LEDVISION, easy to do
Multiple play windows, of which size and location can be freely set. Overlap supported
Multiple program formats such as video, image, text, clock etc
Multiple program play window
ColorLight C6 Big LED Display Video Player Parameters:
| Basic Parameters | ||
| Core Chips | 1.6GHz Quad-core CPU 600MHz Quad-core GPU 1GB@1066MHz DDR3 | |
| LED Resolution | Maximum support 1310720 pixels Max H: 1920 pixels Max W: 1080 pixels for video Max H: 4096 pixels Max W: 1536 pixels for text-image | |
| Receiving Card Supported | All Colorlight receiving cards | |
| Interfaces | ||
| Audio Output | Provide HiFi audio output for maximum range of applications | |
| USB Ports | USB2.0*3 | |
| Port Output A | Output to Receiving Cards | |
| Port Output B | Output to Receiving Cards | |
| WAN | Ethernet | |
| Physical Parameters | ||
| Size | 315*205*44mm | |
| Working Voltage | AC 100~240V 50Hz | |
| Rated Power Consumption | 10W | |
| Weight | 1.5kg | |
| Working Temperature | -40℃～80℃ | |
| Environmental Humidity | 0-95% without condensation | |
| File Formats Supported | ||
| Window Split | 2 Video windows, multiple text/picture windows, scrolling text, LOGO, Date/Time/Week, Weather. Flexible screen split, different contents in each window | |
| Video Formats | AVI,WMV,MPG, RM/RMVB,MOV,DAT,VOB,MP4,FLV etc. | |
| Audio Formats | MPEG-1 Layer III，AAC etc. | |
| Image Formats | bmp、jpg、png etc. | |
| Text Formats | txt，rtf，word，ppt，excel etc. | |
| Text Display | Single Line Text, Static Text and Multiple Line text | |
| Play Window | 2 Video windows, multiple text/picture windows, scrolling text, LOGO, Date/Time/Week, Weather. Flexible screen split, different contents in each window | |
| OSD supported | support 32bit OSD, support video/text/picture mixture or overlay | |
| RTC Real-time Clock | Real-time Clock Display and Management supported | |
| Terminal Management & Control | ||
| Communication | LAN/Wi-Fi | |
| Program Update | USB stick plug and play; sent by Wireless terminals | |
| Management Devices | PC, Android smart terminals | |
| Wireless Control | Via PC, tablet or smartphone | |
| Automatic Brightness Adjustment | Timing Automatic Adjustment/Environmental Automatic Adjustment | |
| Timing Play | Scheduled play supported | |
| Timing Switch on/off | Supported | |
| Software | LEDVISION 4.12/higher version | |
Download Specification:
–Colorlight-C6-player-Specification.pdf
