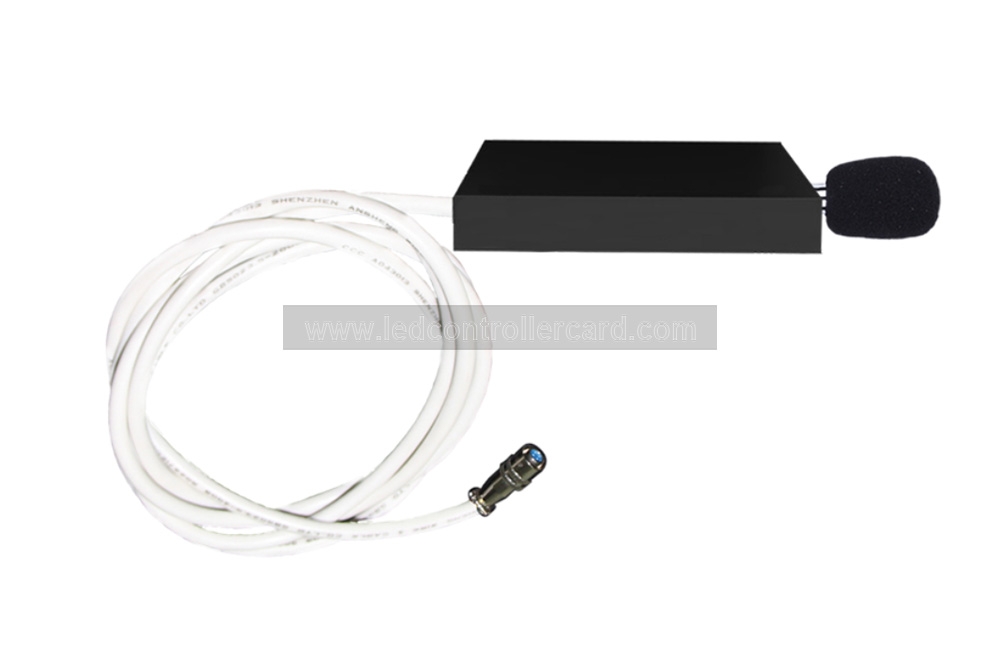

Colorlight SSR-NOISE noise sensor overview
The Colorlight SSR-NOISE measures ambient sound level for LED display monitoring and control installations. Its direct-reading decibel module covers 30–120 dB, while multi-point calibration and a separately packaged stainless steel probe support integration into an equipment enclosure. The board’s core circuitry is shielded to help resist interference.
Key features
- 30–120 dB measuring range with a response time under 3 seconds.
- 20 Hz–12.5 kHz frequency range and specified maximum error of 0.5 dB.
- Standard 5 m cable and separately packaged stainless steel probe.
- TTL, I²C and RS485/Modbus RTU output options are listed in the Colorlight specification. Confirm the interface supplied with your unit before connecting it.
SSR-NOISE specifications
| Parameter | Specification |
|---|---|
| Measuring range | 30–120 dB |
| Frequency range | 20 Hz–12.5 kHz |
| Response time | <3 s |
| Maximum error | 0.5 dB |
| Stability | <2% |
| Power supply | 5 V or 12 V DC |
| Average power consumption | 0.1 W |
| Output types listed | TTL / I²C / RS485 (Modbus RTU) |
| Interface specification | XH2.54, 4 pin |
| Standard cable length | 5 m |
| IP rating | IP20 |
| Operating temperature | −20°C to 70°C |
| Storage temperature | −40°C to 70°C |
| Relative humidity | 25%–90% |
| Atmospheric pressure | 65–108 kPa |
| Dimensions | 78 × 77.3 × 32.1 mm |
| Weight | 50 g |
Connection and installation notes
Match the sensor’s supply voltage, 4-pin connector and output type to the input supported by your Colorlight controller or integration equipment. The specification lists several output types; it does not establish that every output is available simultaneously on every supplied version. IP20 is intended for protected installations, so use a suitable enclosure where the sensor may be exposed to dust or water. Contact us to confirm the exact interface for your project.
Specification download
Download the Colorlight SSR-NOISE specification (V1.0, 28 July 2017):
Conclusion
The SSR-NOISE is a compact Colorlight sound-level sensor for projects requiring 30–120 dB measurement. Check the output interface and power requirements against your controller before ordering.
