Colorlight S2 is an external LED sending box for a synchronous LED display system. It takes a DVI signal from a video source and sends display data to compatible Colorlight receiving cards through two Gigabit Ethernet ports. Its total loading capacity is up to 1.31 million pixels.
Colorlight S2 sending box at a glance
- Video input: DVI, up to 1920 × 1200 pixels at 60 Hz; frame rate can adjust automatically.
- LED outputs: two Gigabit Ethernet ports, each rated for a 1280 × 512 pixel control area or equivalent.
- Total load: up to 1280 × 1024 pixels or equivalent, approximately 1.31 million pixels. A 2560 pixel maximum applies to either width or height, subject to the total pixel budget.
- Setup and expansion: dual USB 2.0 interfaces enable PC configuration and cascading of sending units.
- Other functions: audio transmission, brightness and color temperature adjustment, DVI input detection, and Ethernet cable error detection.
How the S2 fits into an LED display system
Connect the DVI output of a computer or video source to the S2. Connect its Ethernet outputs to the receiving cards in the LED cabinets, then configure the screen mapping through Colorlight software. The two outputs can be arranged for vertical or horizontal screen splicing. For cable planning, Colorlight’s S2 controller specification recommends CAT5e runs of no more than 100 m; verify the complete installation and receiving-card configuration before deployment.
This listing is for the external S2 controller box. Colorlight also documents an S2 sending card as a separate product, so check the enclosure and interface you need before ordering.
Colorlight S2 specifications
| Specification | Value |
|---|---|
| Video input | DVI; up to 1920 × 1200 pixels; standard 60 Hz with automatic frame-rate adjustment |
| Ethernet outputs | 2 × Gigabit Ethernet |
| Loading capacity | Up to 1.31 million pixels total; 1280 × 512 pixels or equivalent per port |
| Maximum dimension | Up to 2560 pixels in width or height, within the total loading capacity |
| Recommended cable distance | CAT5e ≤ 100 m, per Colorlight S2 controller specification |
| Configuration | USB; dual USB 2.0 interfaces for PC communication and cascading |
| Compatible receivers | Colorlight receiving-card series |
| Power | AC 100–240 V, 50/60 Hz; rated consumption 15 W |
| Dimensions and weight | 275 × 198 × 44 mm; 2.1 kg |
Common questions
How many pixels can one Colorlight S2 control?
Up to approximately 1.31 million pixels across its two Gigabit Ethernet outputs. The supported screen shape also depends on per-port loading and the maximum dimension limits.
Does the S2 accept HDMI directly?
The documented input on this S2 controller box is DVI. If your source has HDMI output, check the signal format and conversion requirements before connecting it.
Is this the S2 sending card?
No. This product is the external S2 sending box. Colorlight lists the S2 sending card separately; confirm the physical format needed for your system.

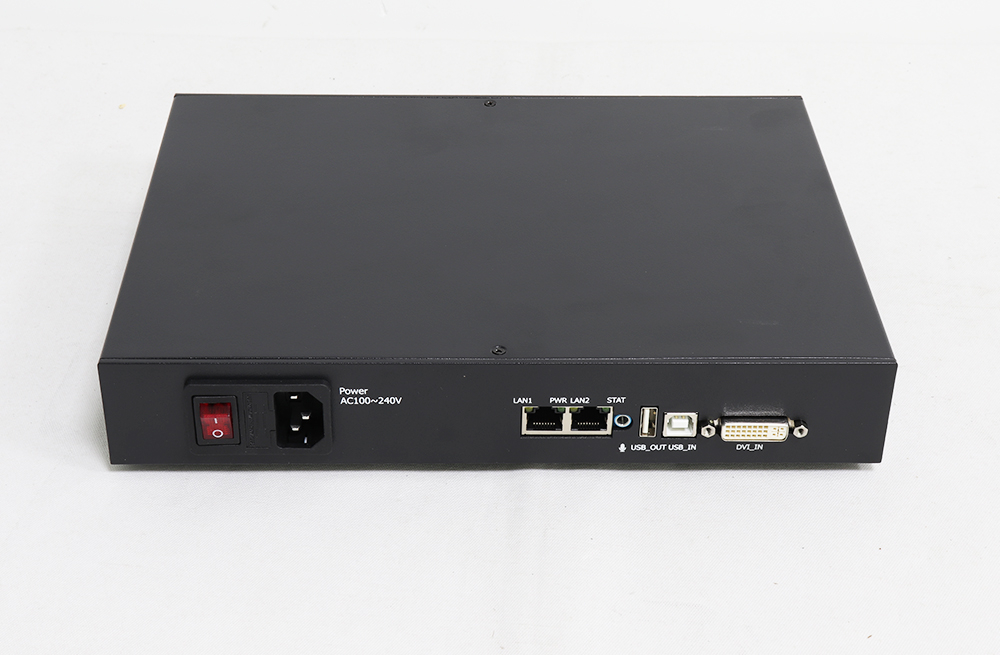

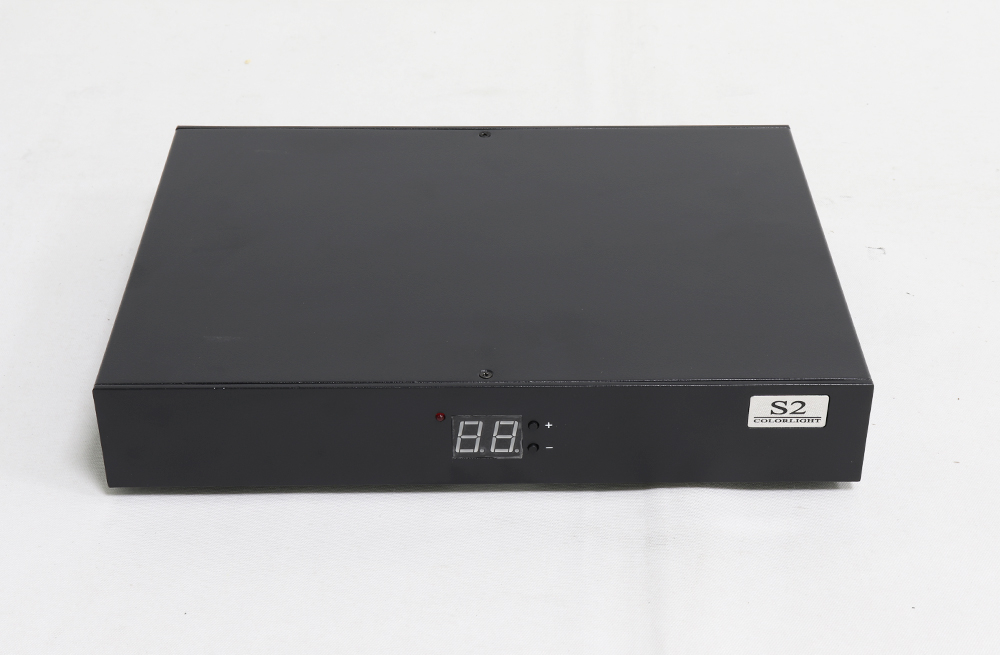

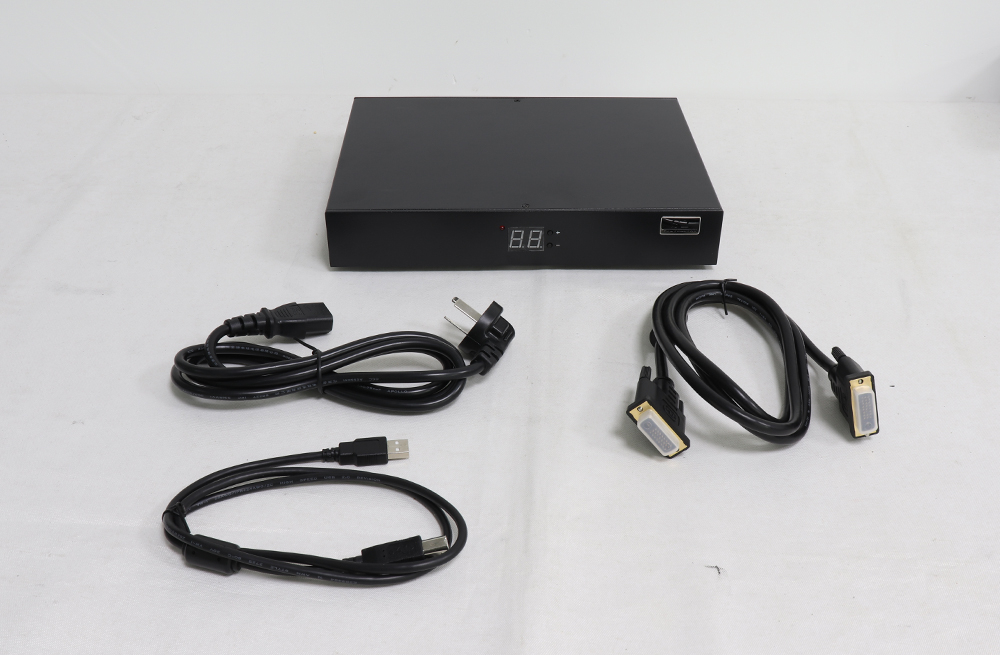

Product images
Specifications and manual
- Download the Colorlight S2 sending box specification
- Download the Colorlight S2 sending box user manual
For versioned manufacturer documentation, see Colorlight’s S2 controller downloads. Browse other LED sending boxes if you need a different input or output capacity.
Conclusion
The Colorlight S2 is a compact DVI LED sending box for displays within a 1.31 million pixel load. Its two Gigabit Ethernet outputs and USB cascading suit installations that need straightforward screen mapping; confirm port load, cabling, and receiving-card compatibility for your project.
