Colorlight Z4 Pro 4K LED Video Controller
The Colorlight Z4 Pro (Z4Pro) is a professional video processor and LED display controller for live events, broadcast, television and filming. It accepts 4K sources through HDMI 2.0, DisplayPort 1.2 and 12G-SDI, then crops, scales and arranges the picture for the LED wall.
This model provides 10 Gigabit Ethernet outputs and one 10G fiber output, with the output mode selected between Ethernet and fiber. Its maximum load is 6.55 million pixels at 60Hz with 8bit output. Input resolution and LED output capacity are different specifications; check both when planning a screen.
Key Specifications
| Specification | Z4 Pro |
|---|---|
| Video inputs | 1 × HDMI 2.0, 1 × DP 1.2, 1 × 12G-SDI |
| Maximum standard input | 4096 × 2160 at 60Hz; 8bit/10bit video input |
| LED output interfaces | 10 × Gigabit Ethernet or 1 × 10G fiber; select the output mode |
| Capacity at 60Hz | Up to 6.55 million pixels at 8bit; 4.91 million at 10bit |
| Capacity at 120Hz | Up to 3.27 million pixels at 8bit; 2.45 million at 10bit |
| Picture composition | Up to three layers; cropping, scaling and source switching |
| HDR and synchronization | HDR10/HLG; Genlock input and loop |
| Redundancy | Ethernet port backup and controller redundancy |
| Control interfaces | USB for control/cascading, RS232 and LAN TCP/IP |
| Fiber module | 10G SFP+ optical module purchased separately; distance depends on module specification |
Capacity depends on output frame rate, color depth and port allocation. Confirm the cabinet layout and required canvas dimensions before ordering. Specifications refer to the Z4 Pro documents linked below.
Video Processing for Events and Broadcast
4K source handling and three-layer layouts
Connect a media server, presentation computer or compatible broadcast source through the appropriate video input. Use cropping and scaling to fit content to the wall, and arrange up to three layers for a presentation, live camera feed or event graphics. Check the source timing and each layer’s requirements during system design.
HDR, Genlock and latency
HDR10 and HLG support provides a path for HDR content when the source, receiving cards and LED display are configured appropriately. Genlock input and loop help synchronize controllers to an external reference. The specification lists a minimum one-frame low-latency mode and a minimum zero-frame processing mode; actual system latency depends on the operating mode and the complete signal chain.
Color adjustment and control
Adjust hue, saturation, contrast, brightness compensation, color temperature and individual RGB channels. USB, RS232 and LAN connections support device control and integration. Configure Ethernet port backup or controller redundancy to suit the installation’s continuity requirements.
Plan Your LED Display Connection
- Calculate the wall’s pixel count: multiply its pixel width by its pixel height, then check the capacity for the intended frame rate and color depth.
- Plan each output port: distribute cabinets within the per-port limits and allow for the chosen backup arrangement.
- Choose Ethernet or fiber: the fiber output carries the data corresponding to Ethernet ports 1–10. It does not add a second independent pixel budget.
- Confirm the receiving system: verify your LED receiving cards, cabinet configuration and firmware before installation.
For a project check, send us your screen resolution, receiving-card model, source connections and required frame rate. You can also browse our Colorlight products to select the rest of the control system.
Frequently Asked Questions
Does the Z4 Pro have 10 or 20 Ethernet outputs?
The Z4 Pro has 10 Gigabit Ethernet outputs. Use the model-specific Z4 Pro specification when comparing products listed together in Colorlight’s Z5/Z4 Pro range.
Can one Z4 Pro drive a full 3840 × 2160 LED wall at 60Hz?
That wall contains 8,294,400 pixels, which exceeds the Z4 Pro’s 6.55-million-pixel limit at 60Hz/8bit. Accepting a 4K source does not mean one unit can drive every pixel of a native 4K LED wall. Choose a suitable controller arrangement for the actual output load.
Is the optical module included?
The specification identifies the 10G SFP+ optical module as a separate purchase. Confirm the module, fiber type and receiving-end equipment for the required transmission distance.
Is Z4 Pro the same model as Colorlight Z4?
No. This listing is for Colorlight Z4 Pro. Match the complete model name when selecting hardware, manuals and firmware.

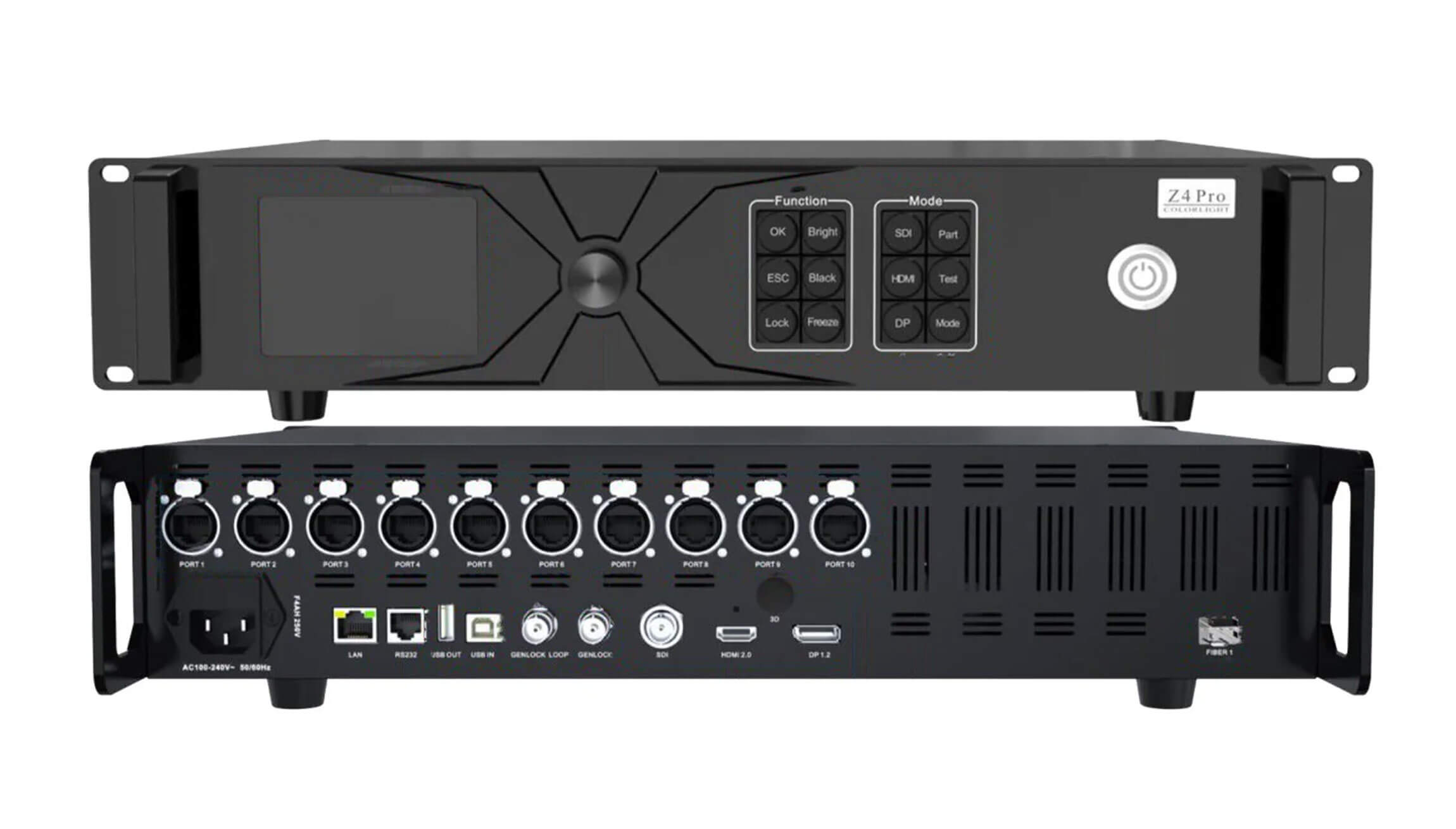

Product Image and Documentation
- Download the Colorlight Z4 Pro LED Display Video Controller Specification (PDF)
- Colorlight official Z5/Z4 Pro documentation and firmware — select the Z4 Pro document for this product.
Conclusion
The Colorlight Z4 Pro combines 4K input, three-layer processing, HDR and Genlock with a 10-port LED output system. It is a practical choice for projects within its frame-rate and color-depth capacity limits. Confirm the screen load, receiving cards and fiber accessories to build a compatible installation.
