Colorlight Z5 4K LED Video Controller Overview
The Colorlight Z5 combines video processing and LED display control for live events, broadcast studios, television production and large display installations. It accepts full 4K video sources and provides 20 Gigabit Ethernet outputs for distributing image data to a compatible LED receiving system.
For a Z5 project, start with the LED wall’s actual pixel dimensions, source connection and required frame rate. These determine whether the controller fits your installation more reliably than the physical screen size or the term “Ultra-4K” alone.
Key Specifications
| Item | Specification / planning note |
|---|---|
| Video inputs | HDMI 2.0, DisplayPort 1.2 and 12G-SDI; up to 4096 × 2160 at 60 Hz input |
| Ethernet outputs | 20 × Gigabit Ethernet ports with Neutrik etherCON connectors |
| Optical transmission | 10 Gigabit optical output for compatible fiber transmission systems |
| Maximum pixel capacity | Approximately 13 million pixels; available loading depends on operating settings |
| Maximum dimensions | Up to 16,384 pixels wide or 8,192 pixels high, subject to total loading and mode limits |
| Display layers | Up to 3 layers, with cropping, scaling, splicing and window positioning |
| HDR and synchronization | HDR10 / HLG; Genlock input and loop |
| Device management | Browser-based control; USB, RS232 and LAN control interfaces |
Capacity note: Maximum input resolution, total output pixels and maximum width or height are different limits. Do not combine the maximum width and maximum height into one supported screen size. Check the proposed mapping at your chosen frame rate and color depth before installation.
Video Processing for Events and Broadcast
Arrange multiple sources on one LED wall
Use the layer controls to crop source content, scale it to the display area and position windows for a presentation or live production. Prepare your source resolutions and intended layout before setup so that text, graphics and video retain the correct proportions.
Plan synchronization and latency together
Genlock provides a timing reference for synchronized display systems. Colorlight advertises a minimum one-frame delay for this product family. Treat that as a controller capability under suitable conditions, rather than a guarantee for the entire camera-to-screen signal path. Confirm firmware, processing mode and receiver settings for latency-critical work.
Match the HDR signal path
When planning HDR playback, check the source format, controller settings and LED receiving system together. A compatible input alone does not confirm that every part of an installation is configured for the intended HDR result.
Installation and Ordering Checklist
- Screen mapping: provide the cabinet arrangement and total pixel width × height, then check the load on each output port.
- Signal source: identify the HDMI, DisplayPort or SDI source and its resolution, frame rate and color depth.
- Receiving system: confirm the receiving-card model, cabinet configuration files and firmware compatibility.
- Transmission distance: for fiber runs, specify the transceiver, optical modules, fiber type and connectors. Colorlight identifies the H10FN as a companion optical transceiver.
- System resilience: plan Ethernet-port or controller redundancy where required, and validate the complete wiring arrangement during commissioning.
Browse our Colorlight products and LED receiving cards for system planning. Contact us with your screen mapping and input requirements to confirm the configuration and accessories before ordering.
Frequently Asked Questions
Is the Colorlight Z5 a 4K controller?
Yes. Its HDMI 2.0, DP 1.2 and 12G-SDI inputs support 4K sources. The input signal format and the output LED wall mapping must each remain within their respective limits.
How many Ethernet output ports does the Z5 have?
The Z5 has 20 Gigabit Ethernet output ports. Plan their loads around the actual cabinet layout and receiving-card configuration.
Does the Z5 replace LED receiving cards?
No. The controller processes and sends image data; compatible receiving cards are still needed inside the LED display system to drive the cabinets and modules.
Can I control the Z5 from a web browser?
Yes. Colorlight lists browser-based device management. For commissioning, confirm the network connection and the software or firmware requirements for your installation.

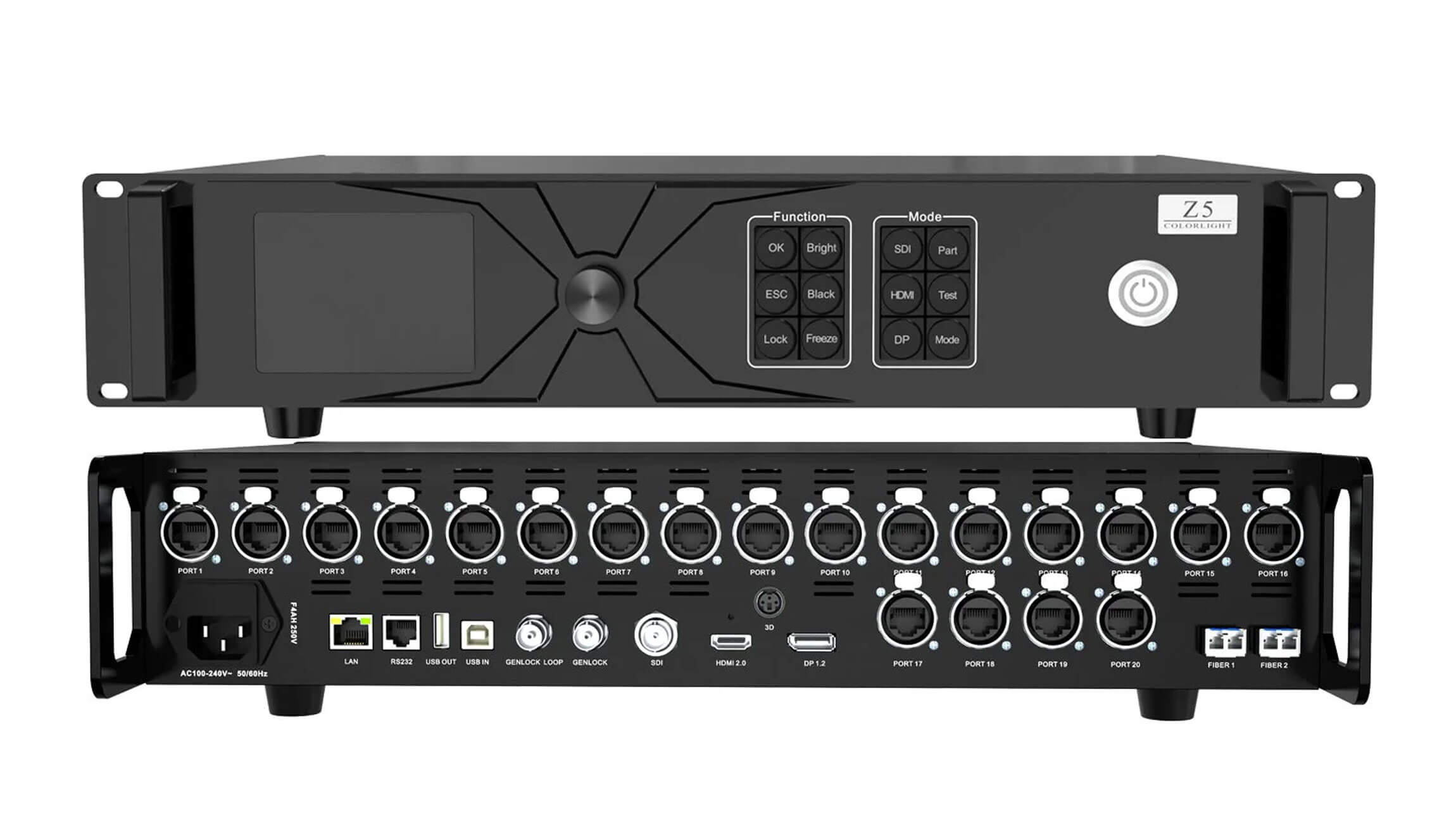

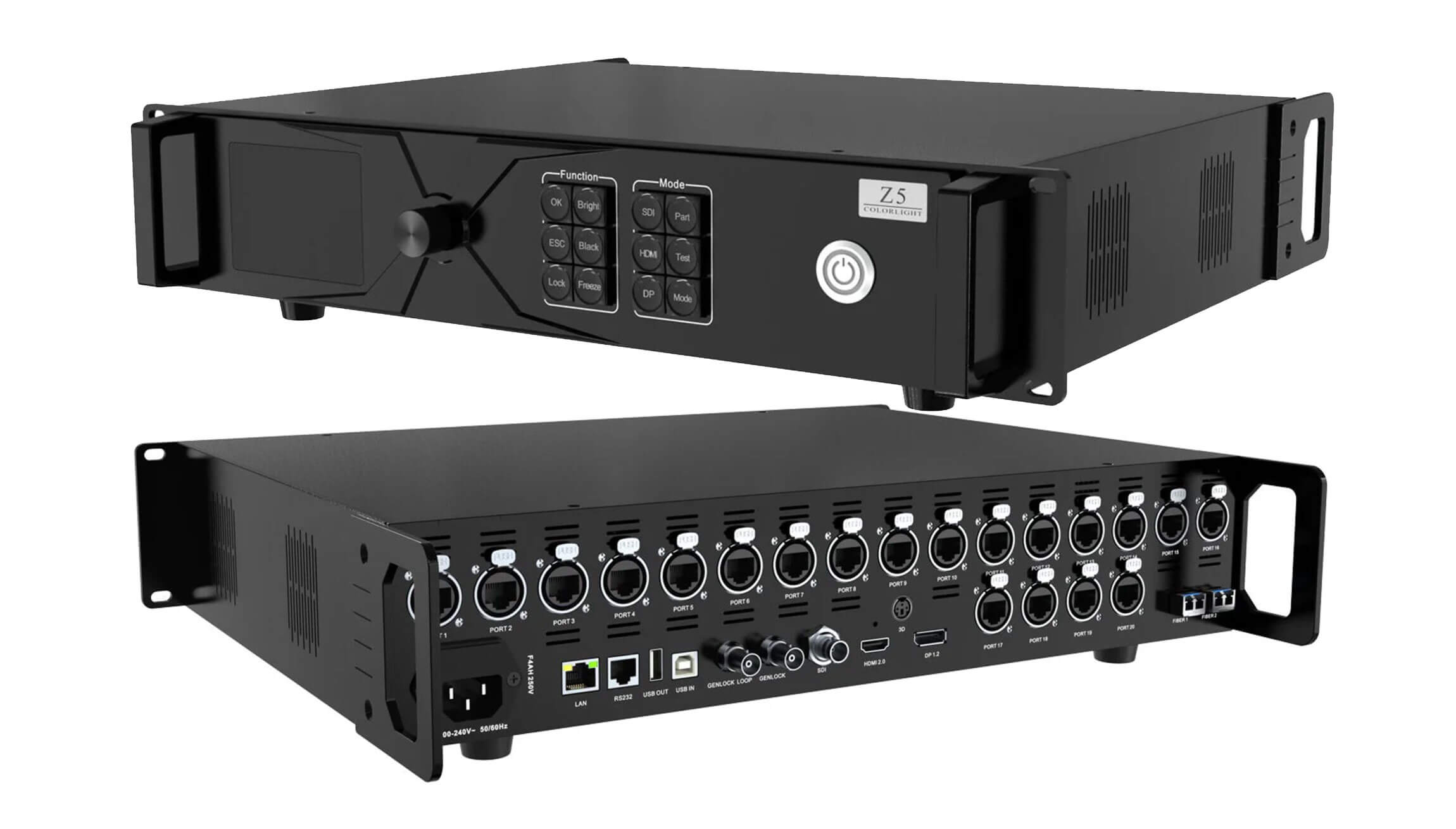

Product Image and Documentation
Download the Colorlight Z5 LED Display Video Controller Specification (PDF)
Manufacturer reference: Colorlight Z5/Z4 Pro product features. Check model-specific documentation and the supplied firmware when confirming advanced functions.
Conclusion
The Colorlight Z5 is a practical choice for projects needing 4K source inputs, 20 Ethernet outputs, multiple display layers and synchronized LED playback. Confirm screen loading, signal format, receiving-card compatibility and transmission hardware to build the correct configuration for your application.
