Colorlight Z6 Super Controller overview
The Colorlight Z6 is an integrated video splicer, processor and LED sender for rental and high-resolution LED displays. It takes HDMI 2.0, 3G-SDI and DVI video sources, scales and arranges content for an LED canvas, and sends data through 16 Gigabit Ethernet outputs to Colorlight receiving cards. Its 4K capability describes the input signal; the specified LED loading capacity is up to 8.3 million pixels.
Key specifications
| Item | Z6 specification |
|---|---|
| Video inputs | 1 × HDMI 2.0, 2 × 3G-SDI, 4 × DVI |
| Maximum stated input | 3840 × 2160 at 60 Hz |
| LED loading capacity | Up to 8.3 million pixels; maximum stated width or height 8192 pixels, subject to total capacity |
| LED outputs | 16 × Neutrik Gigabit Ethernet |
| Control and sync | 100M Ethernet control, USB input/output, Genlock input/loop and 3D sync |
| Chassis | 2U standard enclosure |
Specifications above follow the Colorlight-authored Z6 specification listing and Z6 technical document. Confirm the firmware and connected receiving-card configuration before final system design.
Video processing and LED display control
- Scale and splice input images to fit the configured LED screen; use picture-in-picture to position and size a secondary source.
- Synchronize cascaded controllers with Genlock for larger systems.
- Adjust brightness and chromaticity; the specification also lists improved grayscale performance at low brightness, HDR image processing and 3D display support.
- Connect the Ethernet outputs to compatible Colorlight receiving cards. Plan the cabinet map against both the 8.3-million-pixel total and the stated 8192-pixel dimension limit.
Front and rear panel reference
Front panel

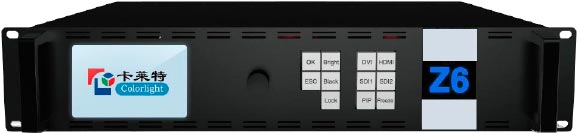

The 3.5-inch LCD, knob and function keys provide local menu navigation, brightness, blackout, lock, PIP, freeze and source selection controls.
Rear panel

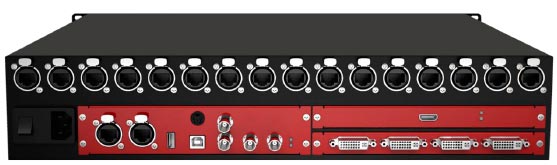

The rear panel provides the video inputs, 16 Ethernet outputs and control/synchronization connections listed above.
Common questions
Does the Z6 drive a full 4K LED canvas?
The Z6 accepts a 3840 × 2160 at 60 Hz video input. LED output capacity is specified separately as up to 8.3 million pixels; verify the planned screen dimensions and port loading before purchase.
How many video sources can I connect?
The Z6 provides one HDMI 2.0, two 3G-SDI and four DVI inputs. Picture-in-picture and splicing help arrange selected sources on the LED display.
Can several Z6 controllers be synchronized?
Yes. The specification lists controller cascading and Genlock input/loop connections for synchronized multi-controller installations.
