EagerLED EAA200HS4.5 LED Display Power Supply
The EagerLED EAA200HS4.5 is a switching power supply for LED display modules and cabinet power systems that require a matching 4.5V DC supply. The product label shown in the photos identifies a 4.5V, 40A output and a 200–240V AC input at 50/60Hz.
When replacing an LED screen power supply, match the complete model number and electrical ratings, then check the terminal arrangement and mounting space. A similar model name alone does not establish compatibility.
Electrical Ratings Shown on the Product Label
| Parameter | Label rating |
|---|---|
| Brand | EagerLED |
| Model | EAA200HS4.5 |
| Power supply type | Switching power supply |
| DC output voltage | 4.5V |
| DC output current | 40A |
| AC input voltage | 200–240V AC |
| Input frequency | 50/60Hz |
| Maximum input current | 3A, as marked on the pictured unit |
Choosing a Power Supply for Your LED Display
- Confirm the required voltage: select this model only where the LED modules and connected equipment accept its 4.5V DC output.
- Check the load: compare the cabinet’s required current with the 40A label rating and confirm any applicable derating for the installation.
- Match the AC supply: the pictured unit is marked 200–240V AC. Its label does not identify it as a 110V input model.
- Check the physical fit: compare mounting points, terminal positions and available cabinet space with the existing power supply before ordering.
For replacement selection, contact us with the existing power supply label and the LED module requirements.

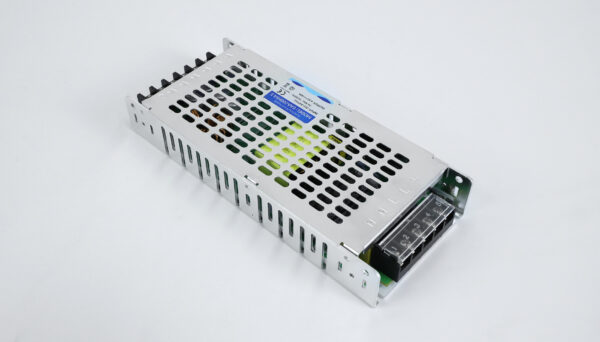

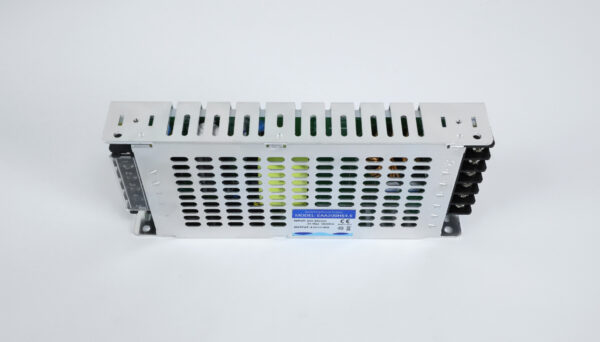

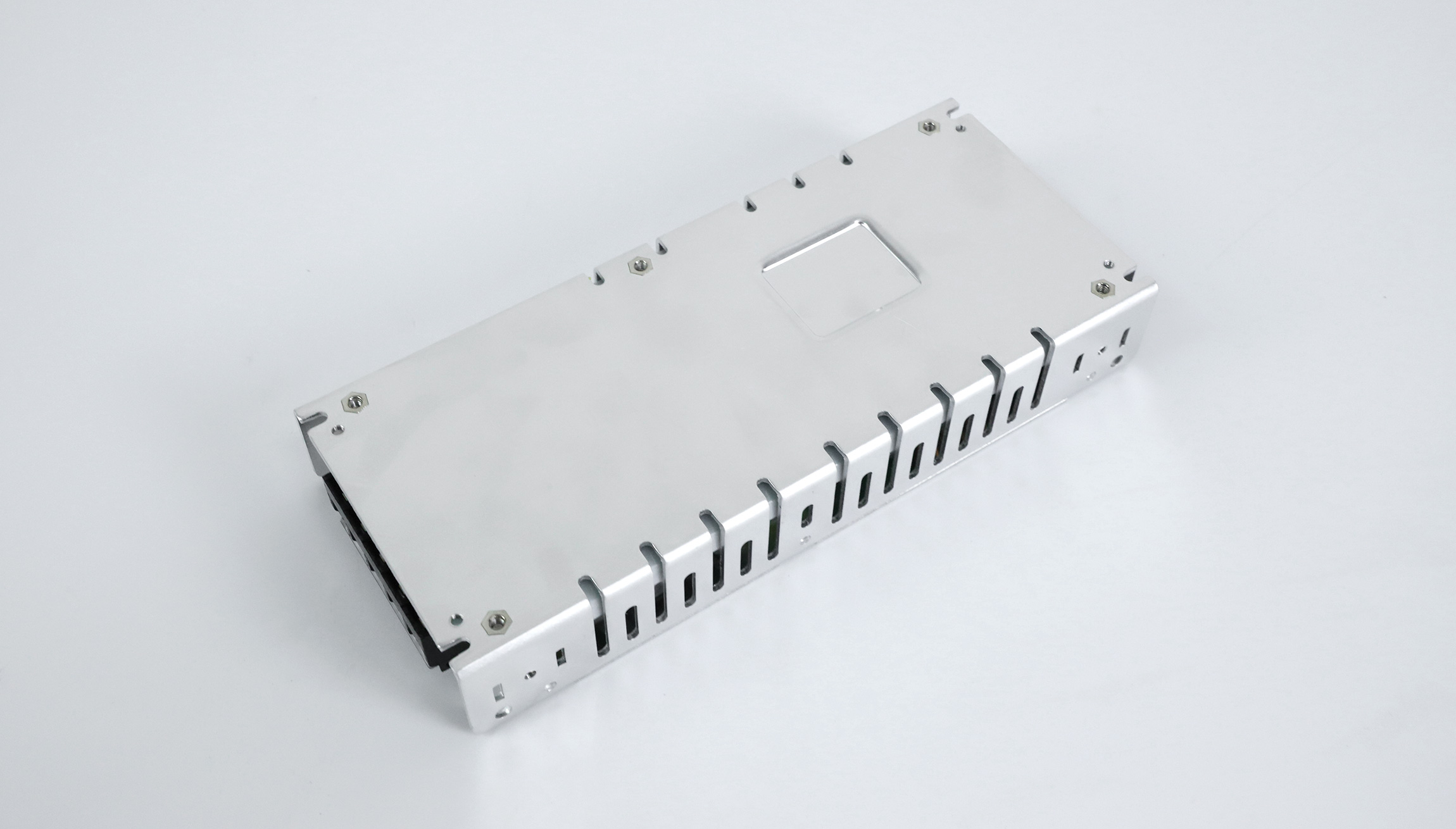

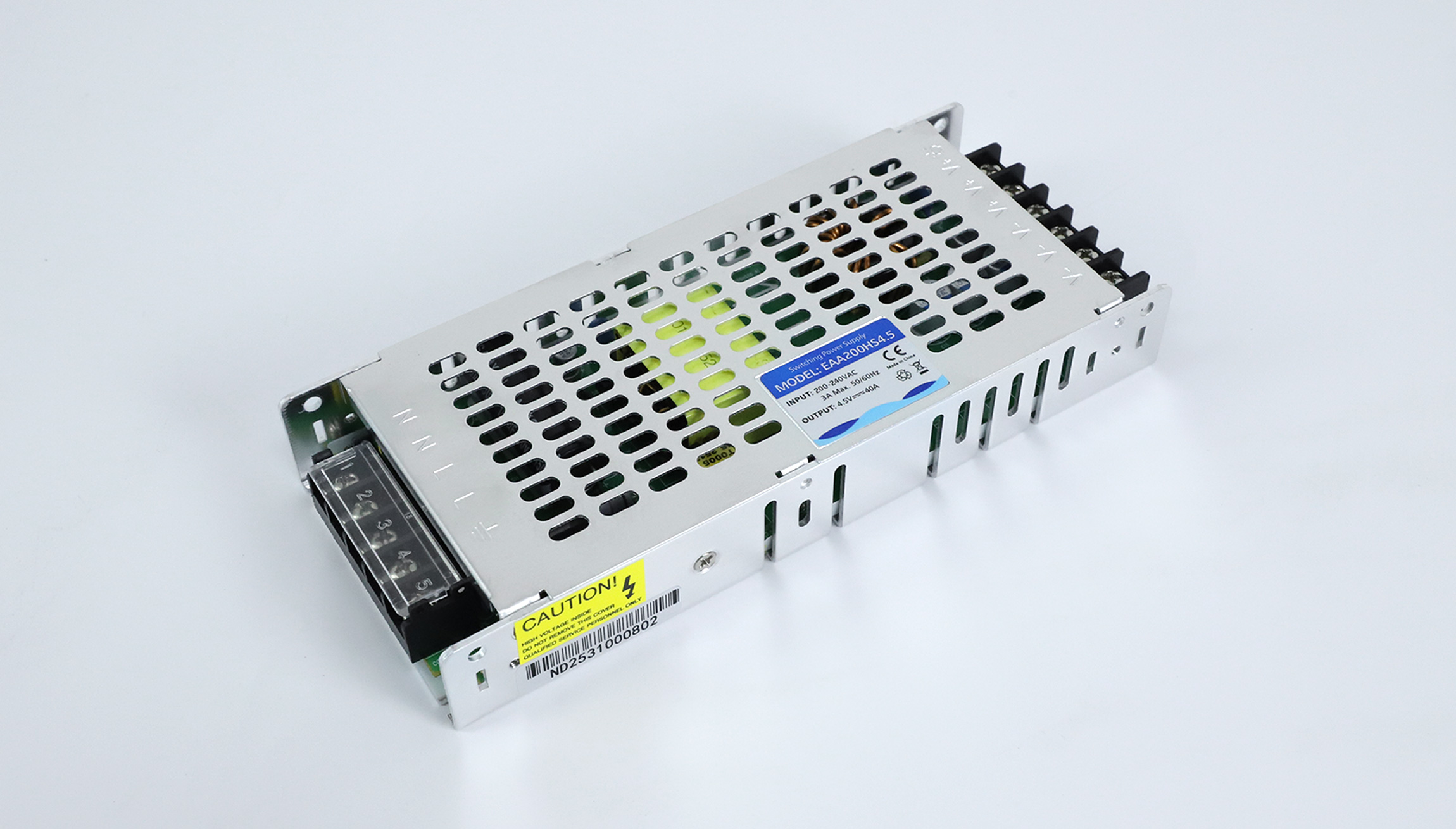

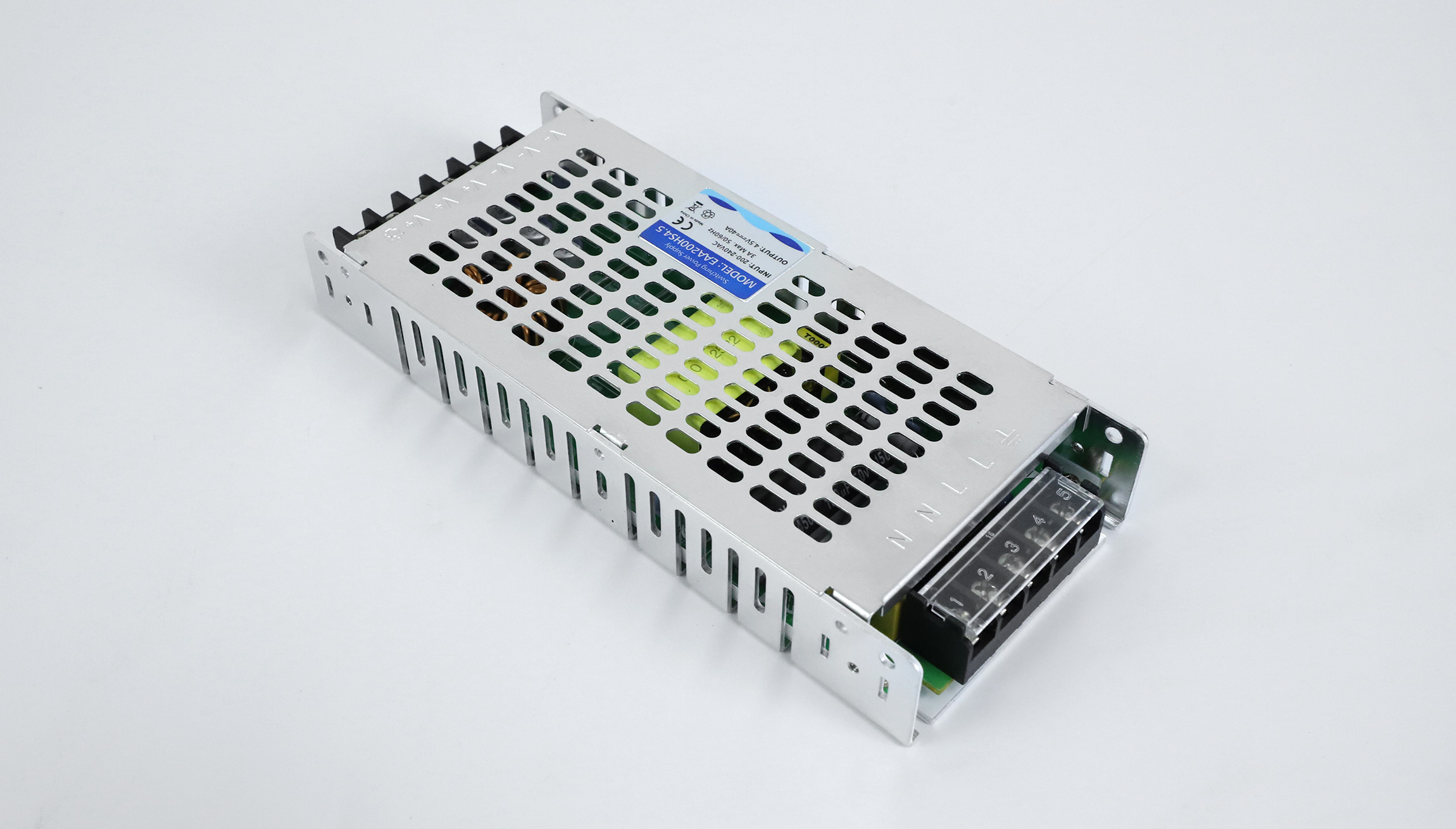

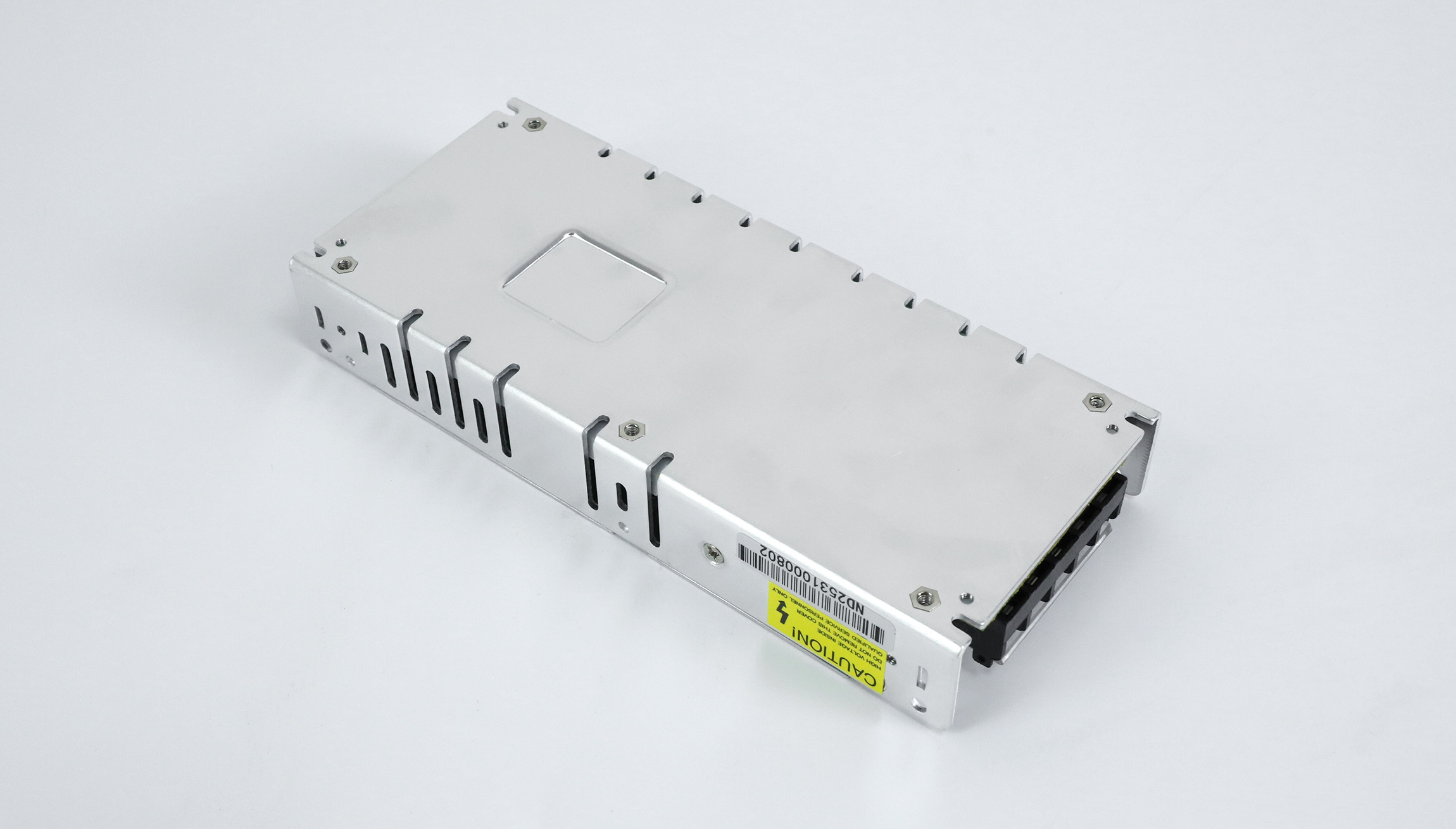

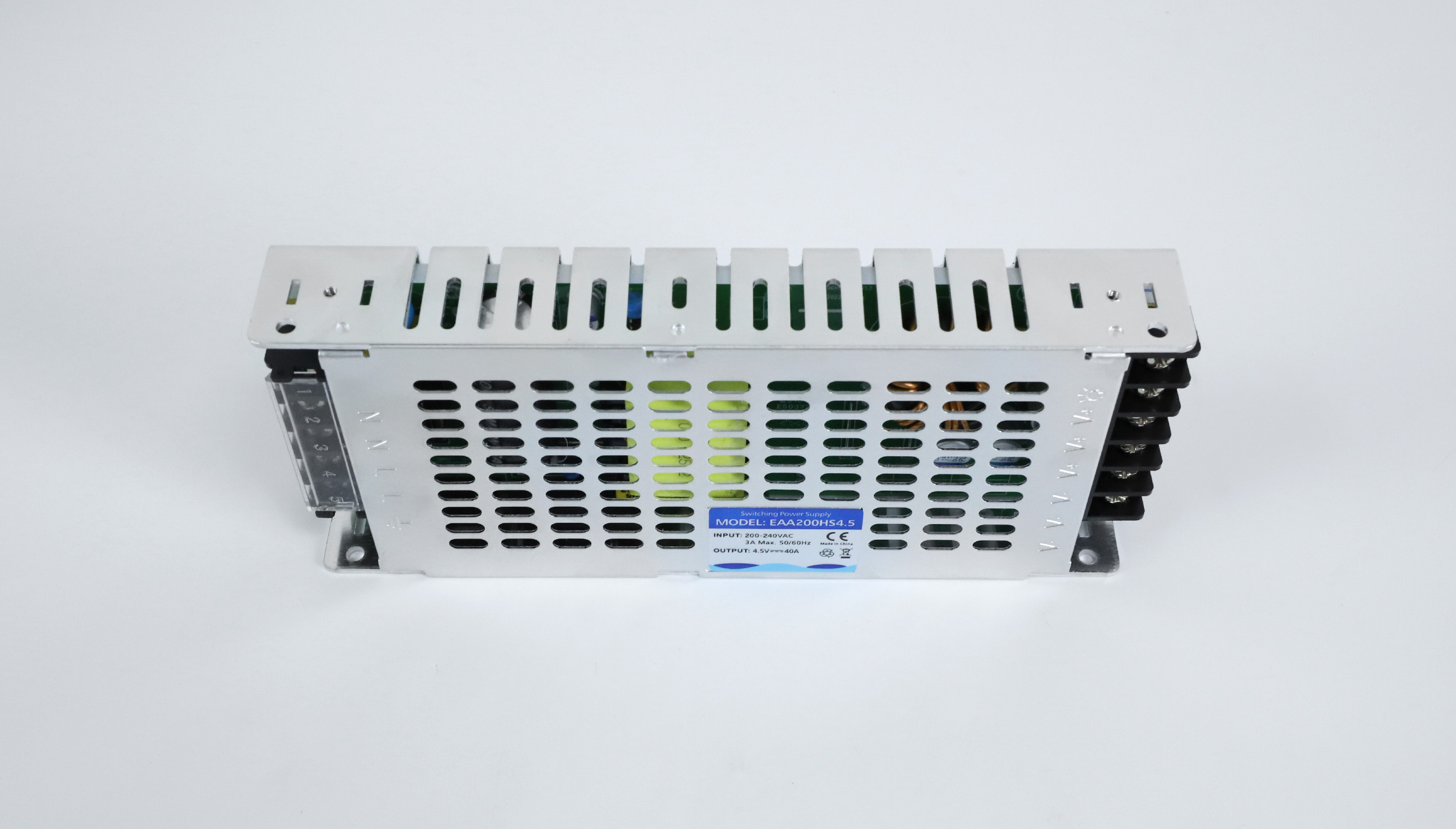

Product Photos

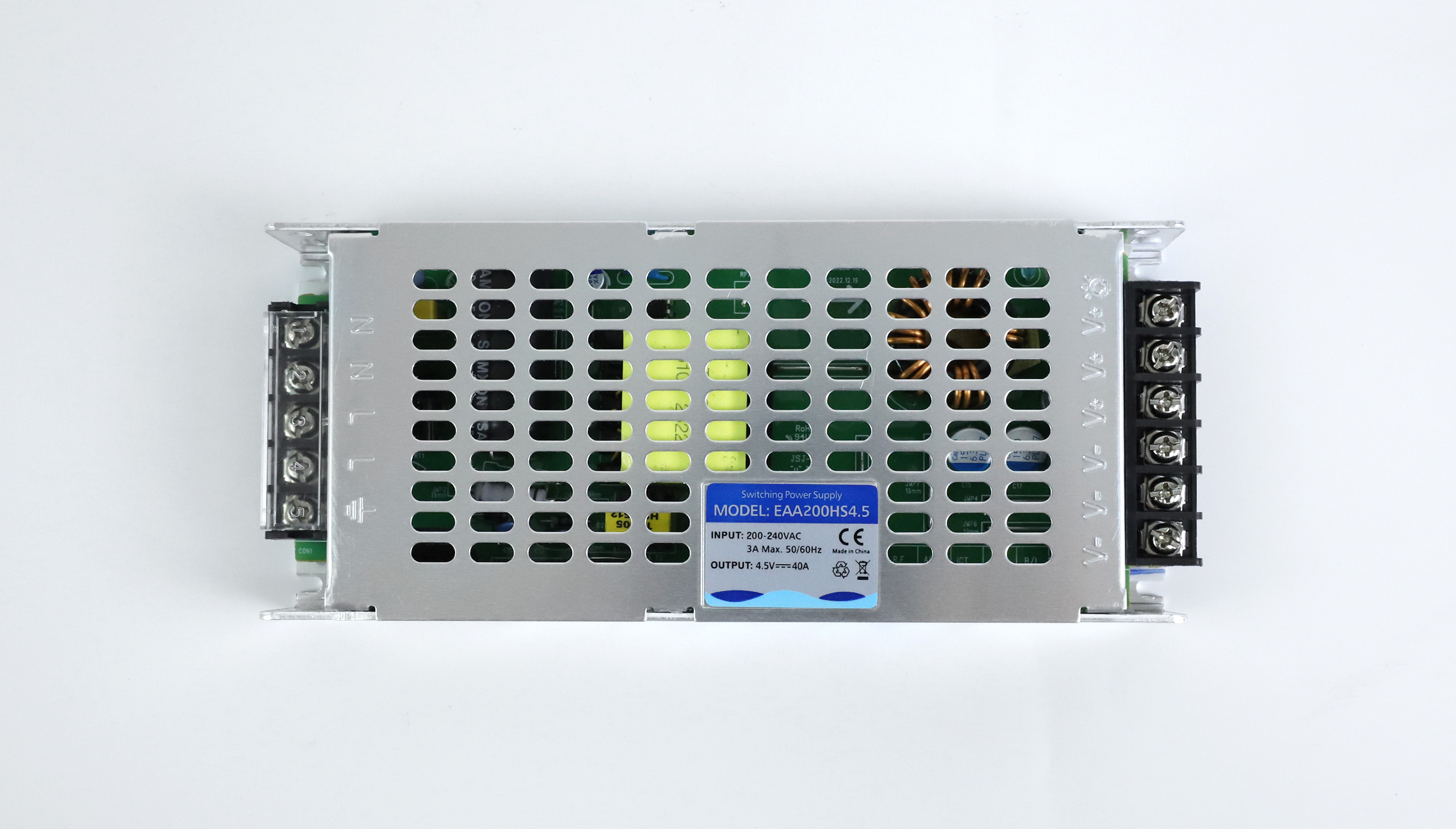

The first photo shows the EAA200HS4.5 model and electrical ratings on the unit label.
Original Reference Charts
These original charts are retained for reference. They were uploaded with EAA200HS5 image labels, and the input-current chart lists 4A while the EAA200HS4.5 product photo shows 3A maximum. Confirm the applicable specification revision for your unit before using the chart values for design or replacement selection.
Download the Specification
EagerLED-EAA200HS4.5-Power-supply-specification
Frequently Asked Questions
What is the output of the EAA200HS4.5?
The pictured EAA200HS4.5 label specifies 4.5V DC and 40A output. Check the label on your supplied unit before installation.
Does this power supply support 110V AC input?
The product label shown here specifies 200–240V AC, 50/60Hz. It does not confirm 110V AC operation; choose a model explicitly rated for your mains supply.
Can I replace an EAA200HS5 with an EAA200HS4.5?
Compatibility cannot be determined from the similar model names. The EAA200HS4.5 shown here is labeled 4.5V output. Compare the original unit’s output voltage and current, LED module requirements, connections and mounting before choosing a replacement.
Why do the reference charts and product label differ?
The retained charts carry older EAA200HS5 image labels, while the product photo identifies EAA200HS4.5. The visible input-current values also differ. Use the exact unit’s nameplate and confirm its matching specification revision with us.
