J400PV5.0A7: 5V LED Display Power
The G-Energy J400PV5.0A7 is listed as a 5.0V, 400W-max LED display power supply for 200–240Vac input. Its enclosure measures 220 × 47 × 26 mm and uses natural cooling. The input voltage and full model suffix are important checks when choosing a replacement for an existing cabinet.
Product Parameters
| Parameter | Specification |
|---|---|
| Output voltage | 5.0V |
| Maximum output power | 400W Max |
| Input | 200–240Vac, 47–63Hz |
| Leakage current | <1mA (Vin:230V) |
| Working temperature | -30°C to 70°C |
| Storage temperature | -40°C to 80°C |
| Cooling | Natural cooling |
| Power factor | 0.50@230Vac |
| Dimensions (L × W × H) | 220 × 47 × 26 mm |
| Insulation voltage | I/P–O/P: 3.0KVac; I/P–FG: 1.5KVac; O/P–FG: 0.5KVac |
| Listed safety standards | GB4943, EN60950 |
| Protection functions in this listing | Input undervoltage; overload; short circuit |
Before Ordering
Compare the existing unit’s label, LED module voltage and cabinet load with this model. The 26 mm enclosure height does not include the clearance needed for cables and installation. Confirm mounting-hole positions, terminal layout and the applicable temperature/load conditions before fitting it.
Protection details can differ between product revisions; confirm the supplied revision when a particular protection function is required. The listed standards do not establish a separate certification claim.
Frequently Asked Questions
Can I use the J400PV5.0A7 on a 110V supply?
The specified input is 200–240Vac at 47–63Hz. A 110V supply is outside that listed range.
What is its output voltage and maximum power?
This model is listed with a 5.0V output and 400W maximum output power. Select it only after checking the load and voltage requirements.
Will the J400PV5.0A7 fit a shallow cabinet?
The enclosure measures 220 × 47 × 26 mm. Compare all three dimensions, mounting holes and wiring clearance with your cabinet.
Does this model use natural cooling?
Yes. Natural cooling is the listed heat dissipation method. Follow the mounting and thermal requirements for the supplied unit.
Is J400PV5.0A7 the same as JPS400PV5.0A7?
These are different full model identifiers. Do not substitute one based on similar lettering; compare the exact input, output and installation requirements.
Conclusion
The J400PV5.0A7 is a 5V LED power option for installations matching its listed 200–240Vac input and cabinet dimensions. Contact us with the existing label for a replacement check, or browse our LED power supplies.

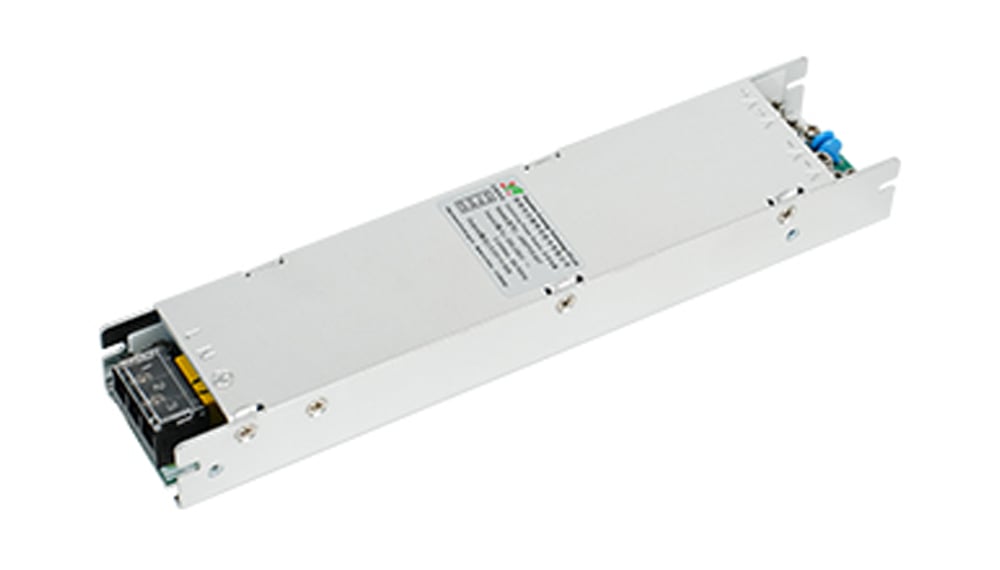

Product Image
