JPS200PV4.5-A1 power supply for LED displays
The G-Energy JPS200PV4.5-A1 is designed for LED display screens and has a listed maximum output power of 200W. Its 190 × 82 × 30 mm enclosure uses natural cooling. Use the complete model number when checking a replacement for an existing LED cabinet.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | JPS200PV4.5-A1 |
| Maximum output power | 200W Max |
| Input voltage and frequency | 100–240Vac, 47–63Hz |
| Leakage current | <1mA (Vin: 230V) |
| Working temperature | −30°C to 70°C |
| Storage temperature | −40°C to 80°C |
| Cooling method | Natural cooling |
| Dimensions (L × W × H) | 190 × 82 × 30 mm |
| Protection functions | Input undervoltage protection, input undervoltage recovery point, output current limiting protection, output short circuit protection |
Replacement and installation checks
Check the original unit’s label, required output voltage and current, terminal arrangement and mounting space before ordering. A 200W power rating by itself does not establish compatibility. If the existing model marking is unclear, send us the label and installation details for identification.

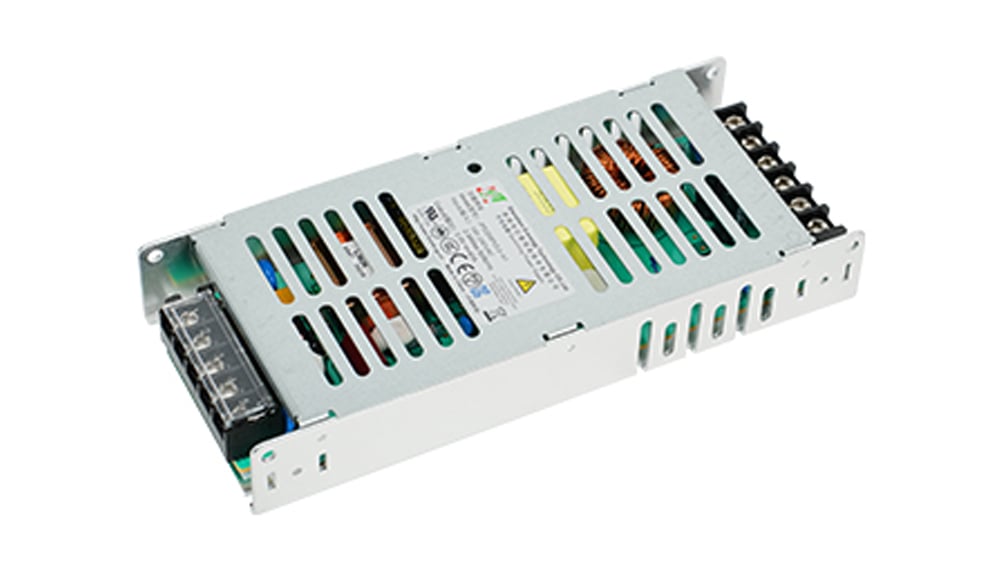

Product photo
Frequently Asked Questions
What is the maximum power of the JPS200PV4.5-A1?
The product specification lists 200W maximum output power. Check the supplied unit’s documentation for the operating conditions that apply to your installation.
What AC input does this model accept?
The listed input is 100–240Vac at 47–63Hz. Check the unit label before connecting the supply.
What are its dimensions?
The listed enclosure dimensions are 190 × 82 × 30 mm, in length × width × height order. Also check mounting holes, terminal access and ventilation space.
Does the JPS200PV4.5-A1 use natural cooling?
Yes. Natural cooling is specified, with a working temperature range of −30°C to 70°C.
Can it replace any 200W LED display power supply?
No. Match the required output, input range, connections and mounting arrangement as well as the power rating. Use the complete JPS200PV4.5-A1 model number when requesting a replacement.
