G-Energy JPS200PV5.0-M LED display power supply
The G-Energy JPS200PV5.0-M is a power supply for LED display screens, with a listed maximum output power of 200W and natural cooling. When selecting a replacement, match the complete model number and check the supplied unit’s label, electrical requirements and mounting dimensions.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | JPS200PV5.0-M |
| Maximum output power | 200W Max |
| Input voltage and frequency | 100–240Vac, 47–63Hz |
| Leakage current | <1mA (Vin: 230V) |
| Working temperature | −30°C to 50°C |
| Storage temperature | −40°C to 80°C |
| Cooling method | Natural cooling |
| Power factor | 0.95 at 230Vac |
| Dimensions (L × W × H) | 140 × 60 × 30 mm |
| Insulation voltage | I/P–O/P: 3.0KVac; I/P–FG: 1.5KVac; O/P–FG: 0.5KVac |
| Listed safety standards | GB4943, EN60950 |
| Protection functions | Input undervoltage protection, overload protection, short circuit protection |
Check before ordering a replacement
Compare the exact model marking, input supply, output requirements, terminal arrangement and mounting space with your existing installation. Maximum wattage alone does not establish compatibility. For help identifying a replacement, contact us with the original power supply label and installation details.

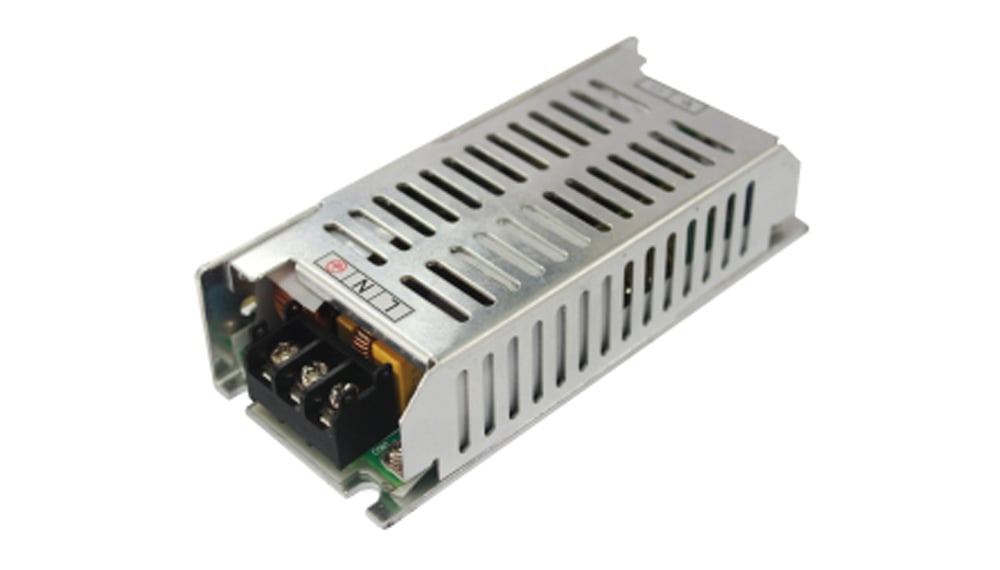

Product photo
Frequently Asked Questions
What is the JPS200PV5.0-M used for?
It is a power supply designed for LED display screens. Confirm the display’s electrical requirements and the full power supply model before selecting it.
What is the maximum output power?
The listed maximum output power is 200W. Check the supplied unit’s documentation for the operating conditions that apply to your installation.
How is this power supply cooled?
The listing specifies natural cooling. Keep the installation’s ventilation requirements in mind and check the instructions supplied with the unit.
Can I replace another 200W power supply with this model?
Matching wattage alone is not enough. Check the output voltage and current requirements, input supply, connections, dimensions and mounting arrangement before replacement.
Where can I see a photo or request model identification help?
The original product photo is retained above. Send the label and installation details through our contact page if you need help identifying the required model.
