JPS400PV5.0 LED Power Supply Overview
The G-Energy JPS400PV5.0 is a 5.0V power supply for LED displays with a listed maximum output of 400W. It accepts 100–240Vac at 47–63Hz and uses natural cooling. Its 235 × 60 × 35 ±0.5 mm enclosure should be checked against the available cabinet space before ordering.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | JPS400PV5.0 |
| Output voltage | 5.0V |
| Maximum output power | 400W Max |
| AC input | 100–240Vac, 47–63Hz |
| Leakage current | <1mA (Vin:230) |
| Working temperature | -30°C to 50°C |
| Storage temperature | -40°C to 80°C |
| Cooling | Natural cooling |
| Efficiency factor (original label) | 0.95@230Vac |
| Dimensions (L × W × H) | 235 × 60 × 35 ±0.5 mm |
| Insulation voltage | I/P–O/P: 3.0KVac; I/P–FG: 1.5KVac; O/P–FG: 0.5KVac |
| Listed safety standards | GB4943, EN60950 |
| Protection functions | Input undervoltage; overload protection (OLP); output short circuit; overtemperature protection |
Fit and Load Checks
Match the LED modules’ supply voltage and the cabinet’s electrical load before selecting a replacement. Check mounting-hole positions, terminal access and cooling space as well as enclosure dimensions. Use the instructions for the supplied unit to determine allowable output under the installation conditions.
The listed standards are retained from the product information; they do not establish a separate certification claim. The factor above should not be interpreted as a confirmed conversion-efficiency percentage.
Frequently Asked Questions
What output does the JPS400PV5.0 provide?
The product information lists a 5.0V output and 400W maximum output power. Confirm the module voltage and load requirements when choosing the unit.
What mains input is specified?
The listed input is 100–240Vac at 47–63Hz. Check the supplied unit’s markings before installation.
How large is this power supply?
Its listed dimensions are 235 × 60 × 35 ±0.5 mm (length × width × height). Allow additional space for wiring and installation access.
Which protection functions are listed?
The product information lists input undervoltage, overload, output short-circuit and overtemperature protection. Protection thresholds are not specified here.
Can it replace any 400W LED power supply?
Replacement compatibility also depends on output voltage, mounting, terminals and operating conditions. Match the full model number and cabinet requirements rather than wattage alone.
Conclusion
The JPS400PV5.0 is a listed 5V, 400W-max LED display power supply. For help checking cabinet fit or a replacement label, contact us; alternative models are listed under LED power supplies.

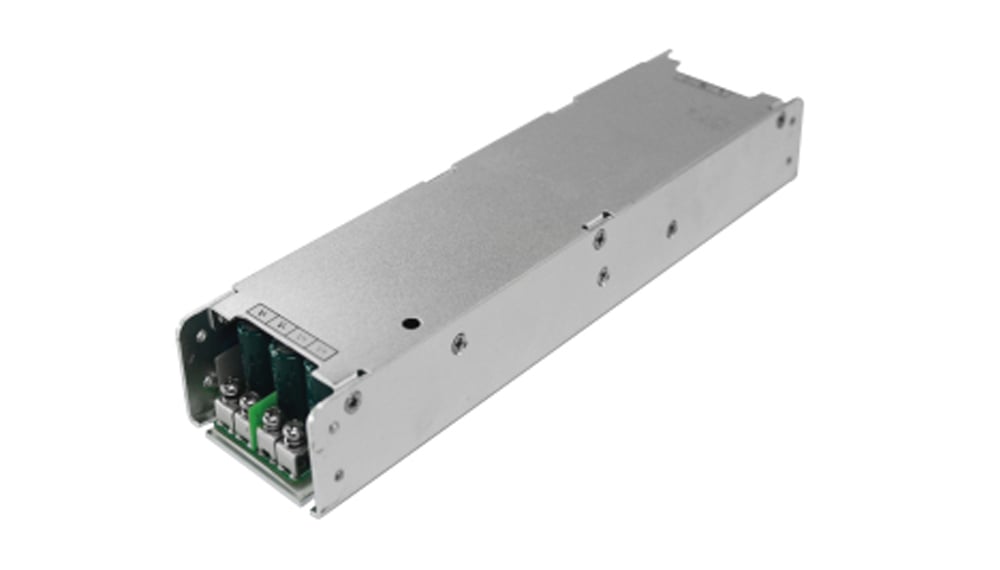

Product Image
