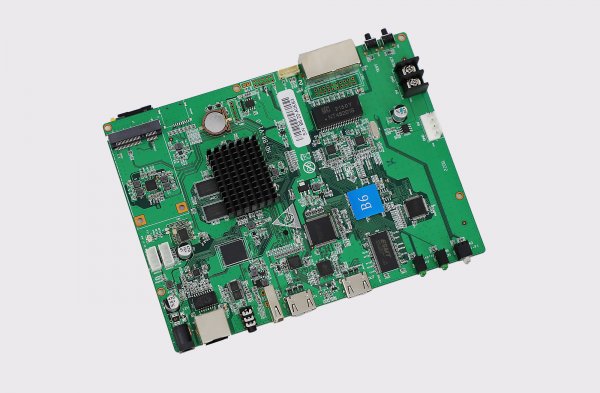

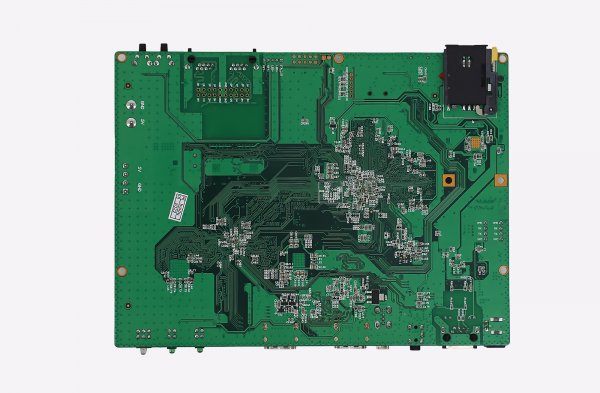

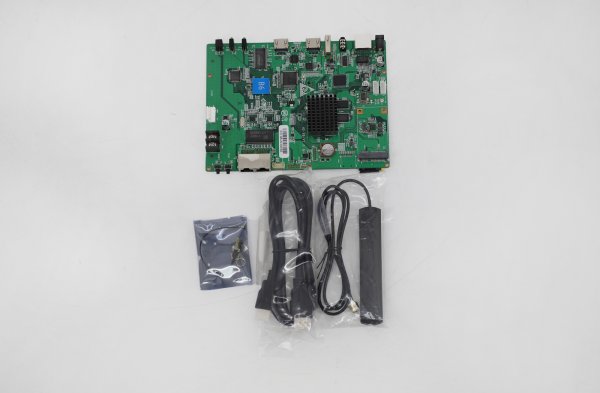

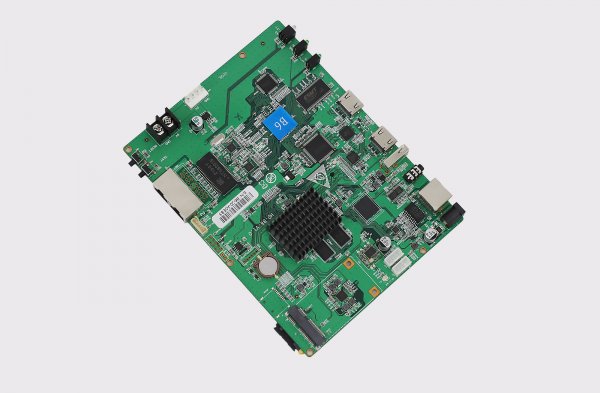

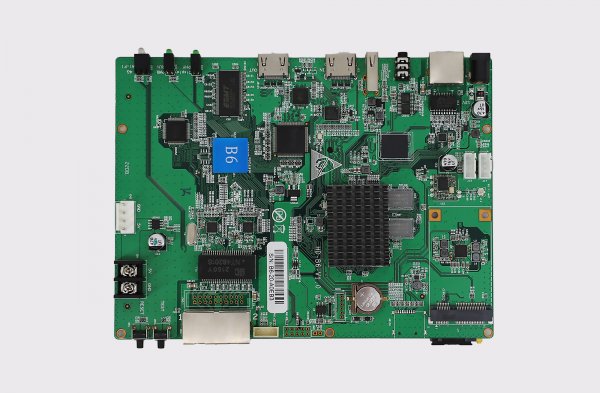

HD-B6 is a four in one player integrating synchronous playback,asynchronous playback and video zooming of U-disk playback box. A card supports 1.3 million pixel points, 8GB on-board storage space, Wi-Fi module as standard, support HDMI splicing display.
Features of HUIDU HD-B6 Advertising Machine Special Controller
1. Support HDMI splicing control, splicing supports up to 2.3 million pixels
2. Support HDMI signal input, synchronous playback
3. Onboard 8GB storage, support U disk to expand storage space
4. Support HD video hard decoding, 60Hz frame rate output
5. Onboard Wi-Fi module, support mobile APP update content
6. Independent play, each advertising machine plays independently without interfering with each other
7. Splicing and playback, through HDMI connection, no special settings are required, multiple advertising machines are automatically spliced
Parameters of HUIDU HD-B6 Advertising Machine Special Controller
| Features | Parameters |
| Module Type | Compatible with indoor and outdoor full color and single color module
Support conventional chip and mainstream PWM chip |
| Scan Mode | Static to 1/64 scan mode |
| Control Range | One B6 control range: 1.3 million pixel, widest 3840, highest 2048;
HDMI multiple B6 splicing control range: 2.3 million pixel, widest 3840, highest 4096. |
| Gray Scale | 256-65536 (adjustable) |
| Basic Functions | Video, Pictures, Gif, Text, Office, Clocks, Timing, etc.
Remote, Temperature, Humidity, Brightness, PM Value, etc. Support Synchronized picture auto-zooming, Playing live screen without video processor. |
| Video Format | HD video hard decoding, 60Hz frame rate output.
AVI, WMV, RMVB, MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM, etc. |
| Image Format | Support BMP, GIF, JPG, JPEG, PNG, PBM, PGM, PPM, XPM, XBM, etc. |
| Text | Text editing, Image, Word, Txt, Rtf, Html, etc. |
| Document | DOC, DOCX, XLSX, XLS, PPT, PPTX, etc.
Office2007 Document format |
| Time | Classic Analog Clock, digital clock and various of clock with image background |
| Audio output | Double track stereo audio output |
| Memory | 8GB Flash Memory, Expanding memory by U-disk |
| Communication | 100M/1000M RJ45 Ethernet, Wi-Fi, 3G/4G, LAN, USB |
| Working Temp | -40℃-80℃ |
| Port | IN：12V Power Adapter*1, 1Gbps RJ45*1, USB 2.0*1, Test Button*1, GPS, 4G(Optional), Sensor port*1, HDMI*1
OUT：1Gbps RJ45*1，AUDIO*1，HDMI*1 |
| Power | 18W |
Download Specification
HUIDU HD-B6 Advertising Machine Special Controller Specification
