Huidu HD-B8L LED Poster Screen Controller
The Huidu HD-B8L is a multimedia controller for LED poster displays. It combines local content playback with HDMI input for synchronous video and HDMI LOOP connections for multi-screen splicing. Use it for a single poster, a group of synchronized screens, or a larger composite display after confirming the receiving cards and pixel layout.
Key capabilities
- 1.3 million pixels per card: Huidu lists a single-card loading capacity of 1.3 million pixels. HDMI LOOP splicing can reach 5.24 million pixels in a properly configured system; this is a system limit, not the capacity of one card.
- Flexible poster layouts: HDMI splicing supports displays arranged as one picture, while creative layouts can place screens of different resolutions in different orientations.
- Multiple playback modes: Run locally prepared content, feed a live HDMI signal, synchronize screens, or manage a cluster over the Internet.
- Content and control: The controller supports video, pictures, text, clocks, tables and other signage programs. Built-in Wi-Fi enables wireless content updates; USB provides another way to update or play programs.
HD-B8L specifications at a glance
| Item | HD-B8L |
|---|---|
| Single-card LED loading | Up to 1.3 million pixels |
| HDMI LOOP splicing | Up to 5.24 million pixels across the configured system |
| Maximum width | 65,536 pixels, subject to total loading and system configuration |
| Video decoding | 2 × 4K, 6 × 1080p, 10 × 720p or 20 × 360p streams (manufacturer specification) |
| Internal storage | 64 GB |
| Management | Wi-Fi, USB and Internet cloud management |
Capacity note: 4K video decoding describes supported media playback. It does not mean one HD-B8L can drive a 4K LED canvas; check the 1.3 million-pixel single-card limit and the complete spliced layout separately.
How to choose the right setup
For one LED poster, calculate width × height in pixels and keep the result within the single-card loading limit. For a composite image across multiple posters, plan the HDMI LOOP connections, receiving cards and screen mapping around the spliced-system limit. Confirm the intended HDMI source, control network and content-update method before installation.
Frequently asked questions
Can the HD-B8L play without a computer connected all the time?
Yes. It can play locally prepared programs. An HDMI source is used when synchronous input is required.
Is 5.24 million pixels the capacity of one card?
No. Huidu specifies 1.3 million pixels for one HD-B8L card and up to 5.24 million pixels for an HDMI LOOP spliced system.
Can it manage several LED poster screens?
Yes. Huidu describes independent display, synchronized display and HDMI-spliced arrangements. The final configuration depends on screen resolution, receiving cards and wiring.

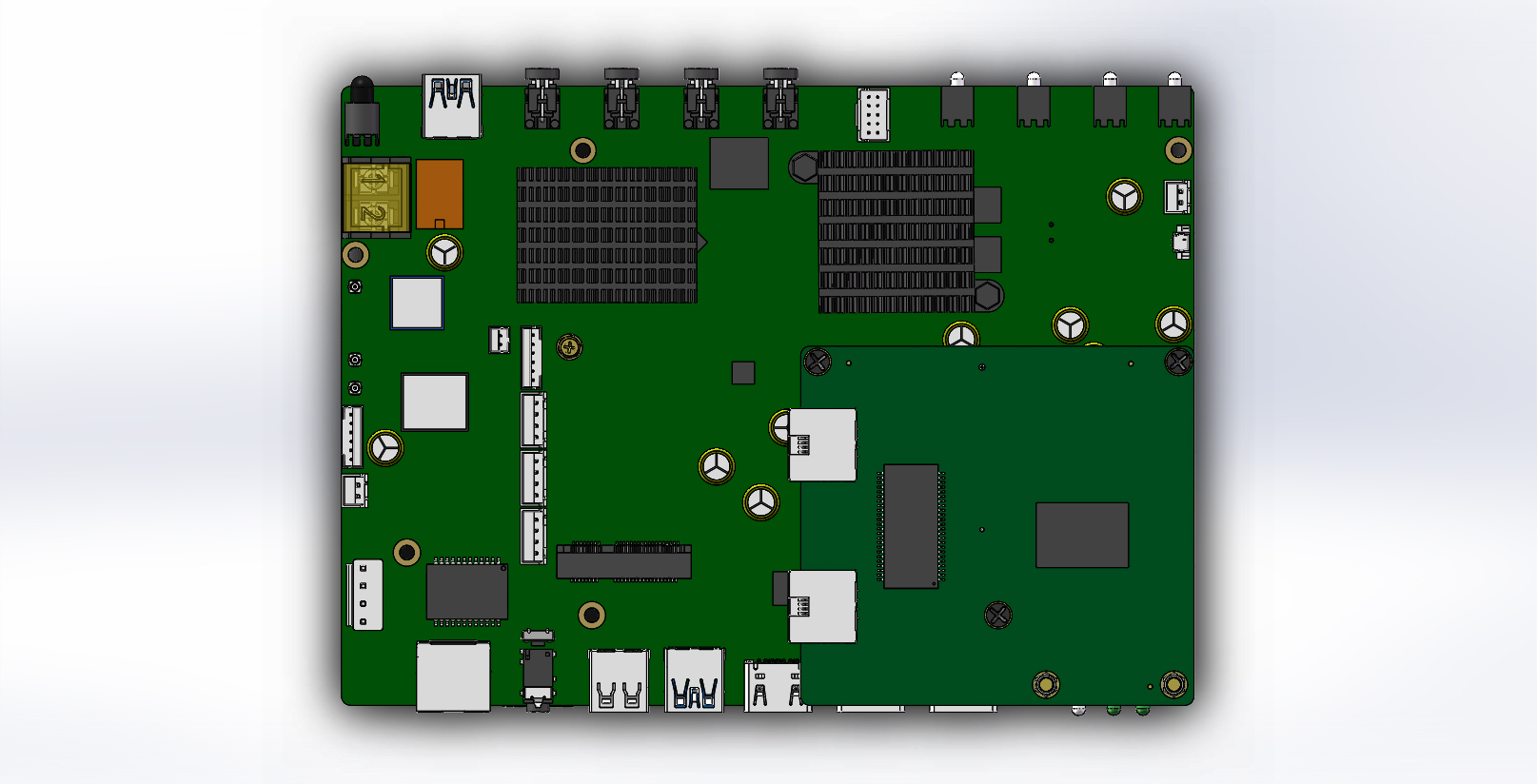

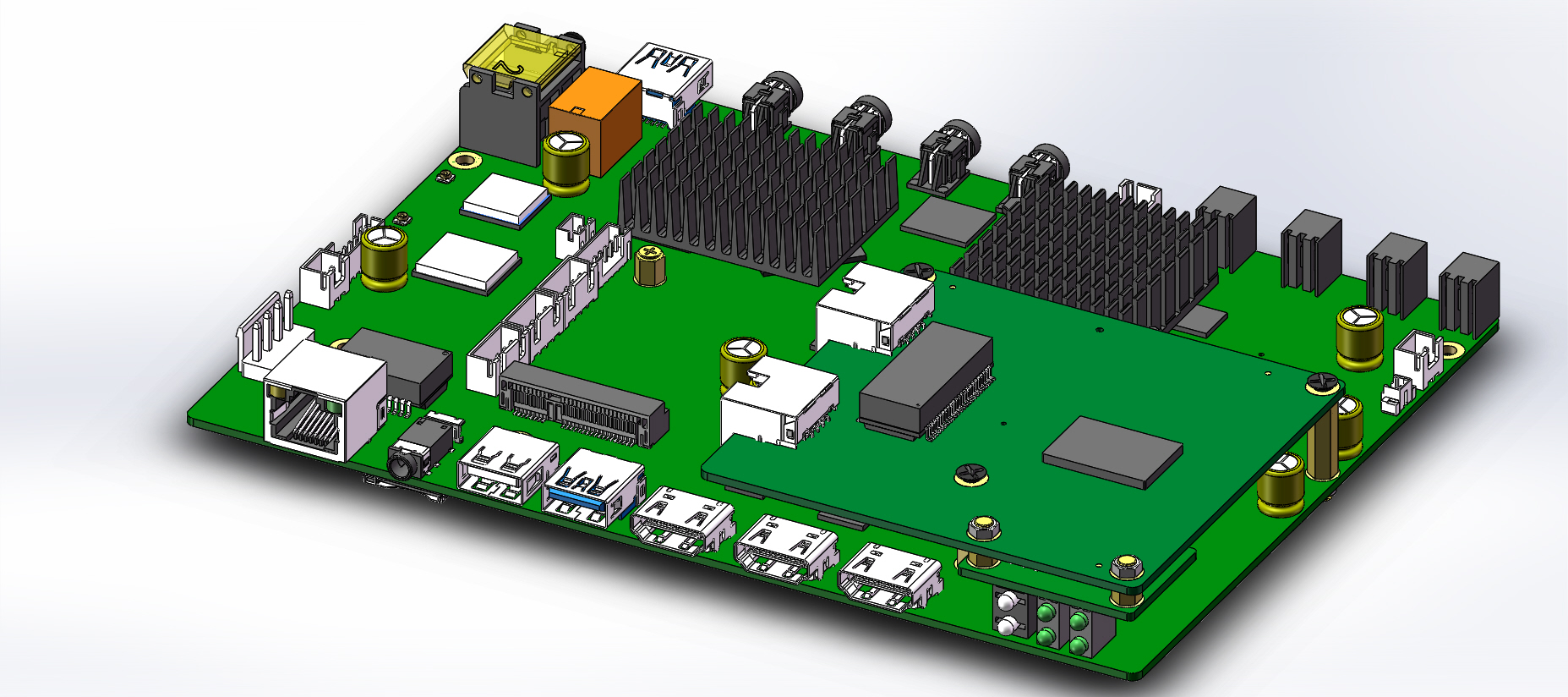

Documentation and product images
See the Huidu HD-B8L manufacturer product page for model-specific capacity and feature information. For help checking a screen layout, contact our team with your cabinet pixel dimensions and planned number of displays.
Download Specification:
Huidu HD-B8L LED Display Screen Control Card Specification
