Kystar KP2H Pandora LED media player
The Kystar KP2H plays stored multimedia programs and sends image data to compatible LED receiving cards. Its maximum LED load is 1.3 million pixels. Four physical Gigabit outputs provide two primary and two backup connections, rather than four independent full-capacity screen outputs.
HDMI input/output and local playback make it useful for shop-front signs, LED mirror displays and light-pole advertising screens. Select the actual pixel map, receiving cards and display mode before ordering.
KP2H specifications and primary/backup outputs
| Specification | Details |
|---|---|
| LED output connectors | 4 × Gigabit Ethernet: 2 primary and 2 backup |
| Maximum total LED load | 1,300,000 pixels |
| Per-primary-output load | Up to 650,000 pixels |
| Canvas dimensions | Maximum width 3840 pixels or height 2000 pixels, within the total pixel budget |
| Video input/output | HDMI 1.3 input and HDMI 1.3 output |
| Local video decoding | 1080p at 60 fps hardware decoding specified in the datasheet |
| Storage | 8GB installed; approximately 5GB user space in the documented version |
| Program communication | WiFi AP/STA, wired-network input and 2 × USB 2.0 |
| Audio and expansion | 3.5mm audio; compatible brightness/temperature sensors and relay interfaces |
| Power and optional connectivity | DC 5V / 4A; 4G and GPS options require the appropriate hardware |
A practical pixel-budget example
A 1600 × 800 LED screen contains 1,280,000 pixels, below the 1.3-million total. Two equal 800 × 800 partitions contain 640,000 pixels each, below the stated 650,000-pixel per-primary-output limit. This is a planning calculation; verify the receiving-card configuration, refresh rate and cabinet wiring for the actual project.
The backup connections protect the corresponding display-data paths and do not increase that pixel budget. Similarly, a maximum width of 3840 and height of 2000 does not mean a 3840 × 2000 canvas is supported.
Kystar PE editing and program updates
Use compatible Kystar PE software to prepare supported video, picture, text and audio programs for the screen’s dimensions. Select a network or USB update method supported by the player and the installed software version. A compatible Pandora app provides supported mobile management and editing functions.
WiFi AP mode can provide a local hotspot connection, while STA mode connects to a suitable router. The dedicated network input is for LAN access; the Gigabit LED output ports serve the receiving-card chain. Stored programs can play without keeping an editing computer connected.
HDMI and optional control functions
HDMI input supports an external signal workflow, and HDMI output can connect to a compatible downstream device. Confirm the required live-signal or stored-media mode, source format and scaling configuration.
Brightness/temperature sensors and relay-control equipment require compatible accessories and wiring. 4G and GPS are optional configurations, so confirm the supplied hardware and any network service required for remote deployment.
Frequently asked questions
Why does KP2H have four output ports but only a 1.3-million-pixel load?
The specification assigns two ports as primary and two as backup. Count capacity against the primary outputs and the 1.3-million total, rather than multiplying all four sockets by 650,000.
Can it drive a 1920 × 1080 LED canvas?
That canvas contains 2,073,600 pixels, which exceeds the KP2H’s stated LED loading limit. The separate Kystar KP4H has a 2.35-million-pixel specification; confirm its complete configuration before selecting it.
Does 1080p media decoding increase the LED output capacity?
No. Decoding resolution, scaling and physical LED loading are separate limits. Plan the screen within 1.3 million pixels regardless of the video file’s resolution.
Where should I obtain Kystar PE and firmware?
Use the Kystar manufacturer’s software/download resources and match the software or firmware to the KP2H hardware revision. Preserve the existing configuration before changing firmware.
Conclusion
KP2H suits LED signage within a 1.3-million-pixel budget that needs local playback, HDMI connectivity and paired backup outputs. Confirm the cabinet partition, receiving cards, program-update method and optional accessories for the installation.

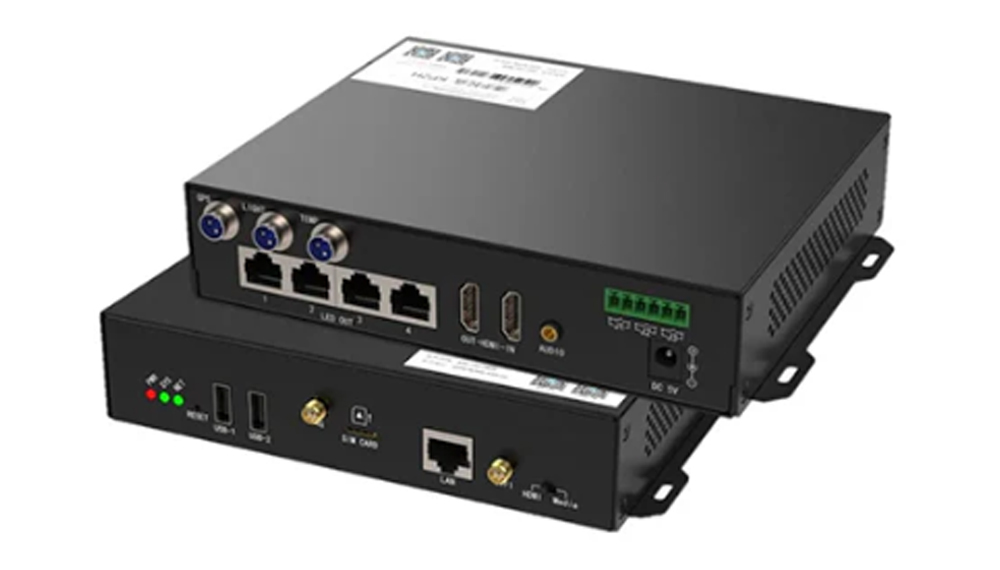

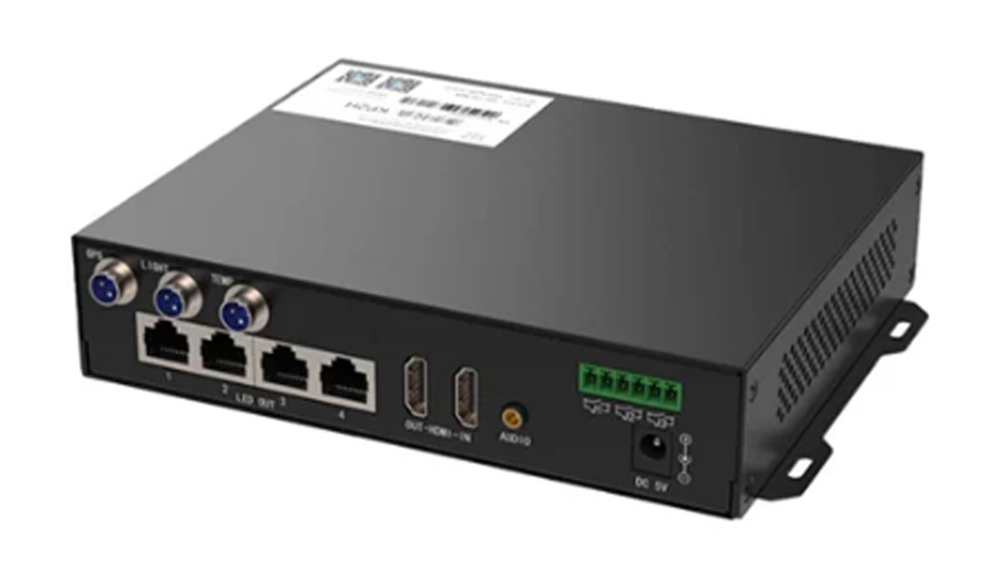

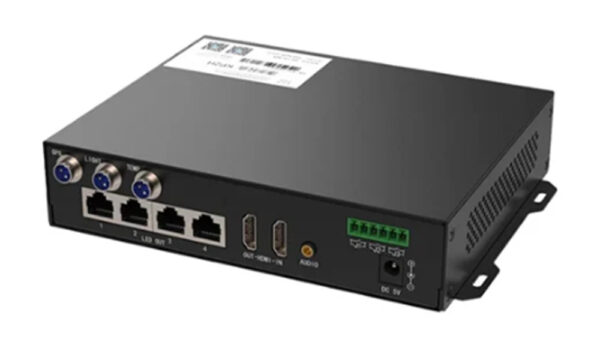

Product images and manufacturer specification
