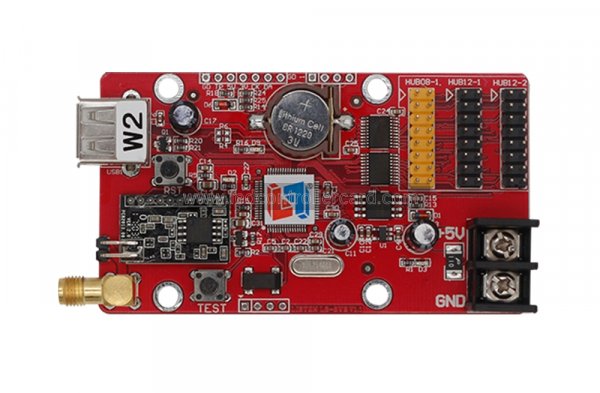

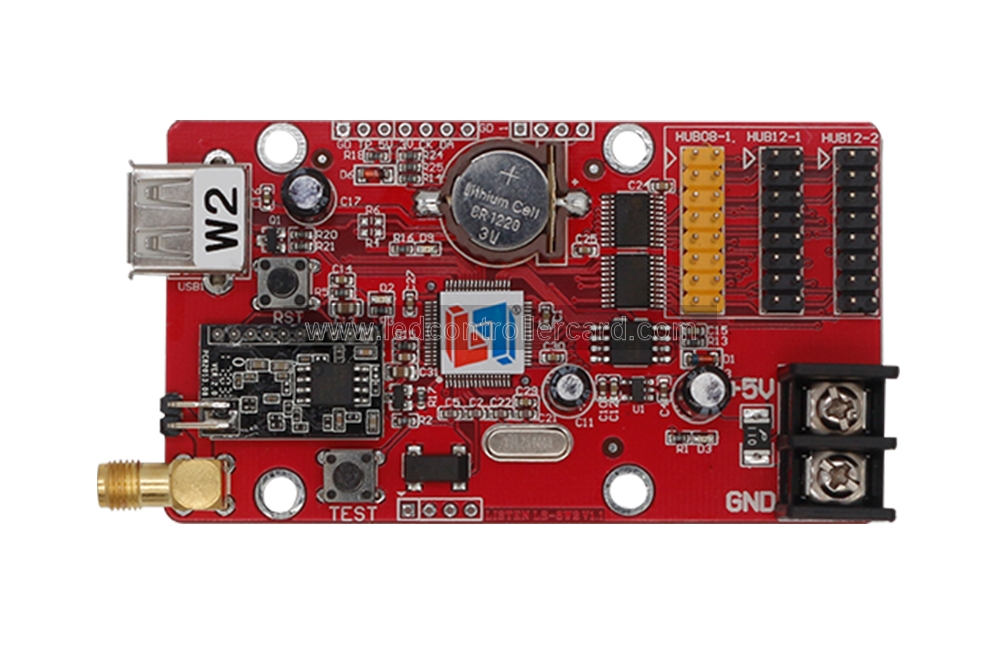

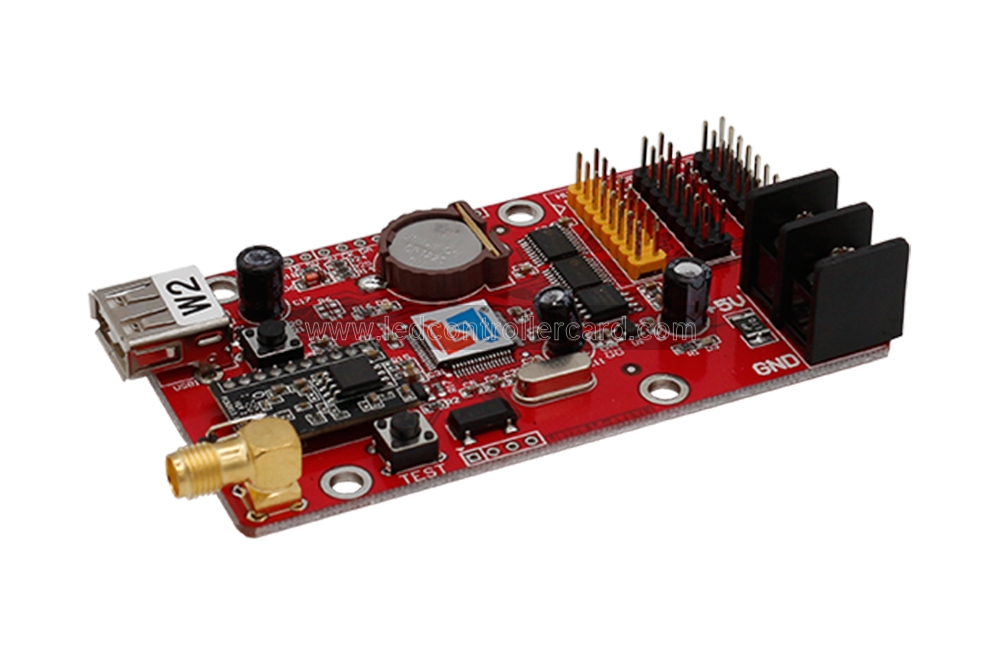

W2-WIFI LED sign controller
The Listen Vision W2 Wi-Fi card supports graphic, text, animation and clock regions on compatible LED signs. It offers cluster management, multilingual operation and USB parameter readback for setup and maintenance.
| Parameter | Details |
|---|---|
| Model | W2-WIFI |
| Single-color layouts | 2048 × 16; 1024 × 32 |
| Dual-color layouts | 1024 × 16; 512 × 32 |
| Memory | 2MB |
| Programs / areas | 128 programs; 16 areas per program |
| Communication | Wi-Fi and USB |
| Display ports | 1 × HUB08; 2 × HUB12 |
| Clock display | Digital clock, analog clock, count-up and countdown |
| Sensor | Temperature sensor |
| Brightness | 16 levels; automatic or software adjustment |
| Power switching | Scheduled or software on/off |
| Operating voltage | 5 V |
| Power | Less than 1 W |
| Operating temperature | −40°C to 85°C |
| Software | LED Player 6.0 and app support |
| Secondary development | DLL |
Plan the sign layout
For a 32-pixel-high display, the listed width is 1024 pixels in single color or 512 pixels in dual color. Select the layout for the actual module color and wiring. The software supports program and area borders, custom startup logos, separate preview and automatic region alignment. Confirm the appropriate sensor and app version for the supplied card.
Frequently asked questions
Does the W2-WIFI support USB updates as well as Wi-Fi?
Yes. Both Wi-Fi and USB are listed communication methods.
Which module connections does it have?
The W2-WIFI has one HUB08 interface and two HUB12 interfaces.
What power supply voltage does it need?
The listed operating voltage is 5 V, with power below 1 W.
Which software is listed for this card?
LED Player 6.0 and app support are listed. Confirm the app version for your controller before setup.
What is the dual-color loading range?
The listed dual-color layouts are 1024 × 16 or 512 × 32 pixels. Single-color layouts have different limits.
