The Magnimage LED-750H is an LED wall video processor for two-screen mosaic layouts. It supports horizontal or vertical splicing, including screens of different sizes, with EDID management and custom output resolutions.
LED-750H Specifications
| Parameter | Specification |
|---|---|
| Processing capacity | 4,600,000 pixels |
| DVI output connectors | 4 connectors in 2 output groups |
| Standard inputs | 2 × DVI, 2 × HDMI, 1 × DP |
| Standard DP formats | 3840 × 1080 at 60 Hz; 3840 × 2160 at 30 Hz |
| Input expansion | 2 × 2K inputs or 1 × 4K input, depending on modules |
| Non-mosaic layout | 4 layers per output; adjustable size and position |
| Preview switching | Between 1 image and 3 images |
| Power supply | 100–240 V AC, 50/60 Hz |
| Power consumption | 55 W |
| Operating temperature | 0–45 °C |
| Dimensions | 482.6 × 452 × 66.75 mm |
| Net weight | 2.6 kg |
Layout and Input Planning
Choose the expansion option to match the source: the listed options include VGA, DVI or SDI for 2K inputs, or DP 1.1/HDMI 1.4 for a 4K input. Input capacity depends on the installed modules. The output A/B connections belong to two groups, rather than four independent displays.
Rotation, logo storage, cropping, freezing and preset recall support presentation setup. Multiple units can be cascaded for wide displays. Computer control, time/task functions and testing tools are also available.
Frequently Asked Questions
Can LED-750H splice two screens?
Yes. It supports horizontal, vertical, same-size and different-size two-screen mosaic layouts.
Are its four DVI connectors four independent outputs?
No. They form two output groups; the manual identifies a backup connection within each group.
Does it support four layers?
Yes, in non-mosaic mode each output supports four layers with adjustable size and position.
Does the standard DP input accept 4K at 60 Hz?
The listed standard DP formats are 3840 × 1080 at 60 Hz and 3840 × 2160 at 30 Hz. Do not substitute a 4K60 requirement for these formats.
Can the input connections be expanded?
Yes. Confirm the required 2K or 4K module option before ordering.

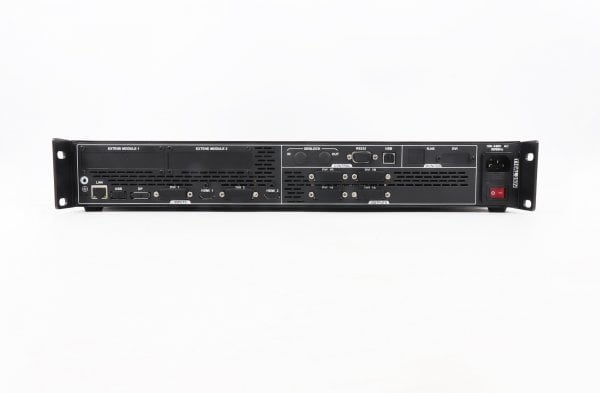

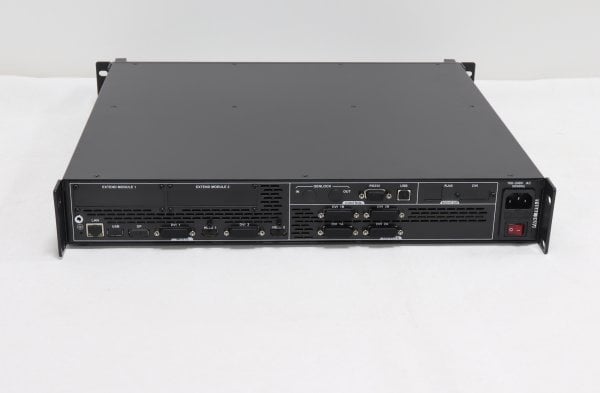

Product Images and Downloads
