The Magnimage LED-760H video processor supports four-screen splicing and four independent outputs. Use it to build a combined LED video wall or to show different content on separate screens.
LED-760H Parameters and Capabilities
| Parameter | Specification |
|---|---|
| Main outputs | 4 independent outputs |
| Screen splicing | Up to 4 screens from one processor |
| Input capacity | Up to 8 inputs; confirm required extended modules |
| Source interfaces listed | DP, DVI, HDMI, VGA and SDI |
| Non-splicing layers | 4 independent pictures per output port |
| Resolution setup | Custom input and output resolutions |
| Image orientation | Rotation, vertical flip and horizontal flip |
| Expansion | Multi-machine cascading |
Spliced Walls or Independent Screens
Arrange screens horizontally or vertically, including screens of different sizes. The processor supports multiple-input pixel-to-pixel splicing and enlargement of a single input. In independent-output use, input sources can be switched to different outputs without a black-screen interruption.
In non-splicing mode, each output can display four pictures with adjustable sources, sizes and positions. Multiple LED-760H units can be cascaded for wider layouts, with one processor acting as the controller or with a video server graphics-card arrangement.
Frequently Asked Questions
Can one LED-760H control four screens?
Yes. It supports four-screen splicing or four independent outputs with separate content.
Does four-layer output apply in every mode?
The published four-picture-per-port feature applies to non-splicing mode.
Can the output image be rotated?
Yes. The four main outputs support splicing after rotation, plus vertical and horizontal image reversal.
Does the unit include all eight inputs as standard?
The product states a maximum of eight inputs and separately offers extended input modules. Confirm the supplied configuration when requesting a quotation.
Can several LED-760H units be cascaded?
Yes. Multi-machine cascading is supported for wider spliced layouts.

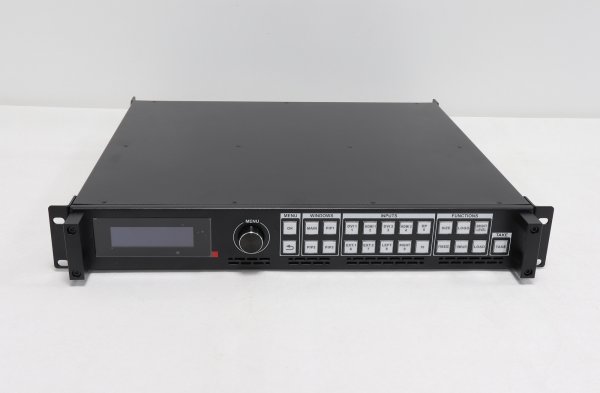

Product Images and PDF Specification
