The Magnimage LED-W2000 is a video processor for LED wall splicing and multi-layer presentations. It provides mosaic and backup operating modes, with tools for cropping, zooming, rotating and freezing images.
LED-W2000 Specifications
| Parameter | Specification |
|---|---|
| Layers | 4 |
| Standard input connectors | 4 × DVI, 3 × HDMI, 4 × DP, 1 × SDI |
| Standard input arrangement | 4 groups; select one of 3 connectors in each group |
| Standard input formats | SDI: 3G SDI, 1080p/i and below; HDMI, DVI and DP: EDID within 4K × 1K at 60 Hz |
| Expansion inputs | Supports 2 groups of 4K input modules; each module offers DP 1.2 and HDMI 2.0, selecting one input at a time |
| DVI output arrangement | 4 groups, each with 2 duplicated DVI outputs; 8 connectors total |
| Mosaic mode | 4K × 2K at 60 Hz pixel-to-pixel input/output display |
| Backup mode | Input signal hot backup and seamless switching |
| Output setup | Custom output resolution; input tile function |
Configuration and Operation
Check whether the required expansion modules are included before planning 4K × 2K at 60 Hz input. Eight DVI connectors should not be treated as eight independent output groups.
The unit supports touch-screen and software control, USB upgrades, timed tasks, presets, EDID management and HDCP. Built-in test patterns, logo display and brightness adjustment assist setup. Multi-machine cascade switching is also listed.
Frequently Asked Questions
Does every input on LED-W2000 support 4K60?
No. The standard-input specification and the 4K expansion-module specification are different. Confirm the selected module and source format before ordering.
Are all eight DVI outputs independent?
The eight DVI connectors are arranged as four groups, with two duplicated DVI outputs in each group.
How many layers does it support?
LED-W2000 supports four layers, with zoom, rotation, cropping and image freeze functions.
Can it switch to a backup input?
Yes. Backup mode supports input signal hot backup and seamless switching.
Can I save layouts and control it from software?
Yes. Preset saving and loading, software control and touch-screen control are listed functions.

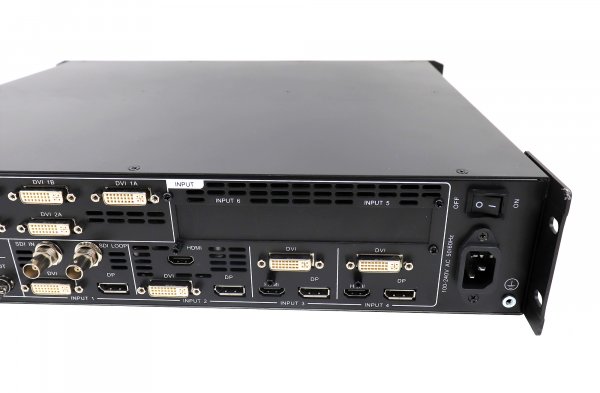

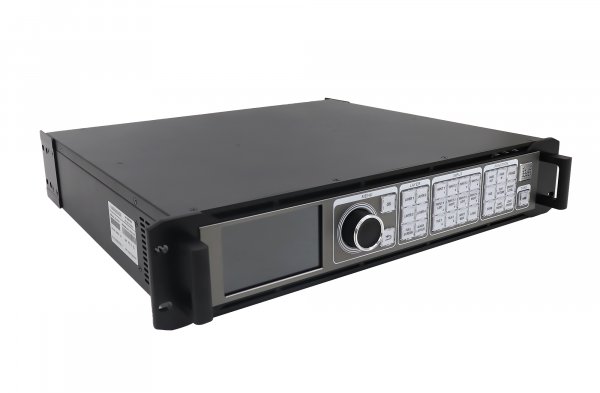

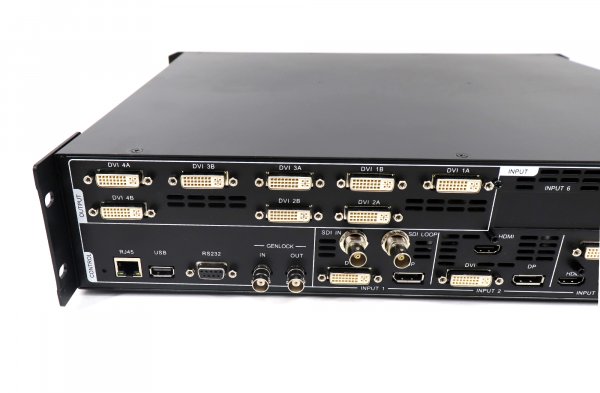

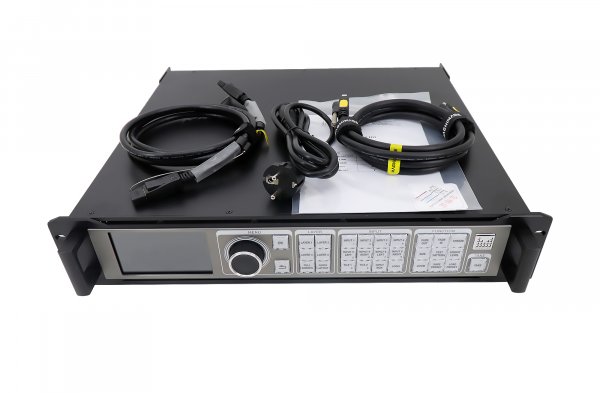

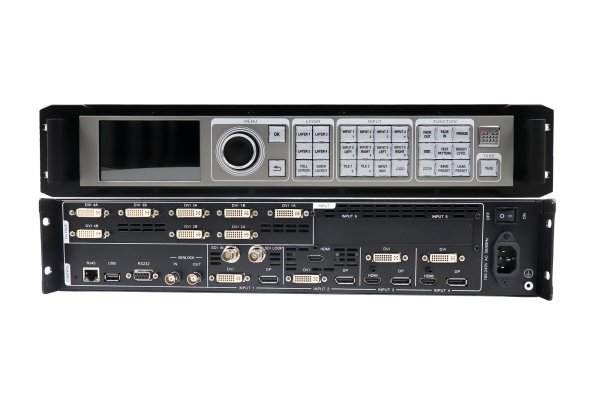

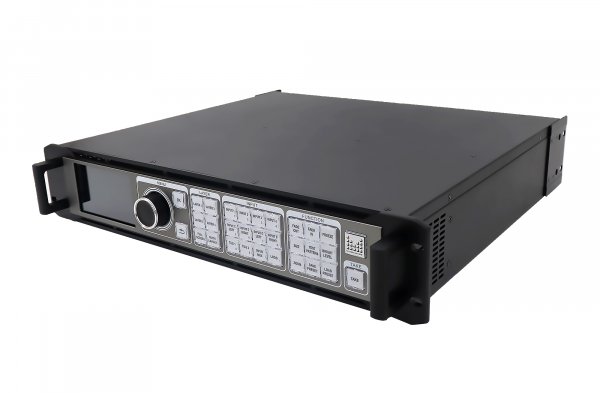

Product Images and PDF Specification
