The Magnimage MIG-CL9600 is a video processor for multi-layer LED wall layouts and projector splicing. It combines real-time processing with adjustable windows, source monitoring and seamless switching for managing complex display presentations.
MIG-CL9600 Specifications and Functions
| Parameter | Specification |
|---|---|
| Architecture | FPGA hardware processing |
| Input formats | 4K × 2K / 8K × 1K at 60 Hz |
| Processing | 24-bit RGB; 60 Hz real-time processing |
| Layers | 6 independent layers per output |
| Multiview preview | 9 windows per output in multipreview mode |
| Input management | EDID management; HDCP 1.4 and 2.2 support |
| Output features | Custom output resolution; SDI output support |
| Backup | Dual power-supply backup |
Layer Layouts and Live Monitoring
Resize and reposition windows, group layers and use full-screen roaming to arrange content. The processor supports scaling beyond 8×, splicing LED walls of different pixel pitches, layer fades, captions and labels. Four background pictures can be captured.
Input/output monitoring, operation monitoring and IP monitoring support system supervision. Projector applications can use edge blending. Confirm the installed input/output configuration before ordering; this feature list does not establish the number of physical connectors on a supplied unit.
Frequently Asked Questions
Does MIG-CL9600 support 4K input at 60 Hz?
The published input formats include 4K × 2K and 8K × 1K at 60 Hz.
How many layers are available per output?
The product lists six independent layers per output. The nine-window figure refers separately to multipreview output.
Can I change the size and position of windows?
Yes. Window resizing, positioning, layer grouping and full-screen roaming are supported.
Can it be used for projector edge blending?
Yes. Projector edge-blending splicing is included in the listed functions.
Does it provide monitoring and power backup?
The listed functions include input/output monitoring, real-time operation and IP monitoring, plus dual power-supply backup.

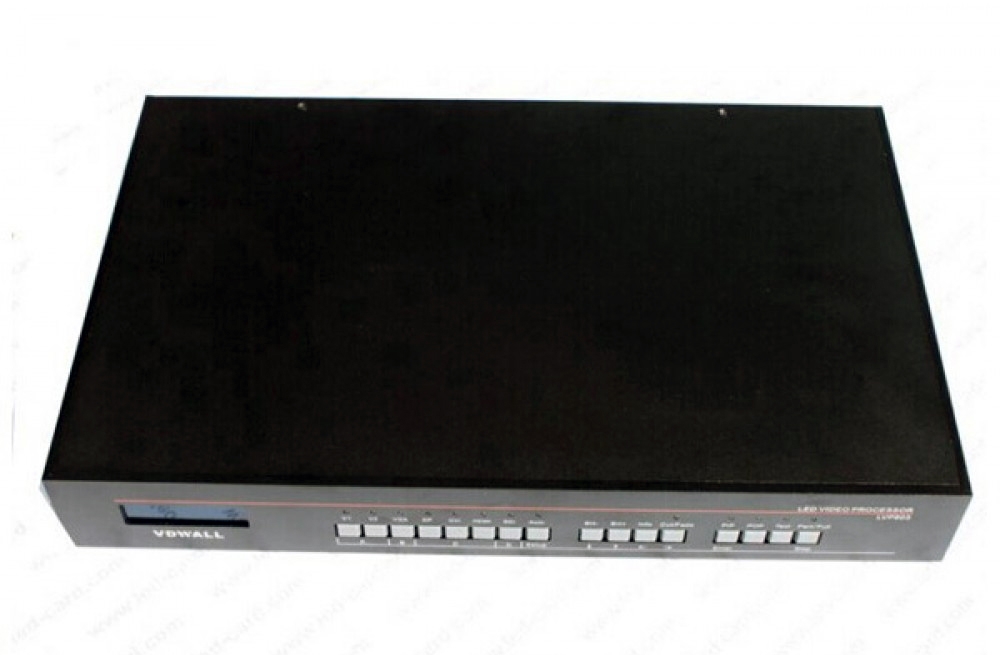

Product Images and Specification Download
