Mooncell L708, L712 and L716 receiving-card selection
This listing covers three LED receiving-card models. Choose the exact model for your cabinet, then check its connector arrangement, loading limits and configuration requirements. Series membership alone does not establish interchangeability.
Product parameters and model scope
The numerical L716 values below follow its linked V3.3 specification. L708 and L712 limits are not inferred from L716 or from the former combined description.
| Parameter | Specification |
|---|---|
| Product models | Mooncell L708, L712 and L716 |

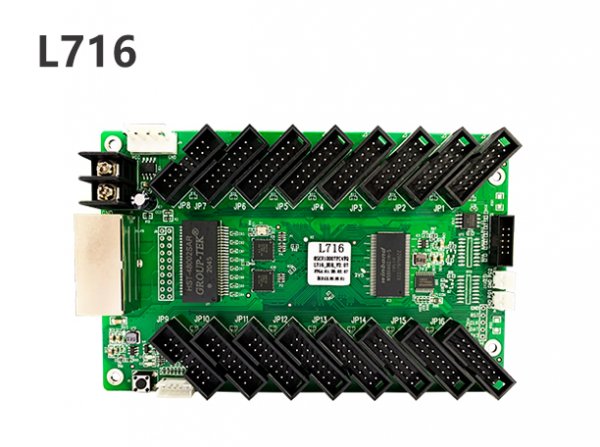

| L716 module interfaces | 16 standard HUB75E interfaces |
| L716 parallel data | Up to 32 RGB groups |
| L716 maximum loading | 768 × 256 pixels |
| L716 brightness-calibrated loading | 768 × 256 pixels |
| L716 chroma-calibrated loading | 512 × 160 pixels |
| L716 supported scanning | 1–64 scan |
| L716 specification version | V3.3, 30 December 2021 |
| L708 / L712 numerical limits | Confirm against the exact model specification and hardware revision |
| Listed configuration features | Complex cabinet layouts, 90°-increment rotation, output-data customization and configuration readback |
Configuration and cabinet compatibility
The listed setup functions include complex cabinet layouts, rotation in 90° increments, point-by-point brightness and chroma correction, data-interface customization and configuration readback. For replacement work, match the card marking and connector pinout before restoring configuration data.
Frequently Asked Questions
Do L708, L712 and L716 all have 12 HUB75E interfaces?
No. The linked L716 specification identifies 16 HUB75E interfaces. Interface count must be checked by model; the former series-wide 12-interface description should not be used to select all three cards.
What is the L716 maximum loading resolution?
The linked V3.3 document specifies 768 × 256 pixels for maximum and brightness-calibrated loading, and 512 × 160 pixels with chroma calibration. These values apply to L716.
Can I use L716 specifications to choose an L708 or L712?
No. Check the exact L708 or L712 document, hardware label, module driver and connector pinout. This page keeps all three original specification links so each model can be checked separately.
Which setup functions are listed for this receiving-card series?
The listing describes complex cabinet and screen layouts, image rotation in 90° increments, brightness and chroma correction, editable data interfaces and configuration readback. Verify the required function for the selected hardware.
How can I check the receiving-card connection during setup?
The listed functions include network-cable error-rate detection. The L716 document also describes AutoLED card identification and communication monitoring to help locate a cabinet and inspect its connection.

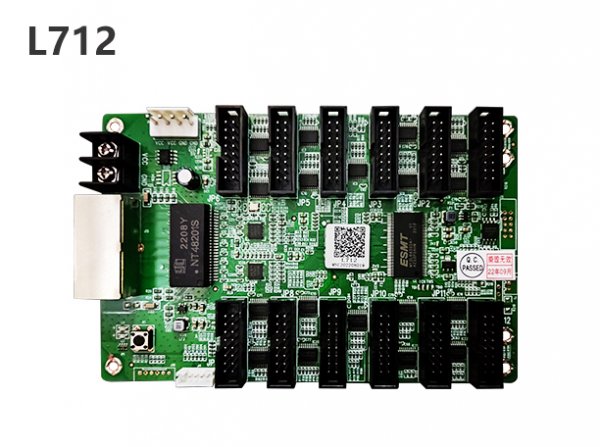

Original model photos and specification downloads

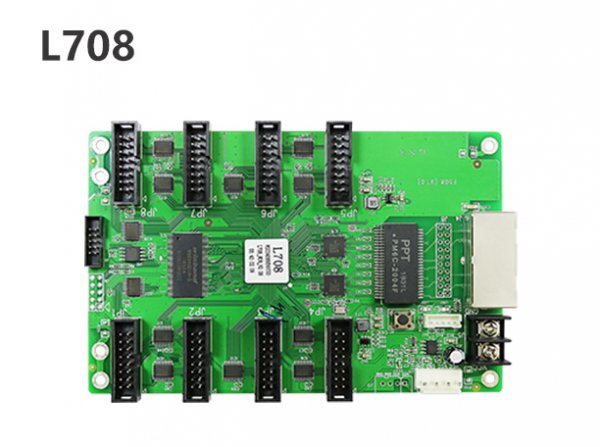

Mooncell L708 Series receiving card Specification （Chinese）
