Choose a Mooncell LED display video player box for storing, scheduling and managing screen content. This listing offers MP1, MP2, MB4 and MB6 options. Select the exact model for your screen resolution, video source and network connection.
Model selection and document compatibility
The attached MB1 and MB2 manuals use different model names from the MP1 and MP2 options shown in this listing. Their specifications are presented as document references only, not as confirmed MP1/MP2 specifications. MB4 specifications must be checked against the exact unit before purchase.
Documented product specifications
| Parameter | Specification |
|---|---|
| Product options listed | MP1, MP2, MB4 and MB6 |
| MB1 document: LED capacity | 650,000 pixels; maximum width 1920, maximum height 1080 |
| MB1 document: hardware | 4-core CPU + 4-core GPU; 1 GB DDR3; 8 GB eMMC; 1 LED output |
| MB2 document: LED capacity | 1,300,000 pixels; maximum width 1920, maximum height 1080 |
| MB2 document: hardware | 4-core CPU + 4-core GPU; 1 GB DDR3; 8 GB eMMC; 2 LED outputs |
| MB1 / MB2 video decoding | 1080p hardware decoding; HDMI output |
| MB6 LED capacity | 2,300,000 pixels; maximum width 3840, maximum height 2160 |
| MB6 hardware | 8-core CPU; 2 GB DDR3; 8 GB eMMC; 4 LED outputs |
| MB6 video connections and decoding | HDMI input and output; H.265 4K hardware decoding |
| 4G connectivity | Optional in the MB1, MB2 and MB6 specifications |
Maximum width, maximum height and total LED pixel load are separate limits. A decoding resolution describes the video the player can process; it is not the number of LED pixels it can drive.
Program updates and display management
The MB1, MB2 and MB6 documents describe network management, USB program updates, scheduling and brightness control. MB6 also supports synchronous and asynchronous operation. Confirm the required sensor accessories and optional network hardware for the selected model.
Frequently Asked Questions
Are MP1 and MP2 the same as MB1 and MB2?
The product options are named MP1 and MP2, while the linked documents are labelled MB1 and MB2. Check the model label and matching specification with us before ordering; the MB1 and MB2 figures below should not be treated as verified MP1 or MP2 ratings.
Can the MB6 play 4K video on a 4K LED screen?
The MB6 specification lists H.265 4K decoding and a separate LED loading capacity of 2.3 million pixels. Decoding resolution does not increase LED output capacity. The screen must remain within the total pixel load and the stated width and height limits.
Do all these players have HDMI input?
The MB6 document lists HDMI input and output. The MB1 and MB2 documents list HDMI output. Do not assume that HDMI input or synchronous playback is available on every option.
Can I update programs over the network or a USB drive?
The MB1, MB2 and MB6 documentation supports network program management and USB-drive updates. Match the software and connection method to the exact player; 4G requires the optional configuration.
Which specification PDF should I use before ordering?
Use the document matching the hardware model and revision. The original MB1, MB2, MB4 and MB6 download links are retained below. Confirm MP1/MP2 specifications and the MB4 configuration before choosing a player for a fixed screen size.
Product photos and specification downloads
Mooncell MB1 video player box Specification

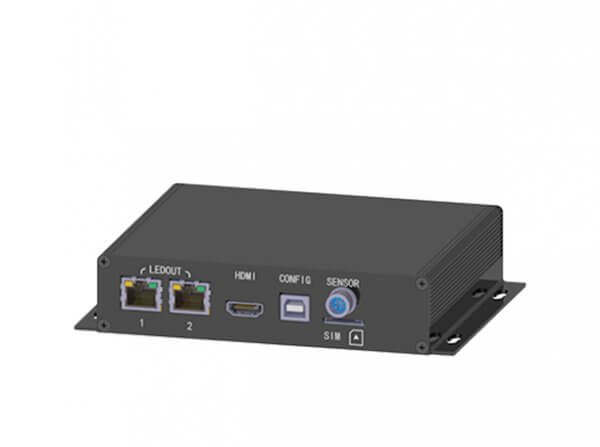

Mooncell MB2 video player box Specification
