Mooncell MTB200S LED Sending Box
The Mooncell MTB200S is an LED display master controller with a built-in V30 Pro sending card. It accepts a DVI video signal and sends display data through two Gigabit Ethernet outputs, with a maximum LED loading capacity of 1.3 million pixels.
Its synchronous video and audio transmission suits LED display installations using a connected source, including hotel stages, bars, live broadcast displays and outdoor advertising screens.
Technical Specifications
| Parameter | Specification |
|---|---|
| Built-in sending card | Mooncell V30 Pro |
| Maximum LED loading capacity | 1.3 million pixels |
| Video input | 1 × DVI |
| Audio input | 1 × AUDIO |
| LED data outputs | 2 × Gigabit Ethernet ports |
| Communication | 1 × USB; cascading connection of multiple sending cards to one computer |
| Preset input resolutions | 1024 × 768; 1280 × 1024; 1366 × 768; 1600 × 1200; 1920 × 1080; 2048 × 1152; 2560 × 960 |
| Custom resolution | Supported |
| Input frame rates listed | 30 Hz, 50 Hz, 60 Hz and 120 Hz |
| Backup functions | Ethernet port loop dual backup; dual master controller backup |
| Maintenance functions | Operating-status monitoring, configuration readback and Gigabit network error-rate detection |
Connection and Setup Considerations
Check the DVI source timing, total screen pixel count and receiving-card configuration before selecting the controller. The supported input resolutions and input frame rates are separate from the maximum LED loading capacity; they should not be treated as a guarantee that every listed combination can be displayed at full resolution.
USB communication supports cascading control from one computer. Configuration readback, operating-status monitoring and network error-rate detection help check a configured installation. Ethernet loop and dual-controller backup are available for systems configured to use these functions.

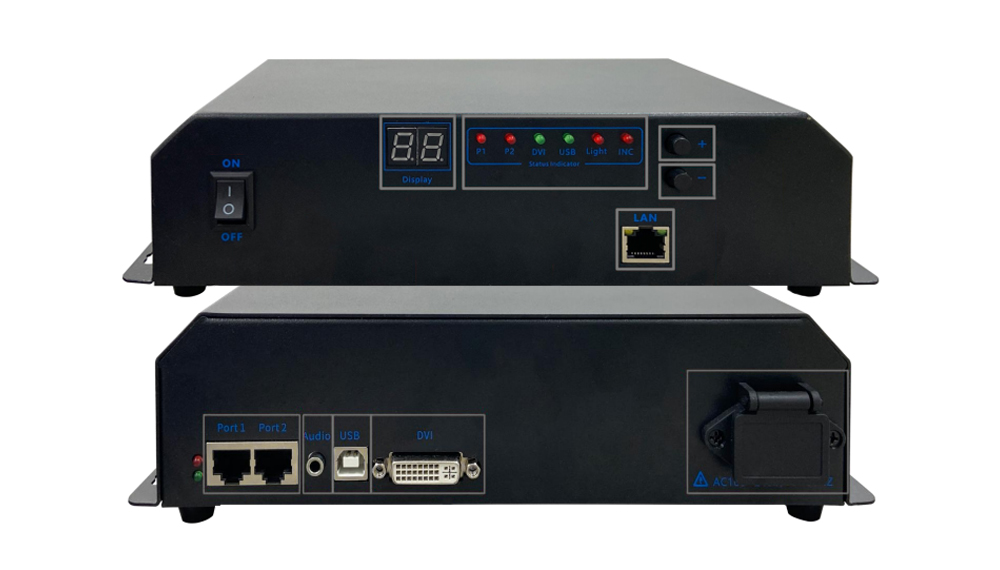

Product Image and Specification Download
Download Specification:
Mooncell MTB200S Led Display Master Controller Series Video Processor Specification
Frequently Asked Questions
What is the maximum loading capacity of the MTB200S?
The maximum LED loading capacity is 1.3 million pixels. Preset input resolutions describe accepted source timings; they do not increase the stated LED pixel capacity.
Does the MTB200S include a sending card?
Yes. The enclosure has a built-in Mooncell V30 Pro sending card and two Gigabit Ethernet output ports.
What video input does the MTB200S use?
It has one DVI video input and one AUDIO input. The documented video connection is DVI; check your source connection before ordering.
Can multiple MTB200S sending cards be controlled from one computer?
The USB communication function supports cascading multiple sending cards to one computer. The controller also supports operating-status monitoring and configuration readback.
Does the MTB200S support backup connections?
Yes. Ethernet port loop dual backup and dual master controller backup are listed functions. Confirm the receiving-card configuration and backup wiring for your screen before installation.
