Mooncell MVP601-D, MVP125-D and V2 video processors
This combined listing covers three LED video-processor models. Start with the required video sources and output layout, then match those requirements to the selected model and its rear-panel connections.
Product information and supported source formats
The original listing combines input specifications and a total splicing-capacity claim. The linked MVP601-D manual describes a different output arrangement, so connector quantities and total loading should be verified per model.
| Parameter | Specification |
|---|---|
| Models in this listing | Mooncell MVP601-D, MVP125-D and V2 |
| DVI input formats listed | VESA PC resolutions up to 1920 × 1200; HD up to 1080p |
| HDMI input formats listed | PC resolutions up to 1920 × 1200; HD up to 1080p |
| VGA input formats listed | VESA PC resolutions up to 1920 × 1200 |
| Composite video formats listed | PAL / NTSC; 480i and 576i |
| 3G-SDI | Optional in the listing; verify the selected unit |
| MVP601-D documented DVI output | Up to 1920 × 1280 at 60 Hz in the linked manual |
| MVP601-D documented controls | Black output, freeze, presets and RS232 computer control |
| Connector counts and total splicing capacity | Model-dependent; confirm the rear panel and matching manual |
Check the selected model before ordering
Confirm the source resolution, refresh rate, number of independent output channels and any SDI option. Input resolution is not a statement of total LED screen capacity. Use the corresponding manual below when matching a processor to sending cards and the display layout.
Frequently Asked Questions
Are MVP601-D, MVP125-D and V2 the same processor?
They are separate model names in this combined listing, with separate manuals. Do not assume identical input counts, output groups or total screen capacity. Confirm the exact model before choosing a unit.
Which source formats are listed?
The listing describes DVI, HDMI and VGA input support up to 1920 × 1200 for PC sources, with HD video up to 1080p where specified. Composite input is listed for PAL/NTSC at 480i or 576i.
Is 3G-SDI a standard input?
It is described as an optional input in the listing. Confirm whether the selected model and hardware include SDI, and check the required signal format.
Does the 7.95-million-pixel figure apply to every model?
That figure appeared in the former combined description but is not established for all three models. Use the exact model manual and output configuration to determine total splicing capacity.
What does the MVP601-D manual say about outputs and controls?
The linked manual describes DVI output up to 1920 × 1280 at 60 Hz, black output, freeze, preset recall and RS232 computer control. It states that it covers several related models, so compare its rear-panel diagram with the supplied unit.

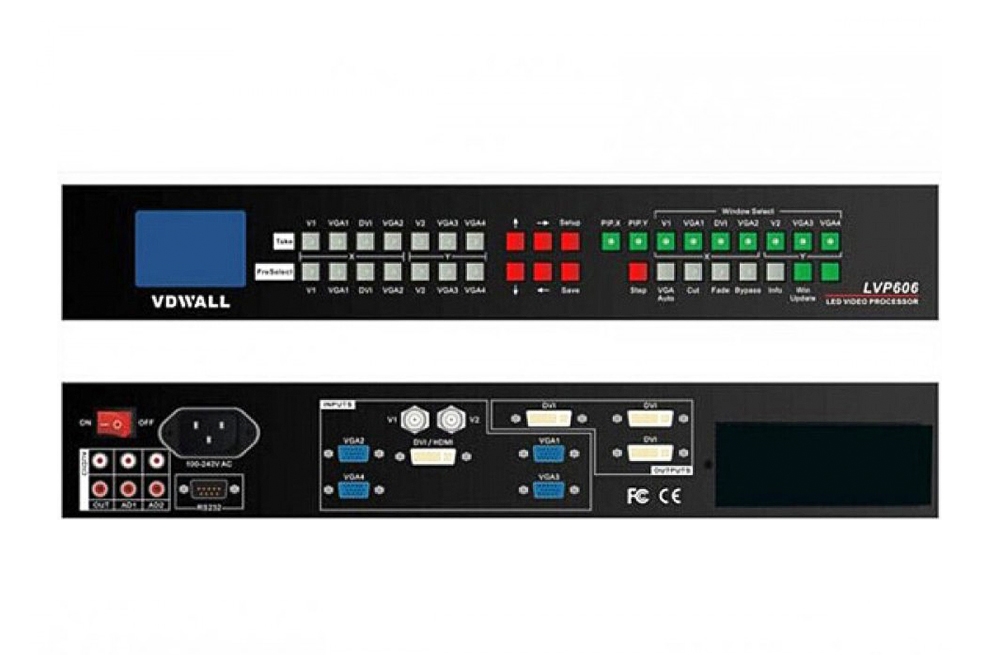

Original product photos and model manuals
Mooncell V2 Video splicer series manual （Chinese）
