Mooncell T-75EB / DY75 LED receiving card
This product is listed as Mooncell T-75EB / DY75, with 16 standard HUB75D interfaces and up to 32 groups of RGB parallel data. The attached specifications describe DY75 hardware; match the card marking and revision to your cabinet before selecting a replacement.
DY75 specifications and calibration limits
The following values are taken from the linked DY75 specifications. Document V3.2 identifies hardware V2.0 and separates brightness-calibrated loading from chroma-calibrated loading.
| Parameter | Specification |
|---|---|
| Listing model | Mooncell T-75EB / DY75 |
| Specification reference | DY75, document V3.2 / hardware V2.0 |
| Module interfaces | 16 standard HUB75D interfaces |
| Parallel data | Up to 32 RGB data groups |
| Maximum loading resolution | 768 × 256 pixels |
| With brightness calibration | 768 × 256 pixels |
| With chroma calibration | 512 × 160 pixels |
| Supported scanning | 1–64 scan |
| Configuration software | Mooncell AutoLED |
| Image adjustments | Rotation in 90° increments; scaling |
| Maintenance functions | Card identification, configuration readback and network error-rate detection |
Cabinet configuration and display adjustment
AutoLED provides screen rotation in 90° increments, scaling and output-data customization. It also supports complex cabinet layouts and screen connections. Pixel-level brightness and chroma calibration require the relevant calibration software and the loading limit for the selected mode.
For maintenance, the card supports configuration readback, network error-rate detection and card identification. These functions help locate a cabinet and check its connection during setup.
Frequently Asked Questions
How many pixels can the DY75 receiving card load?
The DY75 specification lists 768 × 256 pixels for maximum loading and brightness-calibrated loading. With chroma calibration, the listed limit is 512 × 160 pixels. Select the value that matches the intended calibration mode.
Does this card use HUB75D or HUB75E interfaces?
The listing and DY75 specifications identify 16 HUB75D interfaces, with up to 32 groups of parallel RGB data. Check the module pinout and hardware label before replacing an existing card.
Can the DY75 rotate or scale an image?
Yes. AutoLED supports rotation in multiples of 90° and image scaling. Confirm the cabinet mapping and module arrangement when configuring these functions.
Which software functions help with setup and troubleshooting?
AutoLED supports card-number identification, editable output-data mapping, complex cabinet and screen layouts, configuration readback, network-cable error-rate detection and communication monitoring.
Do both download links describe T-75EB hardware?
Both linked documents identify the DY75 receiving card. The product listing retains the T-75EB / DY75 name and both original photos. Verify the exact model marking and hardware revision before ordering a replacement.

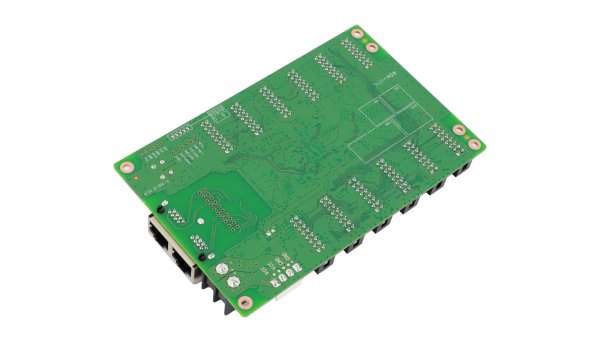

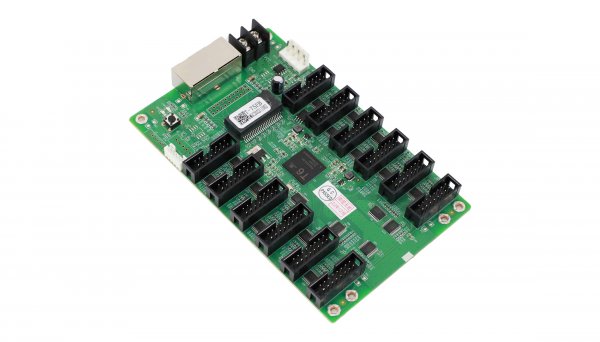

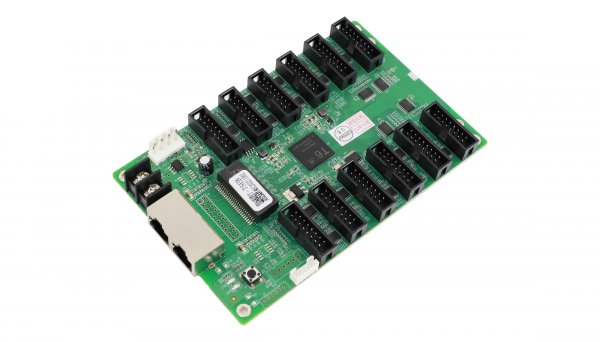

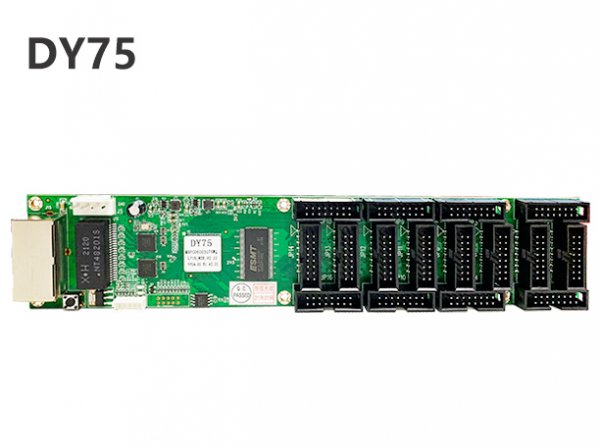

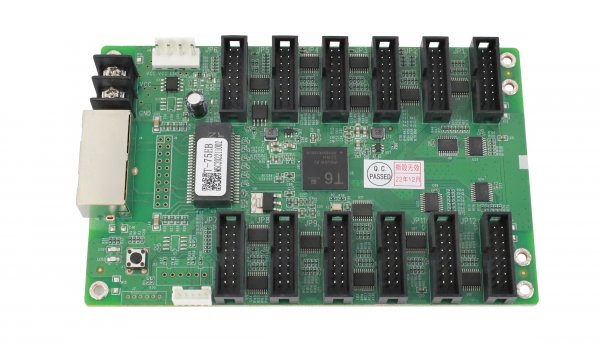

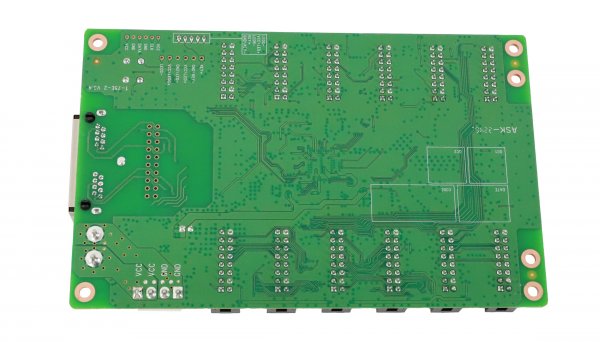

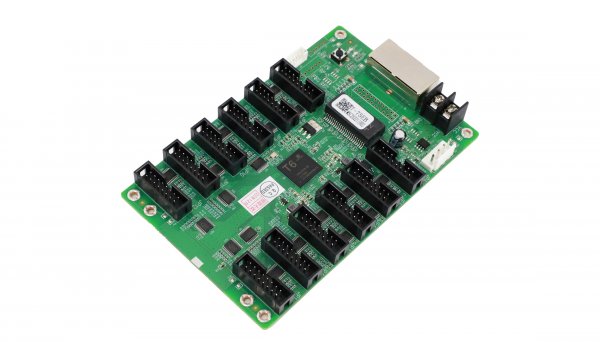

Original product photos and specification downloads
Download Specification:
Mooncell DY75 Full Color LED Receiving card Specification （Chinese）
