Novastar CVT10-S LED Screen Fiber Converter

$750.00

The Novastar CVT10-S fiber converter offers a cost-effective way to convert optical signals to electrical signals, or electrical signals to optical signals, for connecting the sending card to the LED display. Delivering a full-duplex, efficient and stable data transmission that is not easily interfered with, this converter is ideal for long-distance transmission.

The Novastar CVT10-S hardware design focuses on the practicality and convenience of the on-site installation. It can be mounted horizontally, in a suspended way, or rack mounted, which is easy, secure and reliable. For rack mounting,two Novastar CVT10 devices, or one Novastar CVT10 device and a connecting piece can be combined into one assembly that is 1U in width.

9982 in stock

Novastar CVT10-S LED Screen Fiber Converter Features：

· Models include the CVT10-S (single-mode) and the CVT10-M (multi-mode).

· 2x optical ports with hot-swappable optical modules installed at the factory, bandwidth of each up to 10 Gbit/s

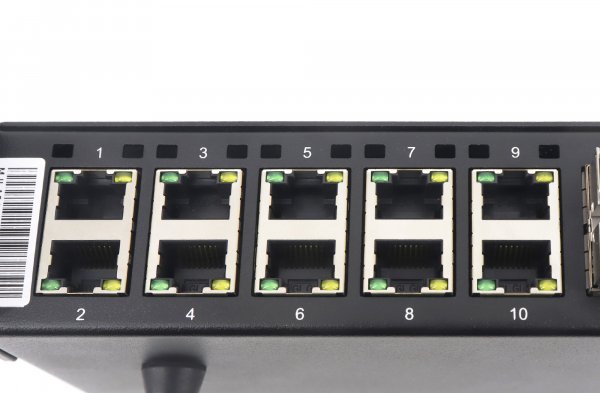

· 10x Gigabit Ethernet ports, bandwidth of each up to 1 Gbit/s

− Fiber in and Ethernet out

If the input device has 8 or 16 Ethernet ports, the first 8 Ethernet ports of the CVT10 are available.

If the input device has 10 or 20 Ethernet ports, all the 10 Ethernet ports of the CVT10 are available.

If Ethernet ports 9 and 10 are found unavailable, they will be available after upgrading in the future.

− Ethernet in and fiber out

All the 10 Ethernet ports of the CVT10 are available.

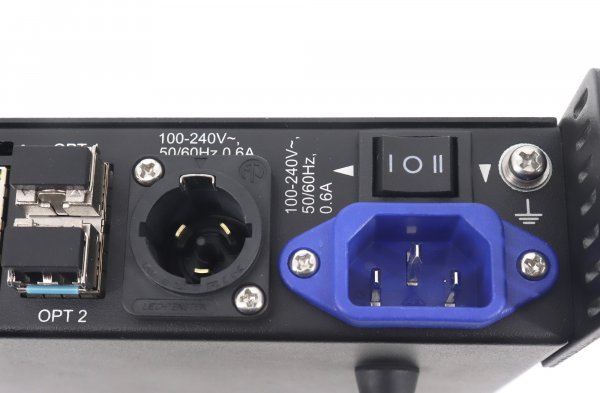

· 2 types of power connectors, including a 3-pin power socket and a PowerCON socket

· 1x type-B USB control port

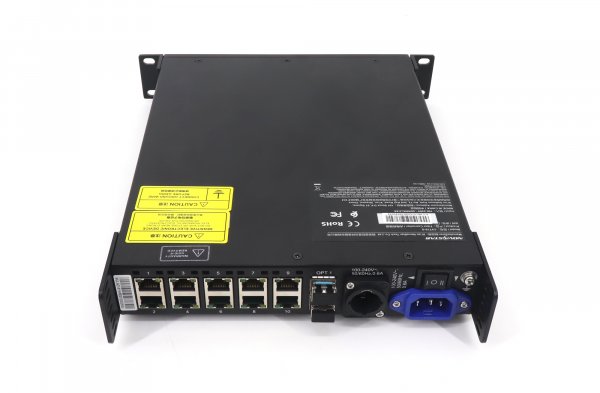

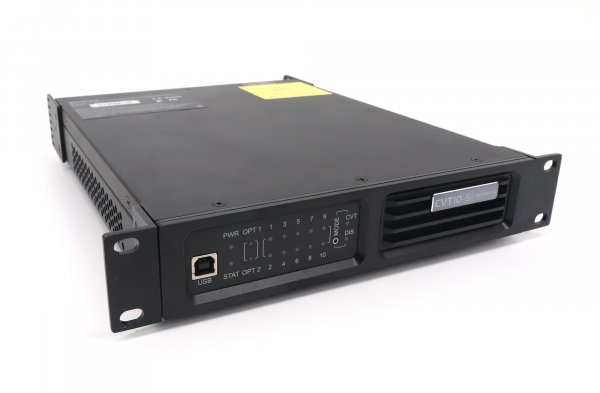

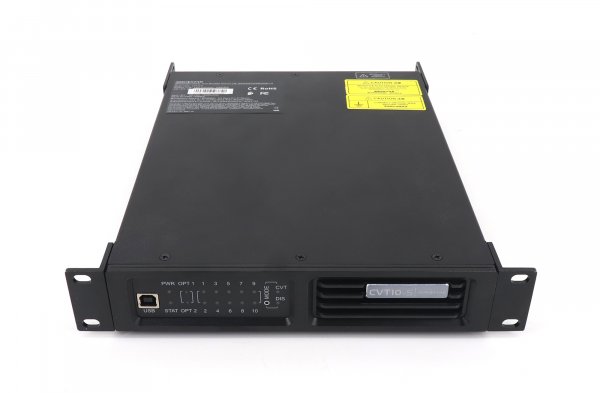

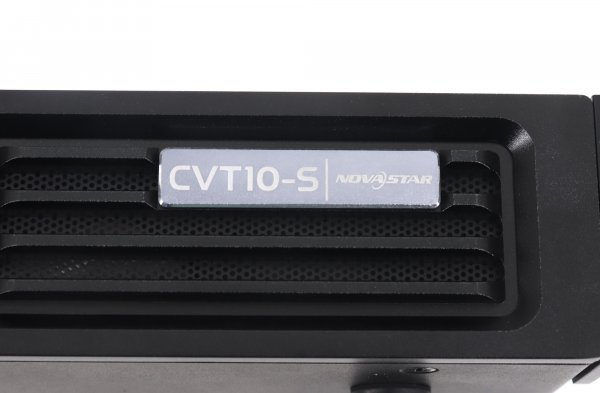

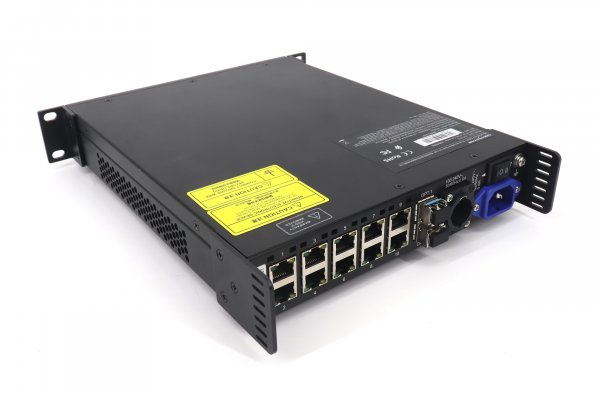

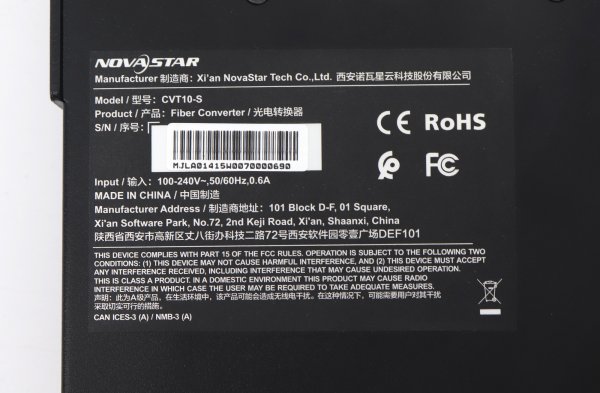

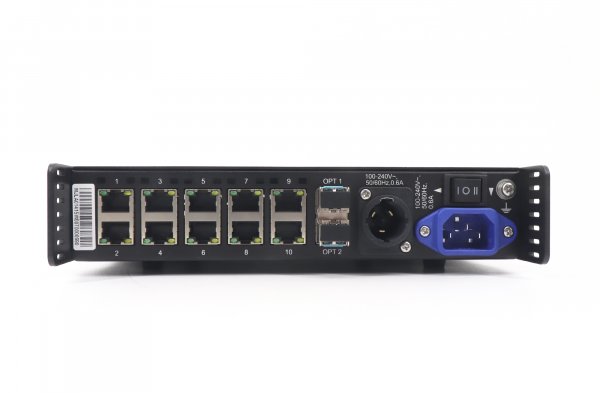

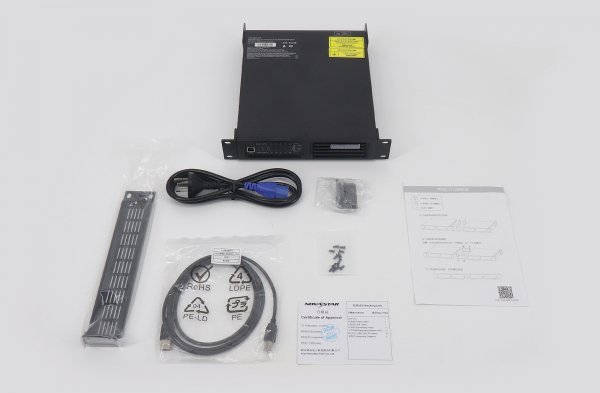

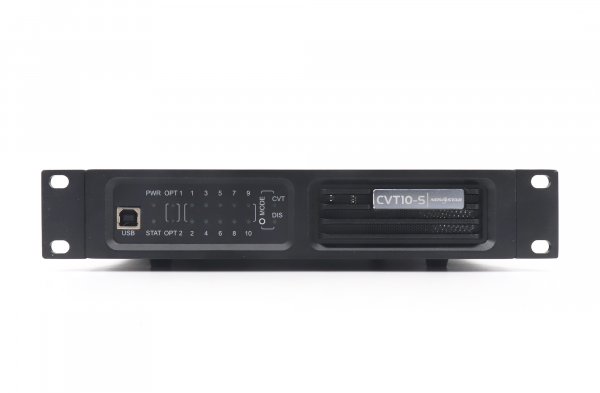

More Pictures of Novastar CVT10-S LED Screen Fiber Converter

Novastar CVT10-S LED Screen Fiber Converter

Download Specification

Novastar CVT10-S LED Screen Fiber Converter Specification

Weight	7 kg
