NovaStar CVT4K-M Fiber Converter Overview
The NovaStar CVT4K-M is a professional LED display fiber converter designed to carry control signals over distances of up to 300 m. It converts signals between Gigabit Ethernet over twisted-pair cable and 850 nm multimode optical fiber, helping reduce interference and simplify long-distance wiring for LED screen systems.
The unit combines 16 Neutrik RJ45 ports with four LC optical ports. Two optical paths serve as the main inputs and outputs, while the other two provide backup paths. Internal dual-power redundancy adds reliability for installations where signal continuity matters.
CVT4K-M Key Specifications
| Product type | Gigabit Ethernet LED display fiber converter |
|---|---|
| Ethernet interfaces | 16 Neutrik RJ45 ports |
| Optical interfaces | 4 LC ports for multimode twin-core optical fiber |
| Optical wavelength | 850 nm |
| Maximum transmission distance | 300 m |
| Control methods | USB and TCP/IP |
| Input power | AC 100-240 V, 50/60 Hz |
| Power connectors | 3-pin power socket and PowerCON |
| Certifications | CE, FCC, UL & cUL, EAC, CB and IC |
Key Features
- Long-distance LED signal extension: transmits signals up to 300 m through multimode fiber.
- 16 Neutrik Ethernet ports: provides robust RJ45 connections for professional LED display installations.
- Main and backup optical paths: four LC optical ports support two primary and two backup connections.
- Dual-power redundancy: redundant internal power supplies improve system stability and reliability.
- Flexible power connection: both a standard 3-pin socket and PowerCON connector are available.
- Clear status monitoring: front-panel indicators make operating status easy to check on site.
- Convenient management: USB and Ethernet control ports simplify connection to a control computer.
How the Main and Backup Fiber Paths Work
The CVT4K-M supports four multimode twin-core optical fiber connections with LC connectors. Two connections are assigned to the main input and output paths, and two are reserved as backup paths. This design gives installers a practical way to add signal-path redundancy without complicating the rack layout.
Typical Applications
The NovaStar CVT4K-M is suited to LED display projects that need stable signal delivery beyond the practical reach of copper cabling. Typical uses include:
- Rental and touring LED screens
- Stage, event and broadcast installations
- Fixed indoor or outdoor LED displays
- Control rooms and monitoring centers
- Sports venues and large public displays
For related components, browse our NovaStar products and LED control card accessories.
NovaStar CVT4K-M FAQ
What is the maximum transmission distance?
The specified maximum transmission distance is 300 m when the CVT4K-M is used with the supported multimode fiber connection.
How many Ethernet and optical ports does it have?
It has 16 Neutrik RJ45 Ethernet ports and four LC optical ports.
Does the CVT4K-M support redundant operation?
Yes. It provides main and backup optical paths and includes dual-power redundancy inside the unit.
How can the converter be controlled?
The CVT4K-M provides USB and TCP/IP control connections for integration with a control computer.

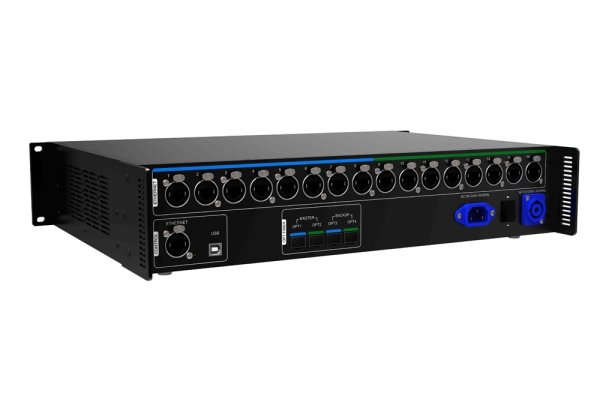

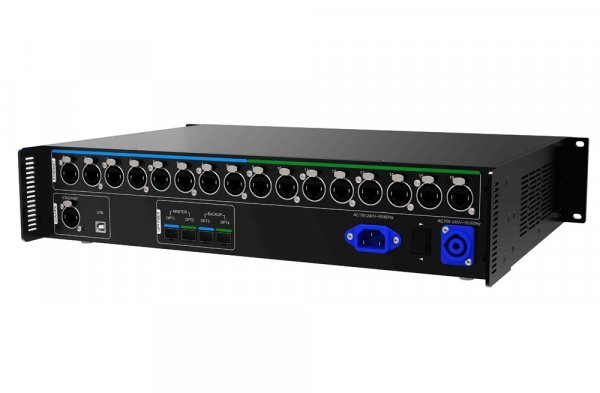

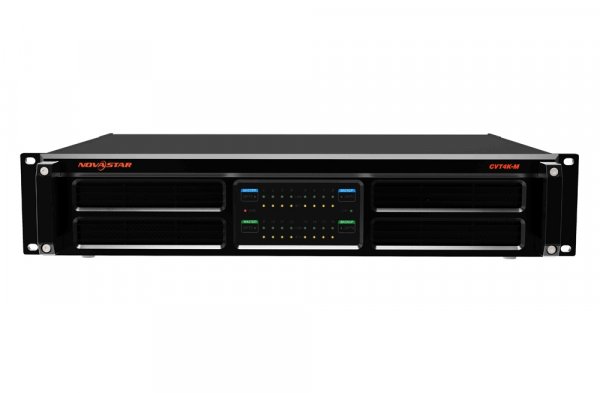

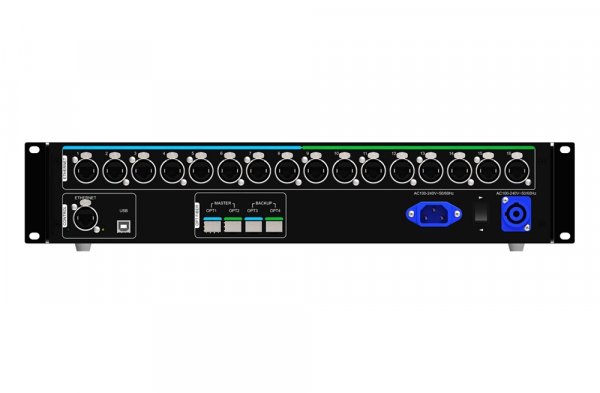

Product Images
Download the Specification
Download the NovaStar CVT4K-M specification PDF for detailed technical reference.
