Overview

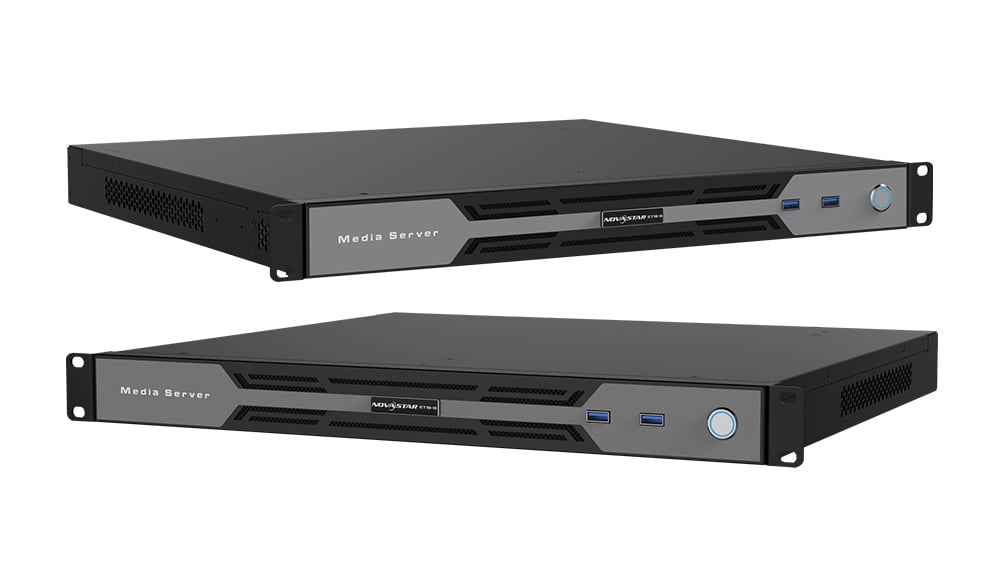

The Novastar ET Series LED Media Server is a professional‑grade media playback and control solution designed to deliver ultra‑high‑resolution, pixel‑to‑pixel output for LED and LCD applications. Available in multiple configurations (ET1S, ET1S-500, ET2S, ET4S(P2), ET4S(A4), ET16S(2A4), ET16S(3A4)), this server line supports a wide range of installation scenarios — from small conference rooms and showrooms to large-scale stage performances and events. Each unit ships pre-configured for smooth playback, intuitive control, and flexible output mapping, making it ideal for exhibitions, concerts, and creative display systems.
Features
• Supports up to 1 × 4K×2K@60Hz per module (with higher‑end models handling multiple 4K outputs or 8K decoding) for pixel‑perfect, high‑definition display quality.
• Multiple output connectors: 1 × DP 1.2 output; 4 × HDMI 1.3 duplicating DP 1.2 output; 1 × HDMI 2.0 duplicating DP 1.2 output.
• Capable of splitting a single output into up to 1024 partitions — ideal for large or ultra‑wide LED screens and mosaic configurations.
• Built-in playback of multiple media layers: base models support 4 video layers + 1 audio layer; advanced models support up to 36 layers + 1 audio layer (expandable).
• Comprehensive media support: video, image, PowerPoint, audio files, NDI sources, streaming media, website‑based sources, and text sources. Batch import and media library management included.
• Flexible playback controls: adjustable media width/height/priority, crossfade transitions, program auto‑jump, slide management for PowerPoint, and one‑click fade‑to‑black (FTB).
• Automated operation: media software launches on system power‑on; supports auto-playback, visual control, external central control, and multi‑machine cascading & synchronization (on supported models).
• Firmware update support and robust control via intuitive GUI — ideal for quick deployment and easy operation even in complex stage environments.

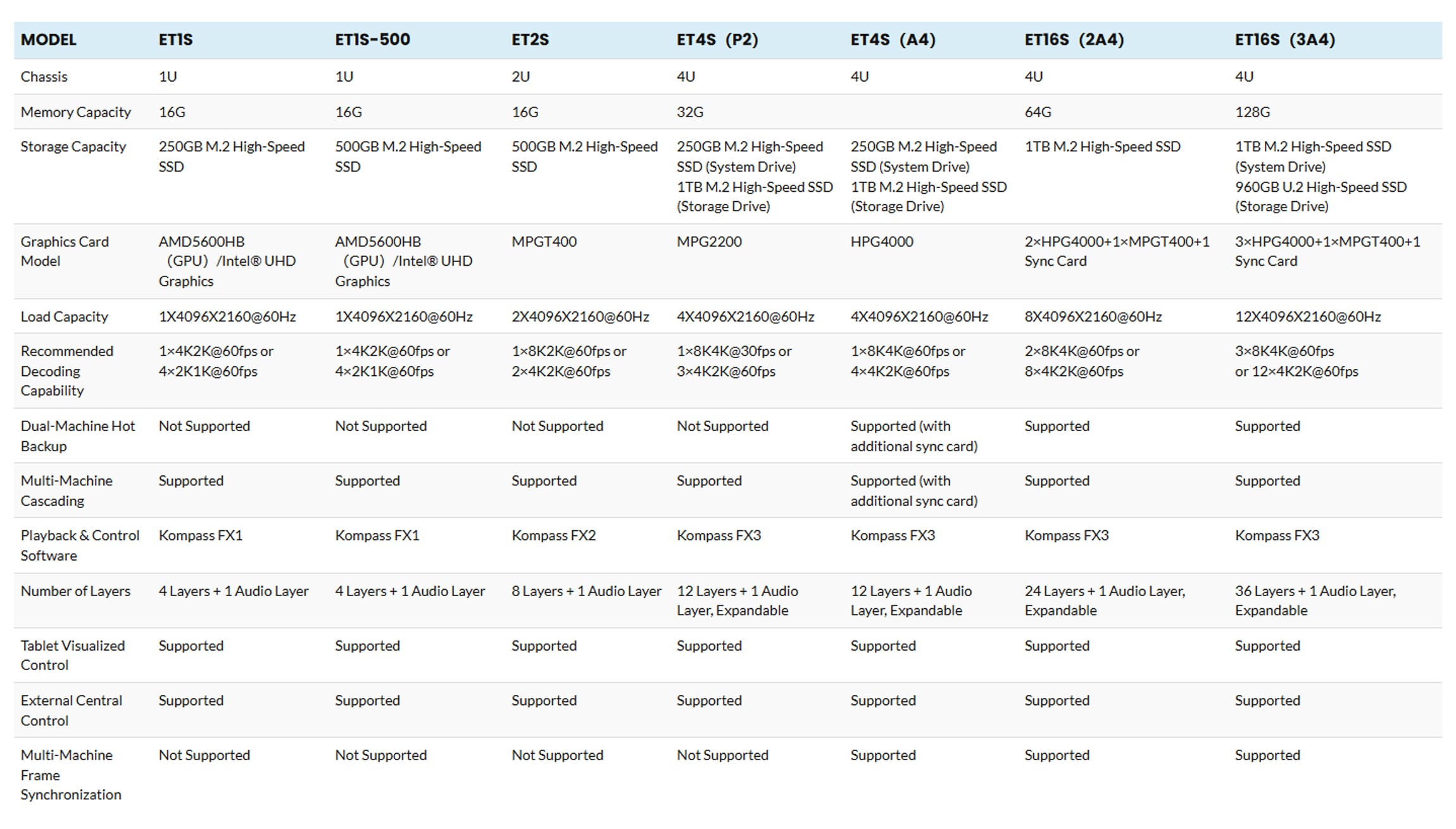

Novastar ET1S / ET1S-500 / ET2S / ET4S(P2) / ET4S(A4) / ET16S(2A4) / ET16S(3A4) Media Server Comparison:
Download Specification:
Novastar ET1S Media Server Specifications
