NovaStar MRV208-N LED Receiving Card Overview

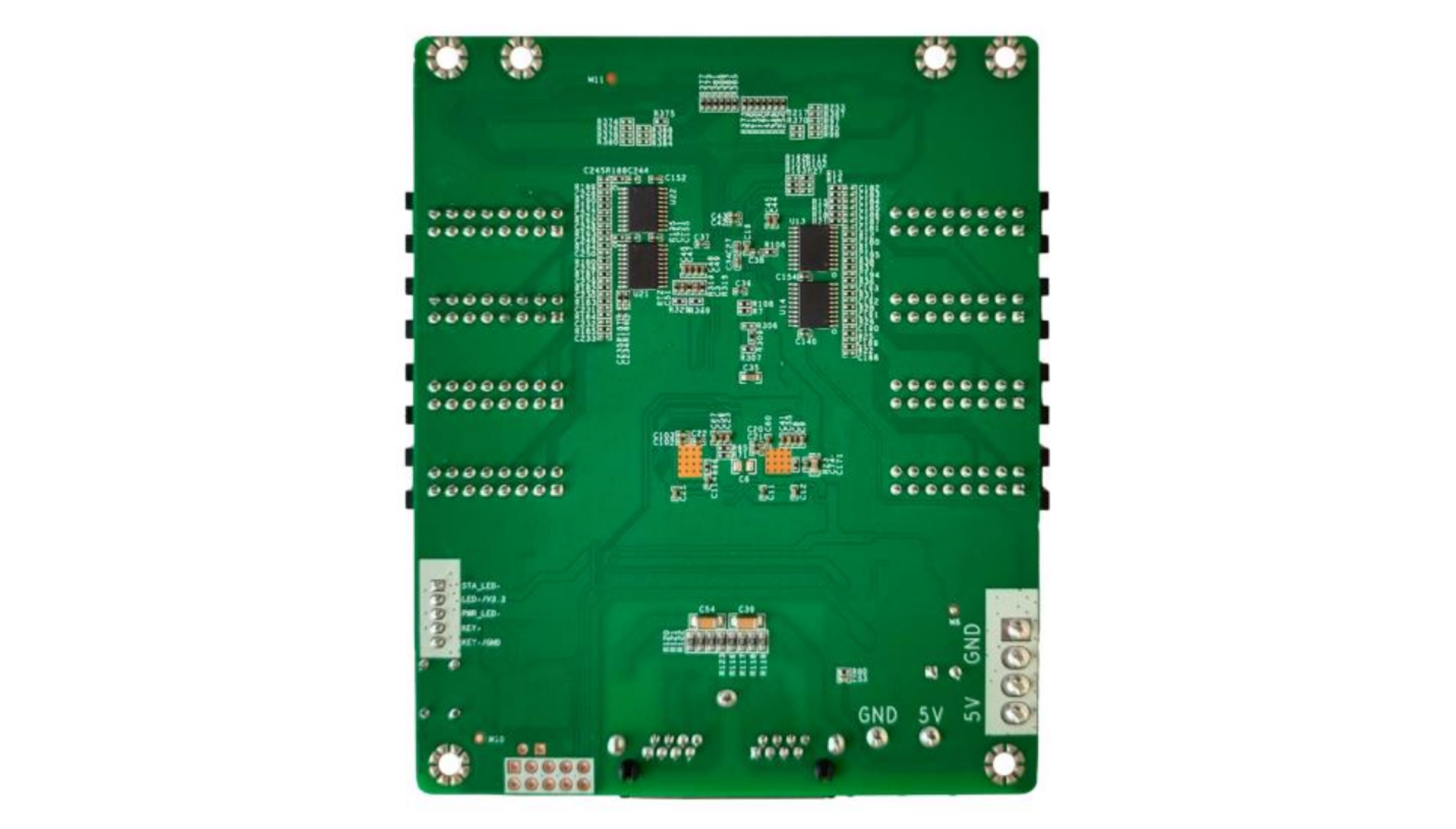

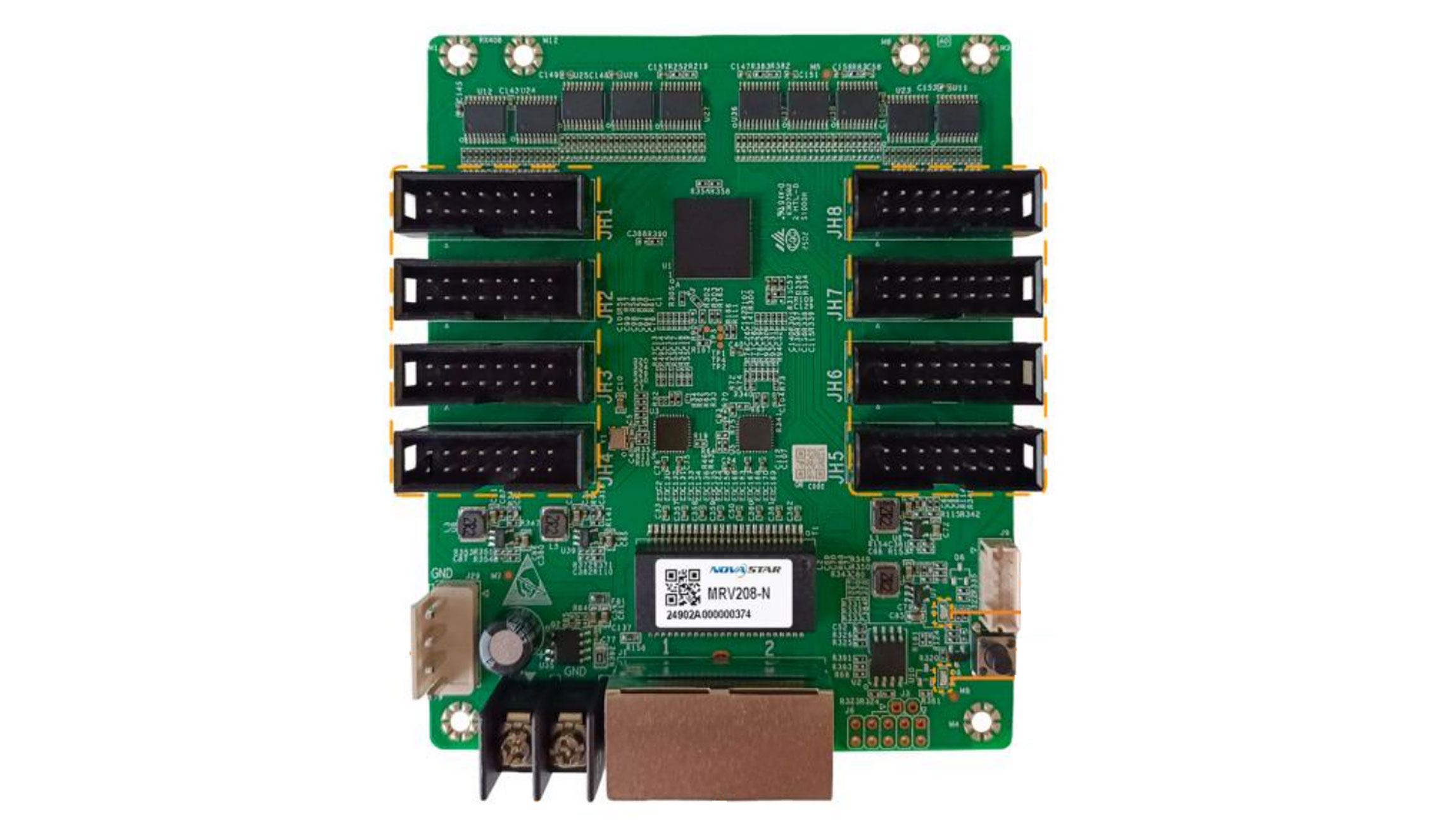

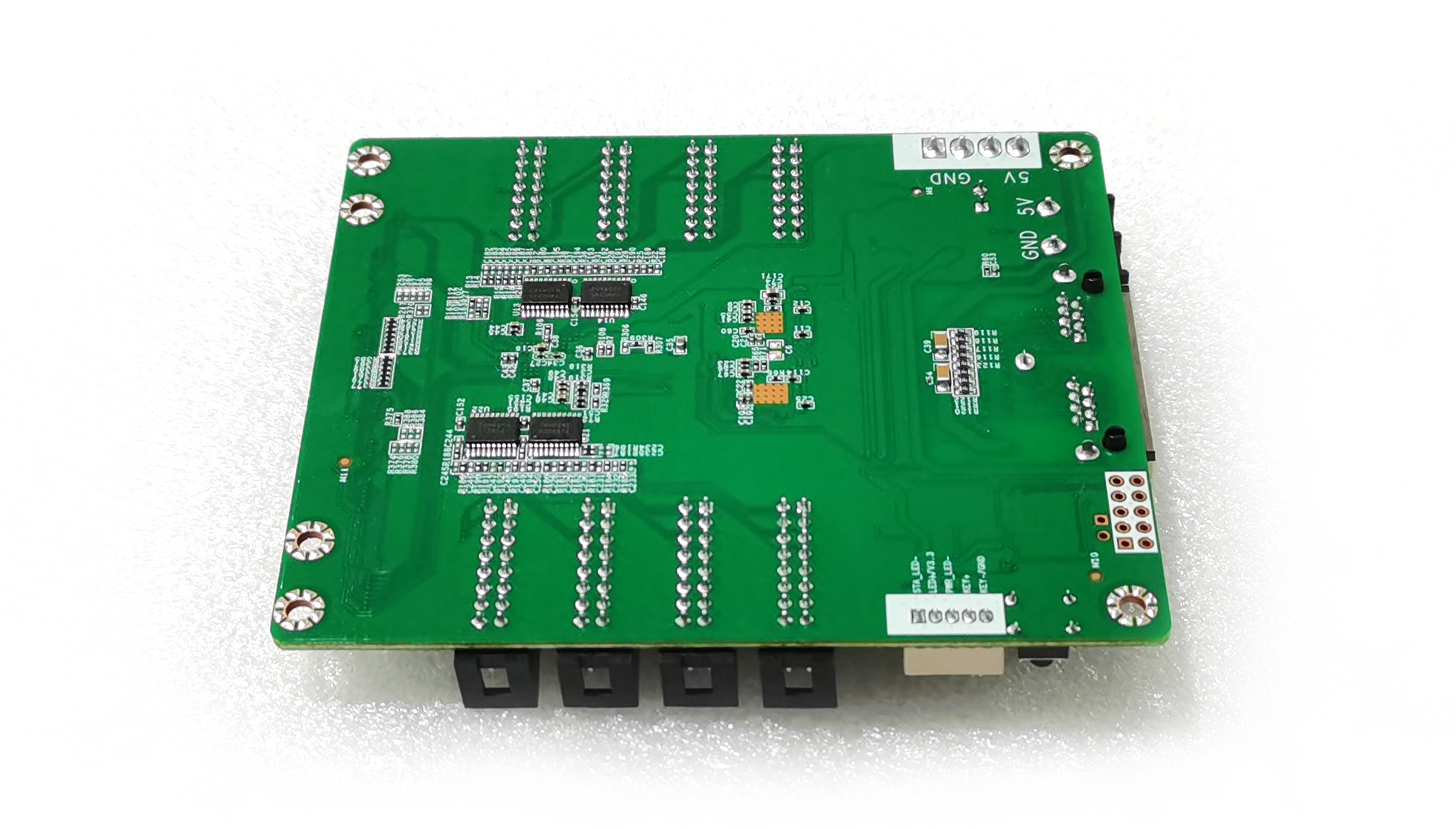

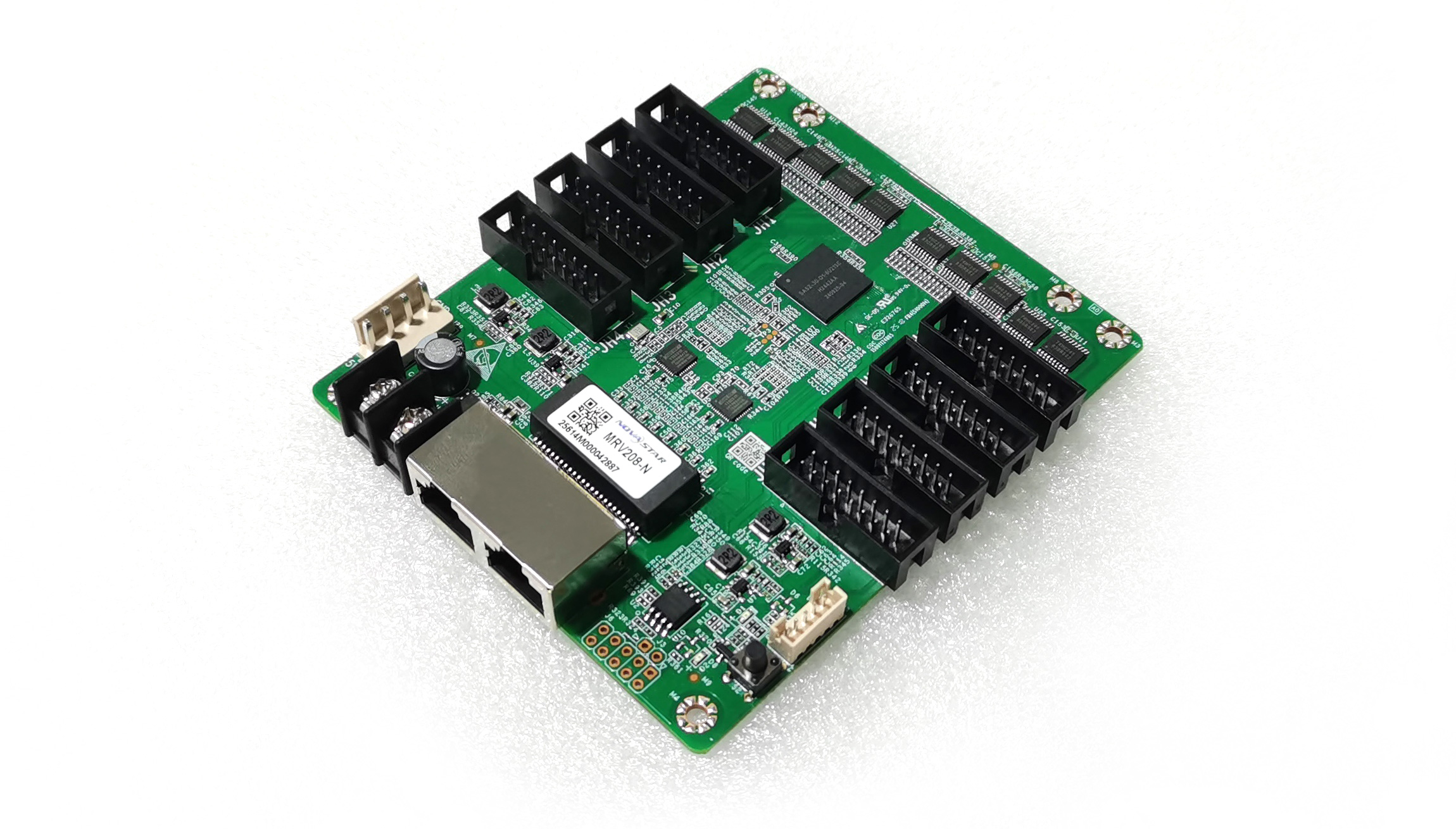

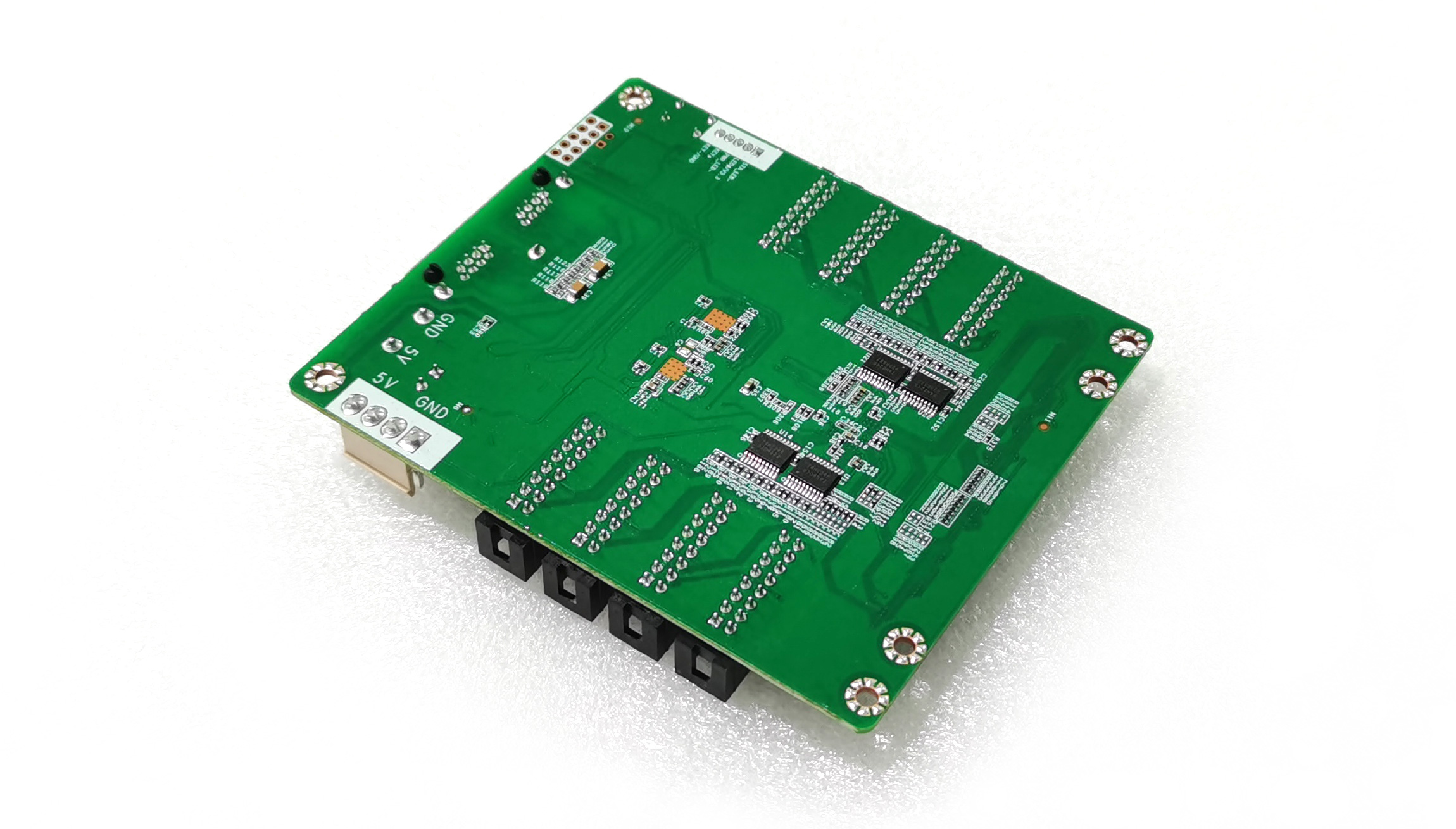

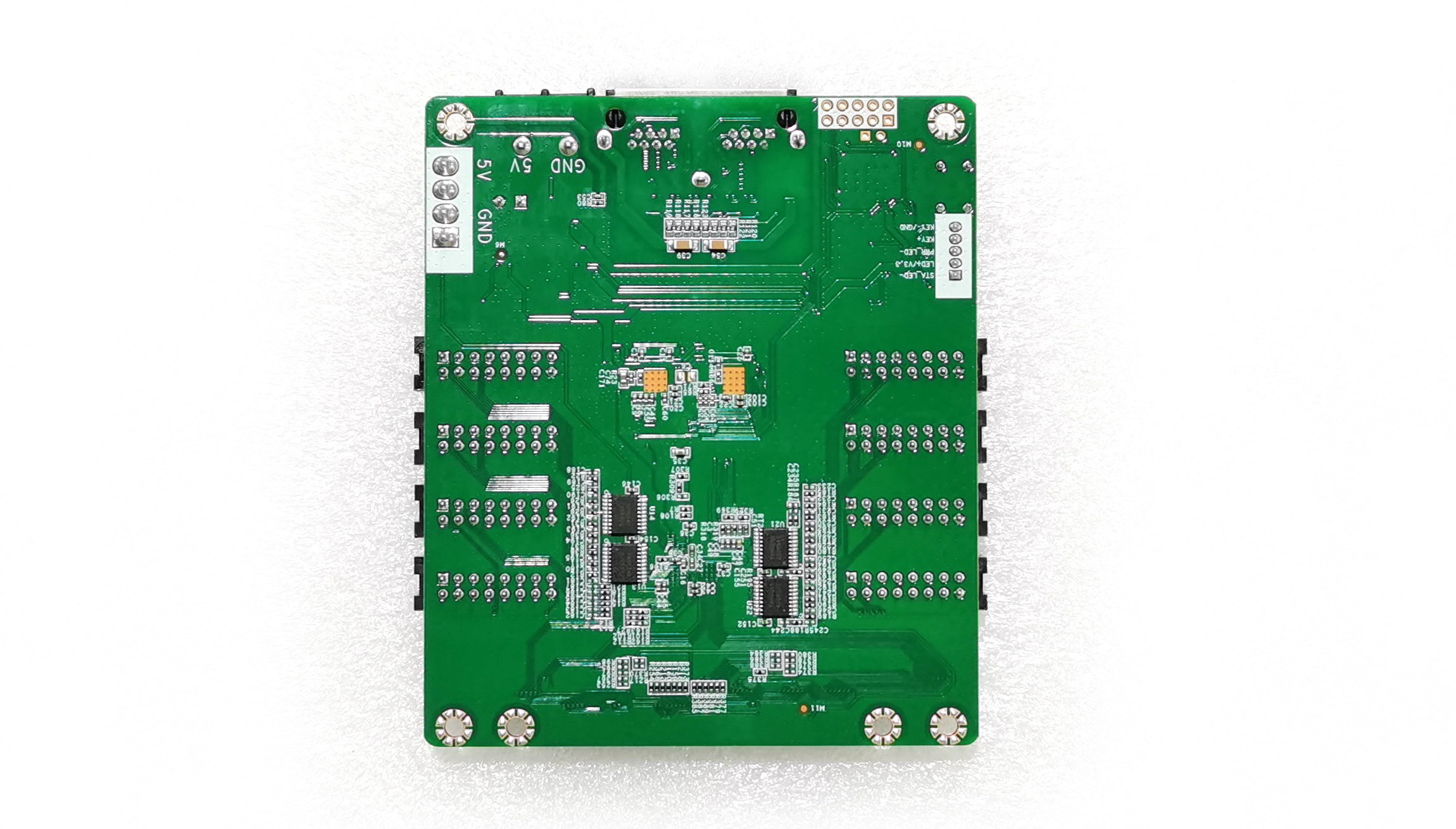

The NovaStar MRV208-N is a general-purpose LED receiving card developed by NovaStar. It uses eight standard HUB75E connectors for stable communication and supports up to 16 groups of parallel RGB data. Designed for LED display cabinets, the card combines high image quality, practical monitoring tools and multiple backup functions in one compact control component.
For buyers comparing LED display receiving cards, the MRV208-N stands out for its 18bit+ grayscale enhancement, low-latency operation, pixel-level calibration and 90-degree image rotation. It is available from our LED receiving card collection and is part of our NovaStar product range.
MRV208-N Key Specifications
| Specification | NovaStar MRV208-N |
|---|---|
| Product type | LED display receiving card |

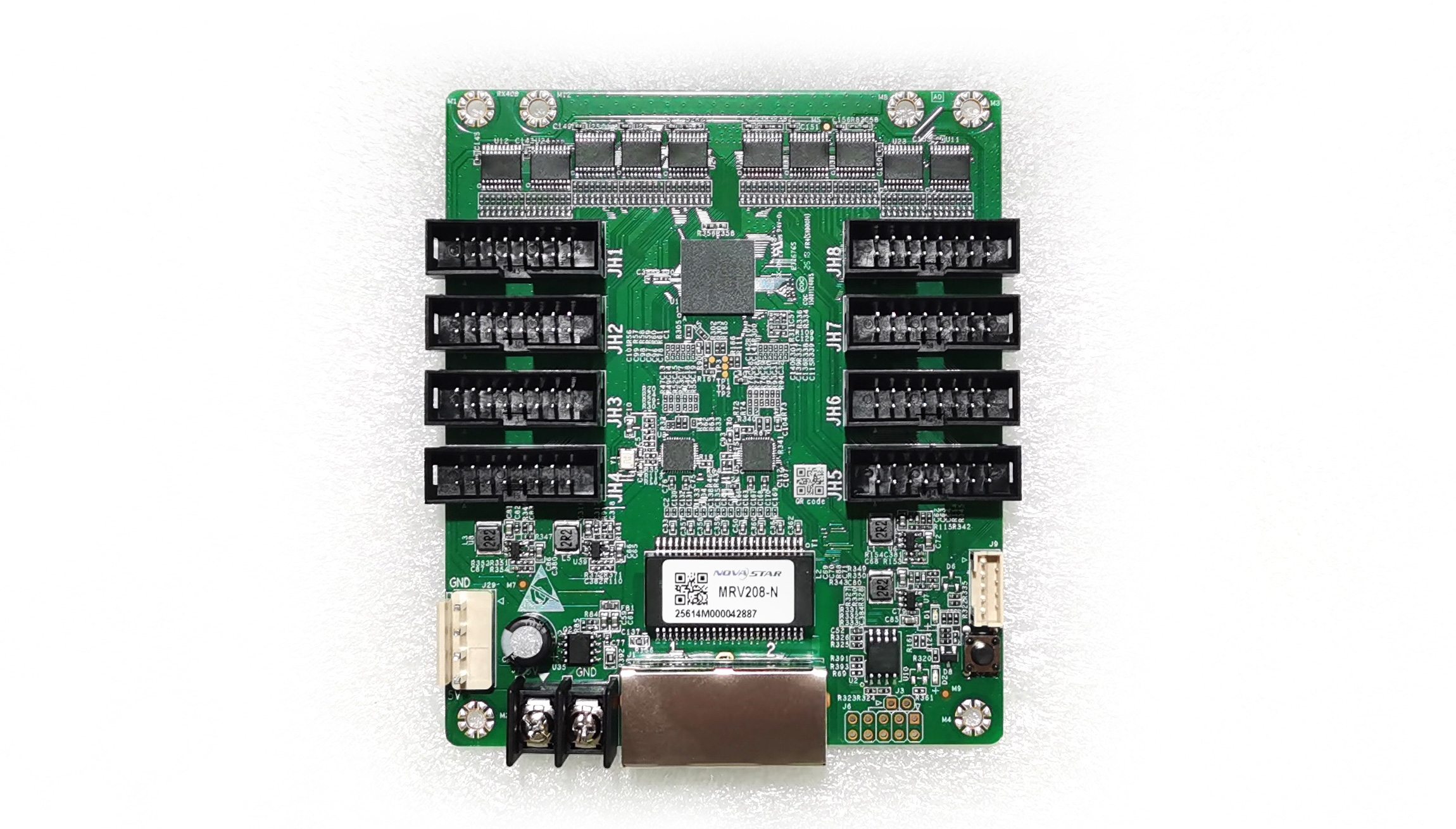

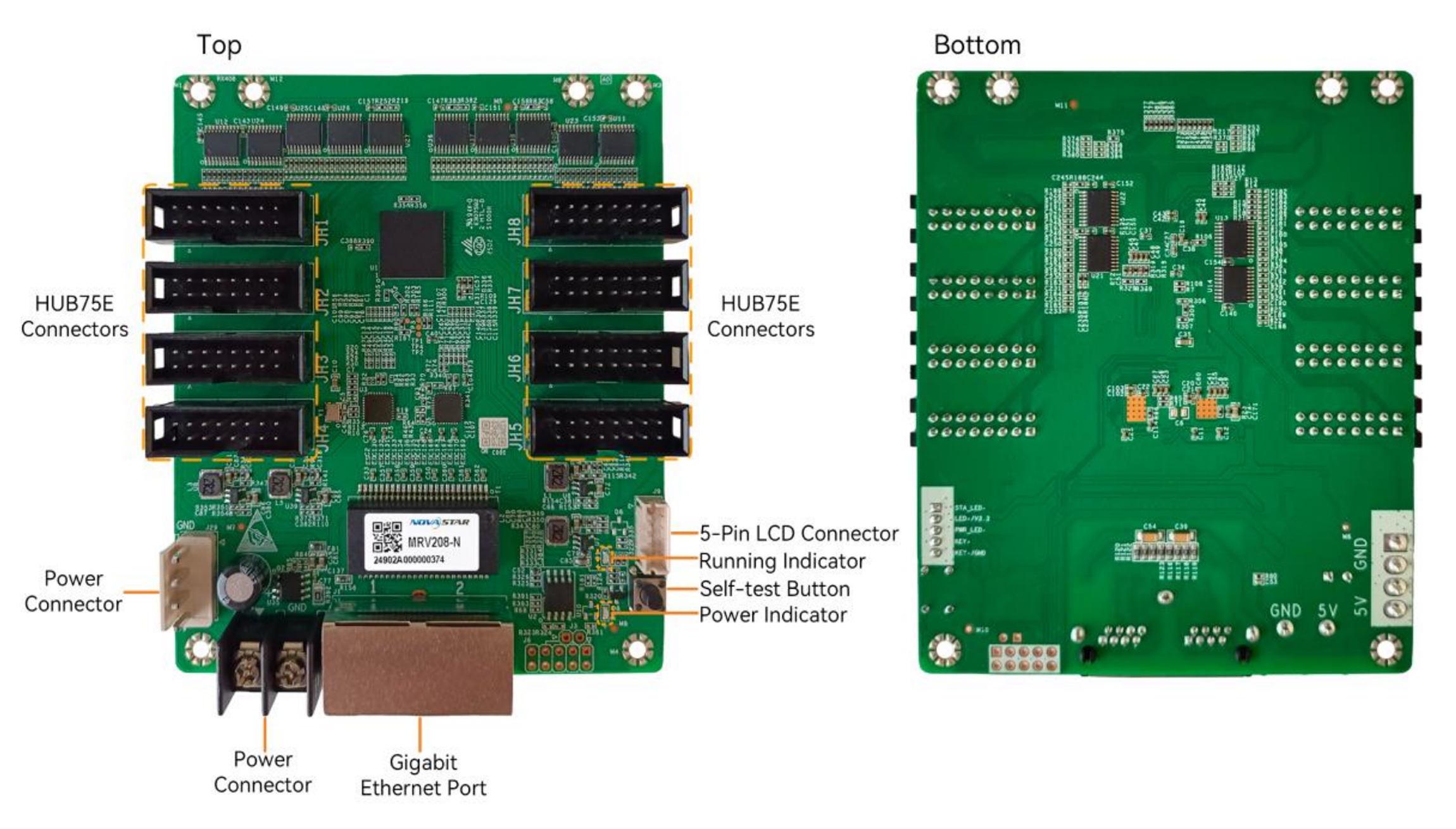

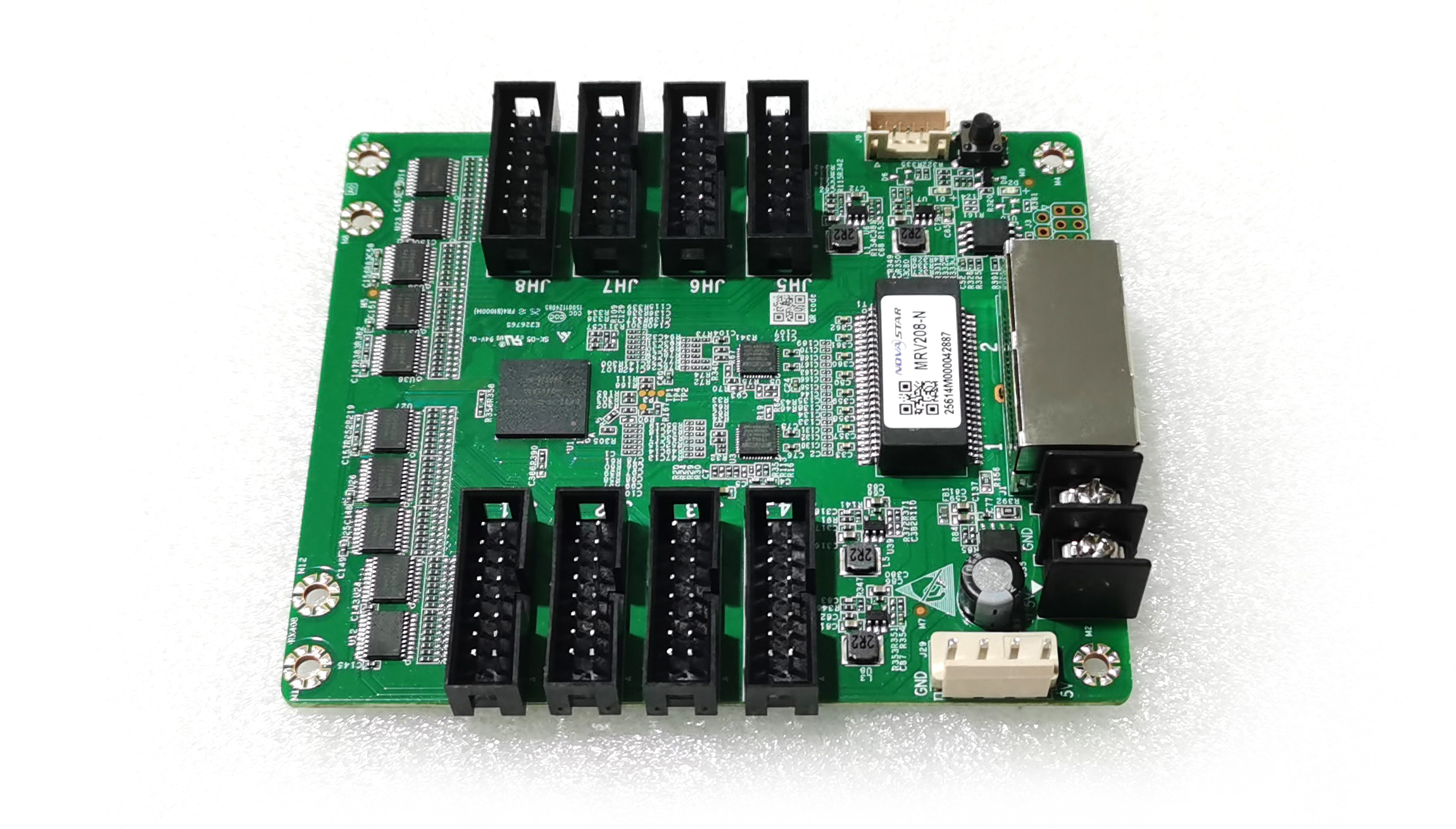

| Output connectors | 8 standard HUB75E connectors |
| Parallel RGB data | Up to 16 groups |
| Maximum load with PWM driver ICs | 512×512 pixels at 60Hz for 8-bit video sources |
| Maximum load with common driver ICs | 512×384 pixels at 60Hz for 8-bit video sources |
| Image processing | Color Management, 18bit+, individual RGB gamma and 90-degree rotation |
| Calibration | Pixel-level brightness and chroma calibration |
| Monitoring | Temperature, voltage, cabinet LCD and bit-error detection |
| Reliability | Loop backup, dual configuration backup and dual program backup |
Maximum Loading Capacity
The maximum loading capacity depends on the driver IC and source bit depth. The following limits apply when the MRV208-N is used with M3 controllers:
| Driver IC type | Video source | Maximum resolution per card |
|---|---|---|
| PWM driver IC | 8-bit | 512×512 at 60Hz |
| PWM driver IC | 10-bit | 512×256 at 60Hz |
| Common driver IC | 8-bit | 512×384 at 60Hz |
| Common driver IC | 10-bit | 512×192 at 60Hz |
Display Quality Features
- Color Management: helps maintain accurate, consistent color across an LED display.
- 18bit+: improves grayscale performance and detail, especially in low-brightness scenes.
- Pixel-level calibration: supports brightness and chroma correction for a more uniform display.
- Dark or bright line adjustment: allows quick correction of visible cabinet seams.
- Multi-batch adjustment: helps align the appearance of modules or cabinets from different production batches.
- Low latency and 3D: support demanding real-time and 3D LED display workflows.
- Individual RGB gamma: enables separate gamma adjustment for red, green and blue.
- 90-degree image rotation: supports portrait and rotated cabinet layouts.
Maintenance and Reliability
The MRV208-N includes tools that simplify commissioning, troubleshooting and ongoing cabinet maintenance:
- Calibration coefficient management and coefficient upload
- Data group mapping and Mapping 1.1
- Stored-image settings in the receiving card
- Temperature and voltage monitoring
- Cabinet LCD support and bit-error detection
- Firmware program readback and configuration parameter readback
- Loop backup for signal-path redundancy
- Dual backup of configuration parameters
- Dual program backup
Compatibility and Buying Guidance
The MRV208-N is intended for LED display cabinets that use HUB75E connections and compatible NovaStar control systems. Before ordering, confirm the cabinet connector layout, driver IC type, source bit depth, controller family, firmware and configuration file. These details determine the available loading capacity and functions in your specific LED screen.
Frequently Asked Questions
What is the NovaStar MRV208-N?
It is an LED display receiving card that receives control data and distributes it to LED modules through eight standard HUB75E connectors.
How many RGB data groups does the MRV208-N support?
The card supports up to 16 groups of parallel RGB data.
What is the maximum resolution of the MRV208-N?
With a PWM driver IC, an 8-bit source and an M3 controller, the maximum load is 512×512 pixels at 60Hz. Capacity changes with the driver IC and source bit depth, so use the loading table above for the applicable limit.
Does the MRV208-N support calibration and monitoring?
Yes. It supports pixel-level brightness and chroma calibration, calibration coefficient management, temperature and voltage monitoring, cabinet LCD functions and bit-error detection.
Can the MRV208-N rotate an image?
Yes. The receiving card supports 90-degree image rotation for compatible portrait or rotated LED cabinet designs.
MRV208-N Documentation
Download the official product document: NovaStar MRV208-N Receiving Card Specification (PDF).
