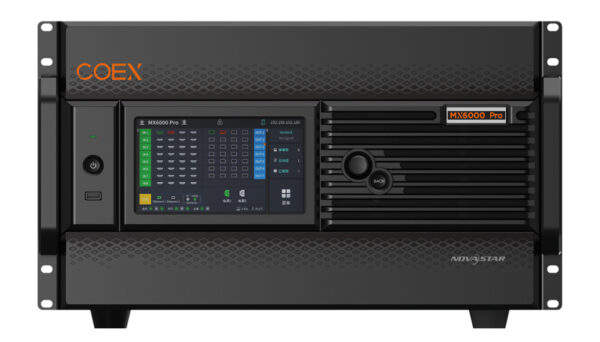

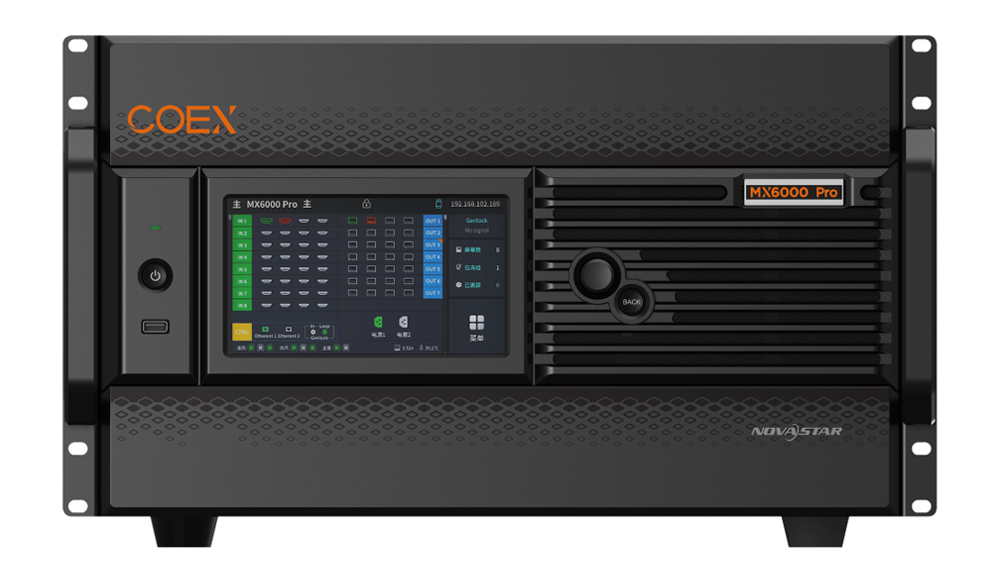

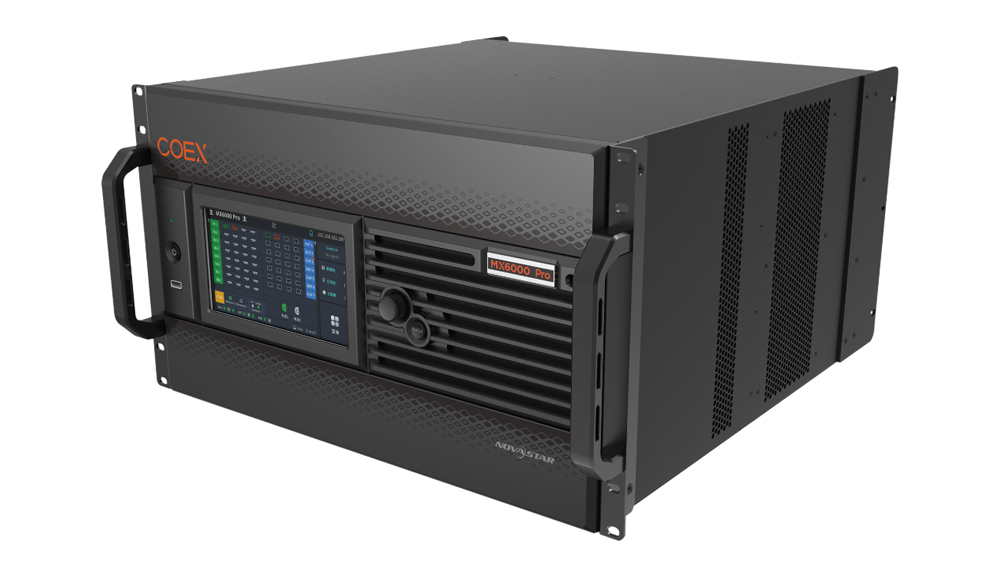

Novastar MX6000 Pro COEX Embedded Controller Server Features：

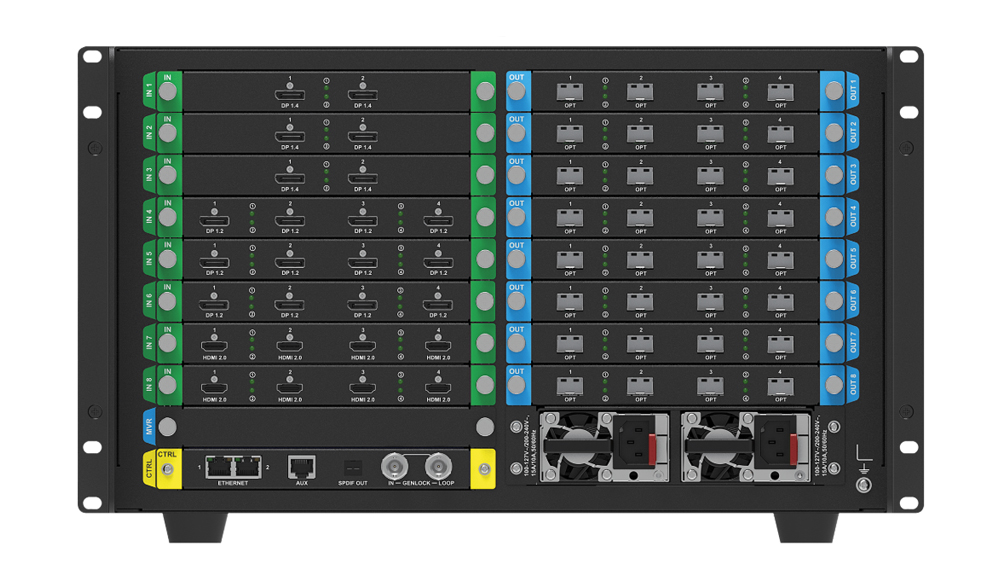

• Inputs and Outputs
  8x input card slots, users may choose input cards of the following 7 types:
  − 4K input cards
  4x HDMI 2.0, 4x DP1.2, 4x 12G-SDI
  − 8K input cards
  2x HDMI 2.1, 2x DP 1.4
  − VoIP cards (Video over IP)
  1x SMPTE ST 2110 (25G), 1x NDI
• Authentic 12bit video input
  12-bit/10-bit/8-bit supported
• 8x output card slots, users may choose input cards of the following 2 types:
  − CX_1x40G_Fiber output card
  Work with CVT8-5G fiber converter to achieve 5G transmission (capable of loading 2,600,000 pixels in a single Ethernet cable).
  − MX_4x10G_Fiber output card
  Work with CVT10 fiber converter to achieve 1G transmission (capable of loading 650,000 pixels in a single Ethernet cable).
• Supports real-time previewing and monitoring of the video source input and LED screen display status.
• Supports frame rates of up to 360 Hz (max frame rate is decided by the screen’s hardware configuration)

Download Specification：

Novastar MX6000 Pro COEX Embedded Controller ServerSpecification

Download Manual:

Novastar MX6000 Pro COEX Embedded Controller ServerManual
