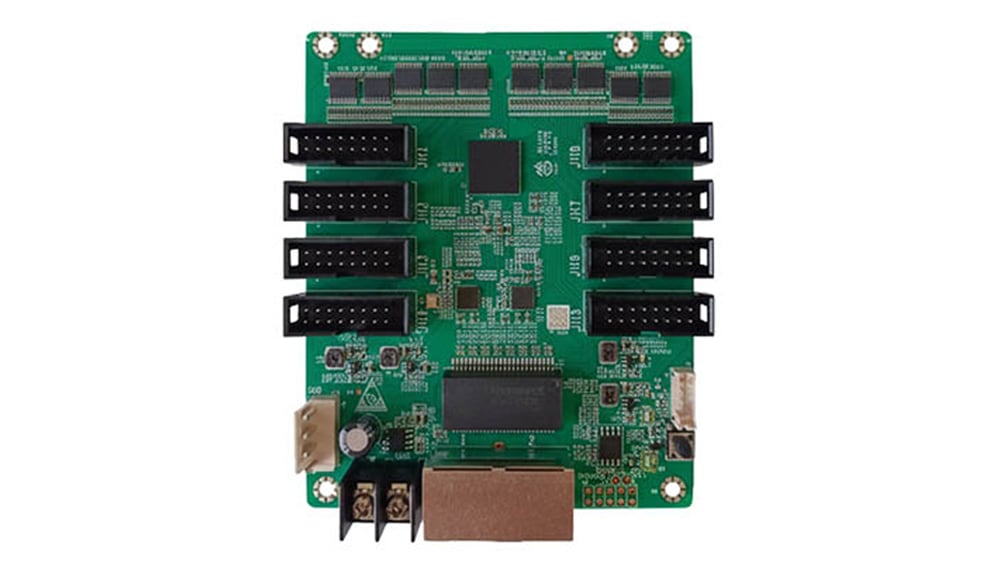

Match the eight HUB75E connectors
The NovaStar NV7508 passes data from a compatible LED controller to the modules in a cabinet. It has eight HUB75E connectors and supports up to 16 parallel RGB data groups.
Before replacing a card, compare its connector arrangement and cabinet mounting with the product photos. Keep the original receiving-card configuration file and check the controller, module driver IC and firmware before applying it to the replacement.
Key Specifications
| Model | NV7508 |
|---|---|
| Brand | NovaStar |
| Product type | Universal LED display receiving card |
| Output interfaces | 8 standard HUB75E interfaces |
| Parallel data capacity | Up to 16 groups of RGB parallel data |
| Image processing | 18-bit+ and color management |
| Calibration | Pixel-level brightness and chroma calibration |
| Display functions | Low latency, 3D, independent RGB gamma and 90-degree rotation |
| Reliability functions | Loop backup and dual program backup |
Image and service settings
Image Quality and Display Control
- Color management: Supports standard and custom color gamuts for consistent color reproduction.
- 18-bit+ processing: Helps produce smoother grayscale transitions and refined image detail.
- Pixel-level calibration: Supports point-by-point brightness and chromaticity correction.
- Fast line adjustment: Provides quick correction of dark or bright lines on an LED display.
- Flexible display setup: Includes multi-batch adjustment, low latency, 3D, independent RGB gamma adjustment and 90-degree image rotation.
Maintenance and Diagnostics
- Correction coefficient management and upload
- Data group mapping and Mapping 1.1
- Stored image settings on the receiving card
- Temperature and voltage monitoring
- Bit error detection
- Firmware program readback
- Configuration parameter readback
Operational Reliability
- Loop backup
- Dual program backup

Before replacing a card
The NV7508 is suitable for compatible indoor or outdoor LED display modules and cabinets that use HUB75E connections and require up to 16 groups of RGB parallel data. It is designed for installations where image consistency, low latency, calibration and maintenance diagnostics are important.
Compatibility note: Before ordering, confirm the LED module interface, scan configuration, pin mapping and required data groups. These settings must match the receiving card and cabinet design.
Browse more LED receiving cards or view other NovaStar products.
Frequently Asked Questions
What is the NovaStar NV7508?
The NV7508 is a universal LED display receiving card. It receives control data and distributes it to compatible LED modules through eight standard HUB75E interfaces.
How many HUB75E interfaces does the NV7508 have?
It has eight standard HUB75E interfaces and supports up to 16 groups of RGB parallel data.
Does the NV7508 support brightness and color calibration?
Yes. It supports pixel-level brightness and chroma calibration, correction coefficient management and correction coefficient upload.
Does the NV7508 support low latency and 3D?
Yes. Its display functions include low latency and 3D, along with independent RGB gamma adjustment and 90-degree image rotation.
What should I check before buying the NV7508?
Check the HUB75E interface, module pin mapping, scan configuration and number of RGB data groups required by your LED cabinet. Contact us with your module or cabinet details if you need help confirming compatibility.
