P8 Dual Maintenance LED display Module 320x320mm Notice before order
1) Parts included: LED module, signal cable between modules, power cable between module and power supply.
2) Buy modules of same batch: to avoid brightness&color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.
3) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
Features of P8 SMD3535 320x320mm Outdoor Dual Maintenance LED Module:
1) Dual-maintenance, from both the front side and the rear side. People usually use its front maintenance function.
2) Easy maintenance, easy to take the modules with a 4mm hexagonal screwdriver.
3) No screws, easier to take the modules and mount the modules on the cabinet.
4) 8mm pixel pitch with SMD, perfect solution for semi-outdoor advertising LED screen and outdoor rental LED screen.
5) New plastic cover with new mold, smaller module gaps and better screen flatness.
6) Reasonable PCB design, reliable and long life time.
Applicable situations of P8 SMD3535 Outdoor Dual Maintenance LED Module:
Outdoor LED signs requiring front maintenance
Commercial video screens with small sizes
Double face LED signs
Small LED banner signs
Outdoor rental LED screen requiring fast maintenance
PCB Versions of P8 SMD3535 Outdoor Dual Maintenance LED Module:
| P8U4S-3535RGB40X40-Y1302-SWH |
Parameters of P8 SMD3535 Outdoor Dual Maintenance LED Module:
| Item | Specification |
| LED type | SMD3535 |
| Pixel pitch | 8mm |
| Pixel configuration | 1R1G1B |
| Module Size | 320x320mm |
| Module resolution | 40x40pixels |
| Density | 15,625 pixels/ ㎡ |
| Driving Mode | 1/4 duty |
| Brightness | ≥6500CD/ ㎡ |
| Viewing angle | H:120°, V:120° |
| Best viewing distance | 8m—80m |
| Working voltage | 5V |
| Power consumption | 78W |
| Module weight | 2.5KG |
| >Protection grade | Front: IP65 |
| Working Temperature | -20 ～60℃ |

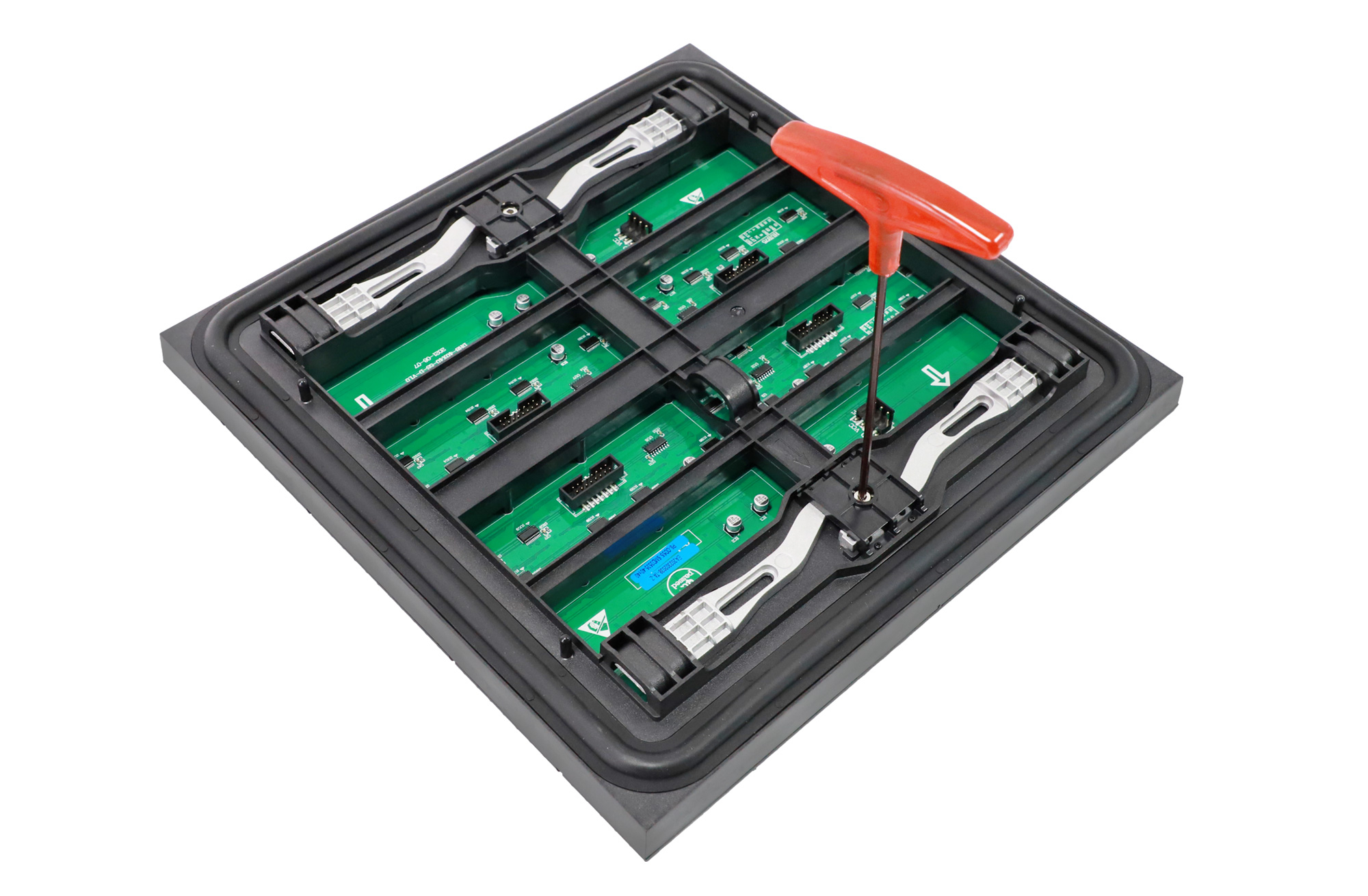

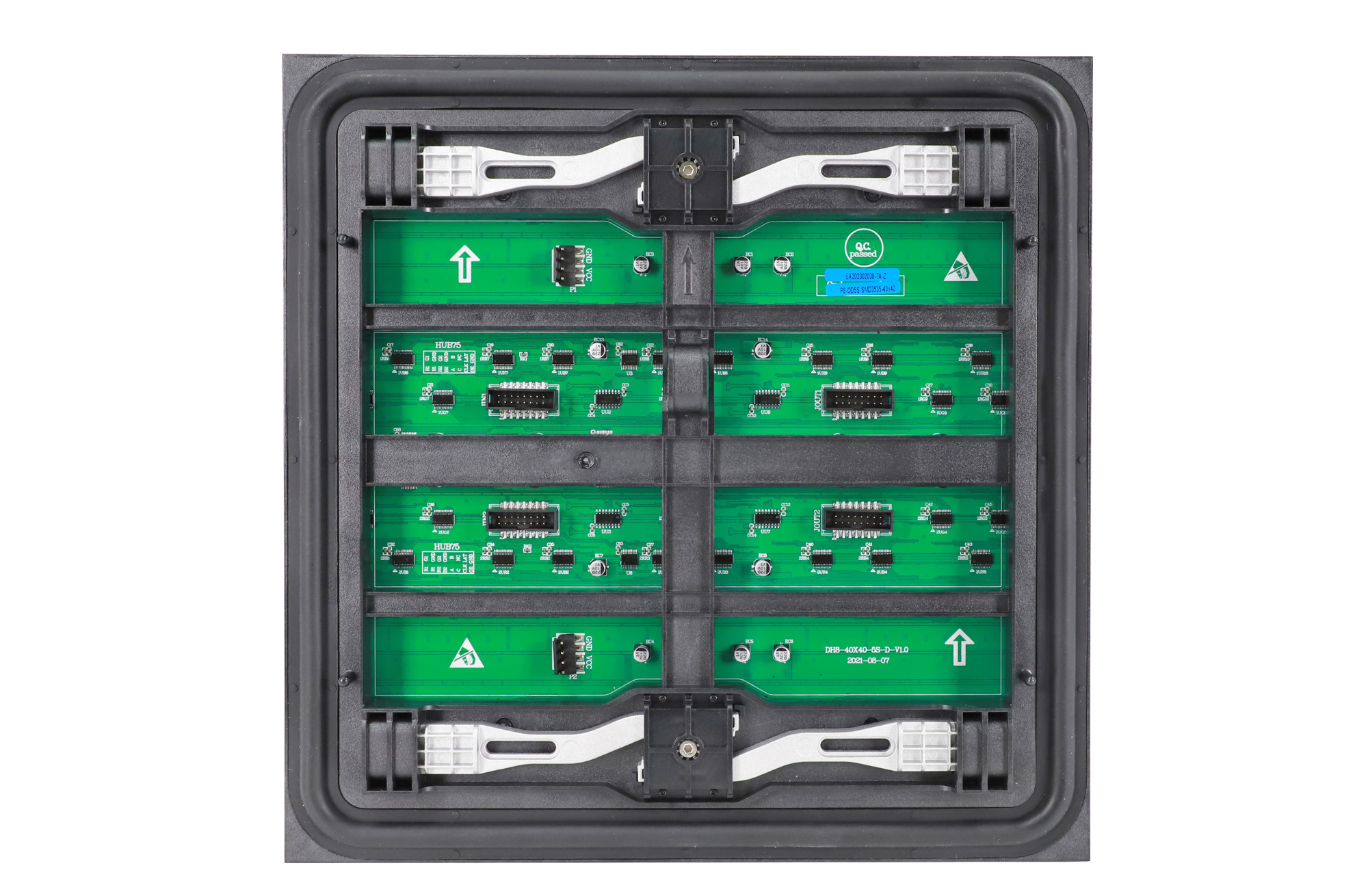

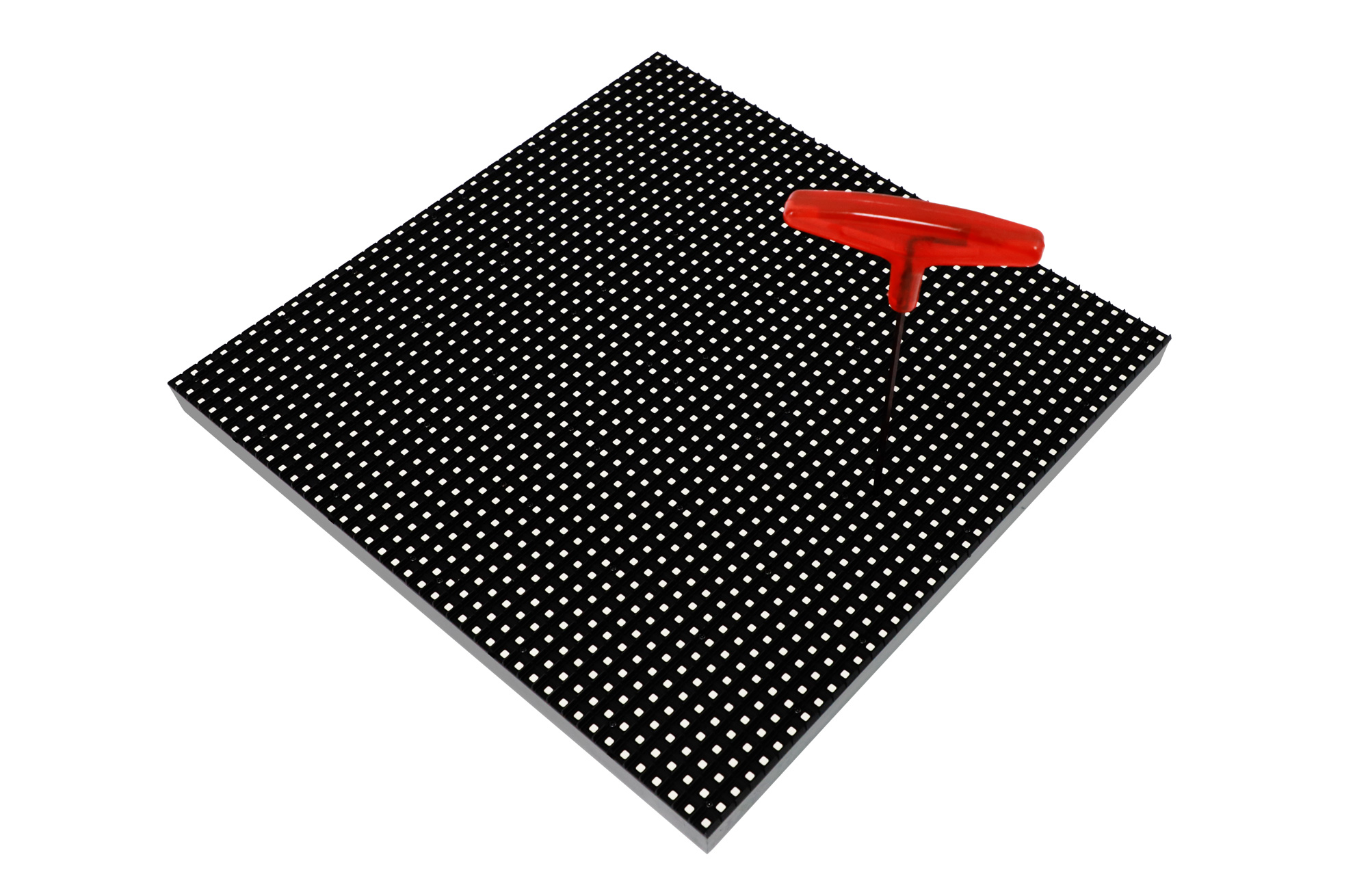

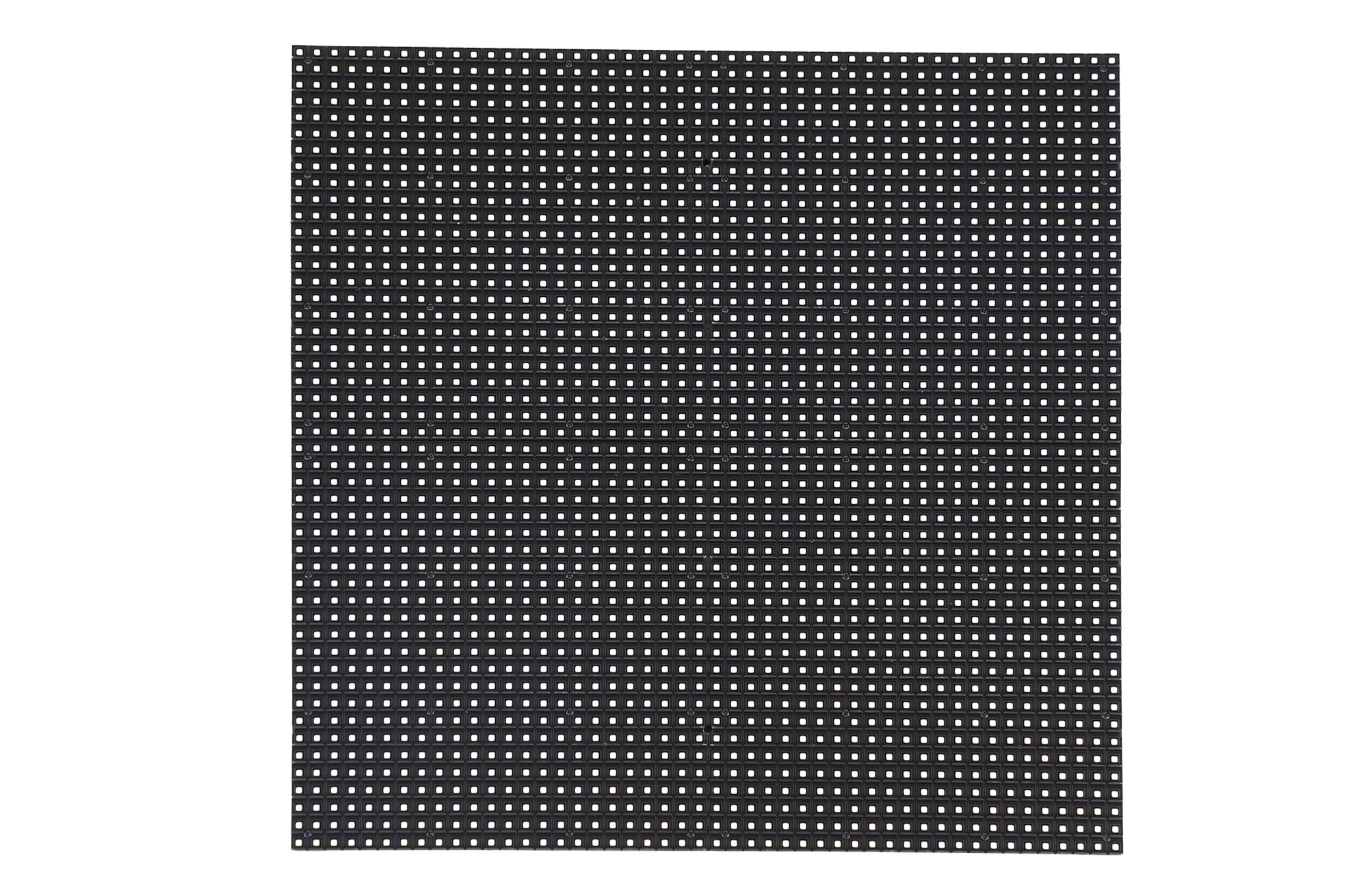

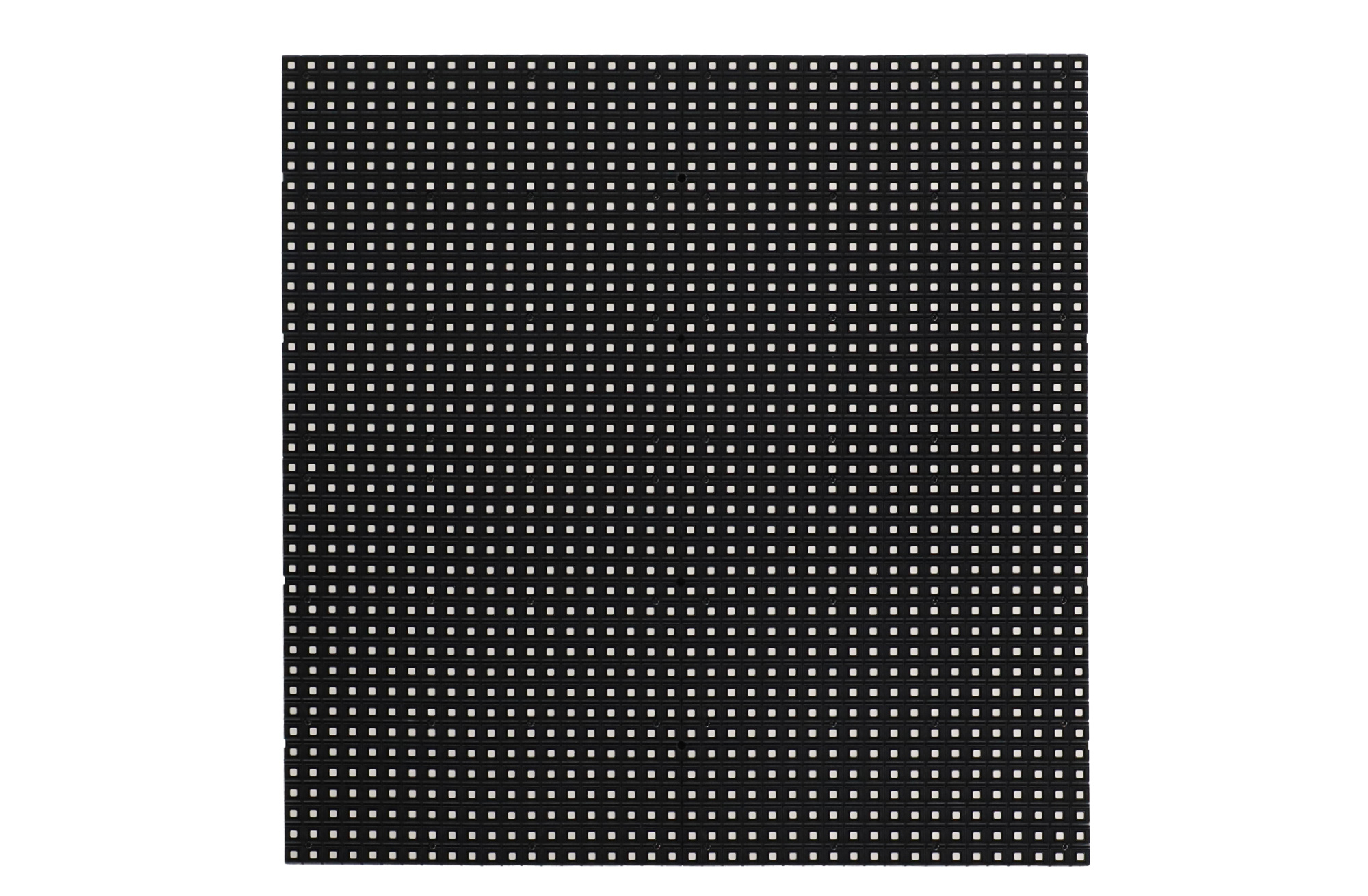

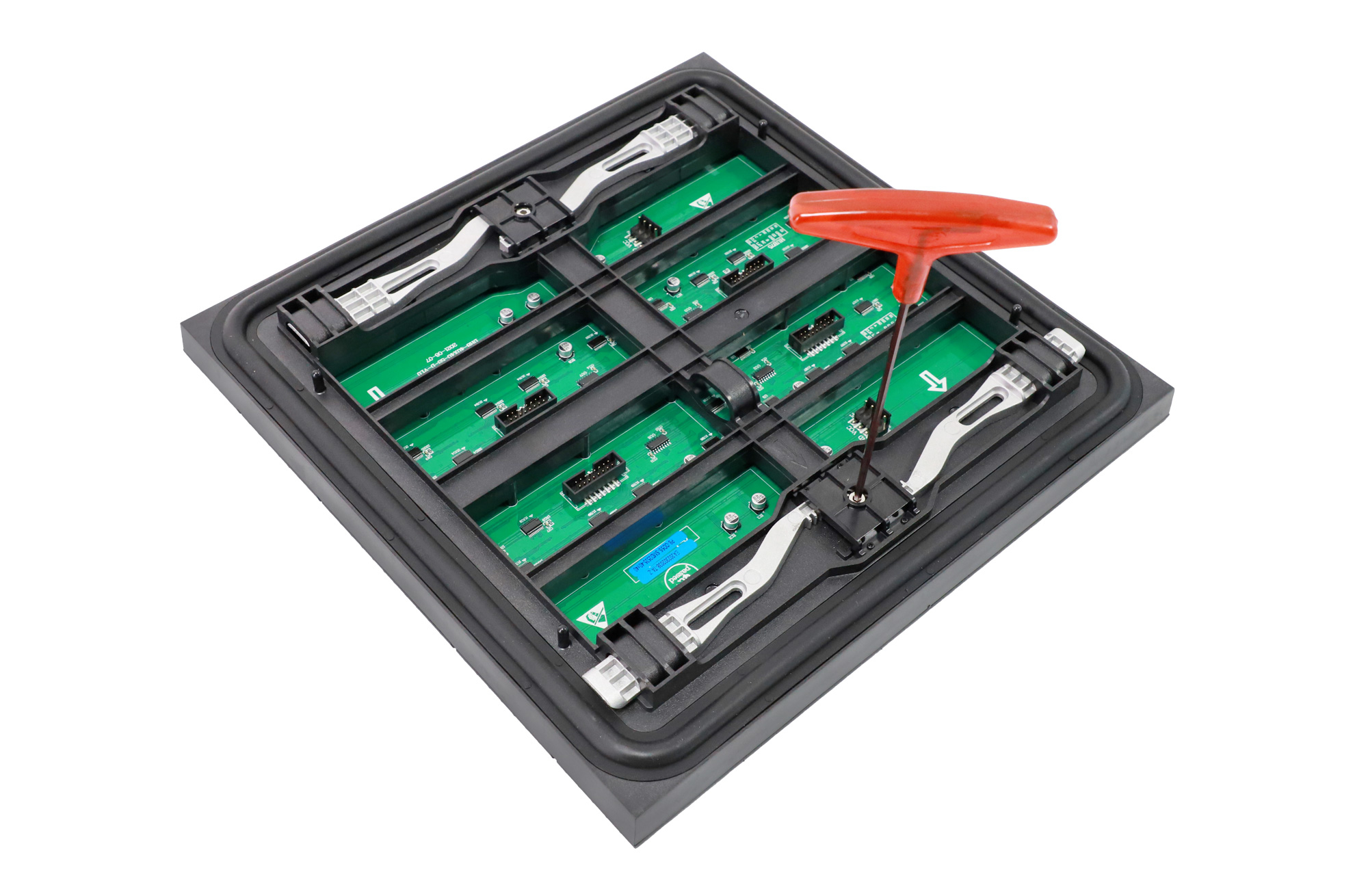

More Pictures of P8 Dual Maintenance LED display Module 320x320mm
Download Specification
P8 Dual Maintenance LED display Module 320x320mm Specification
