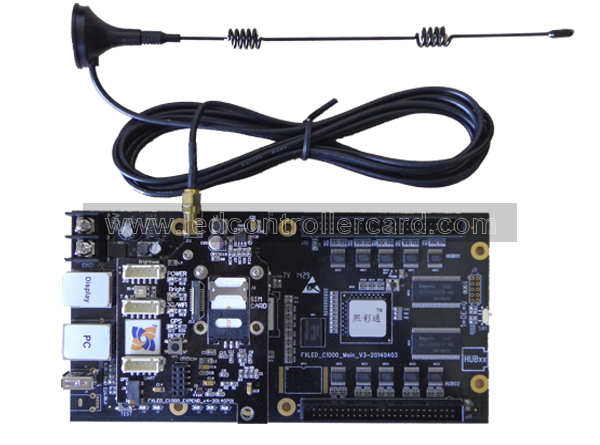

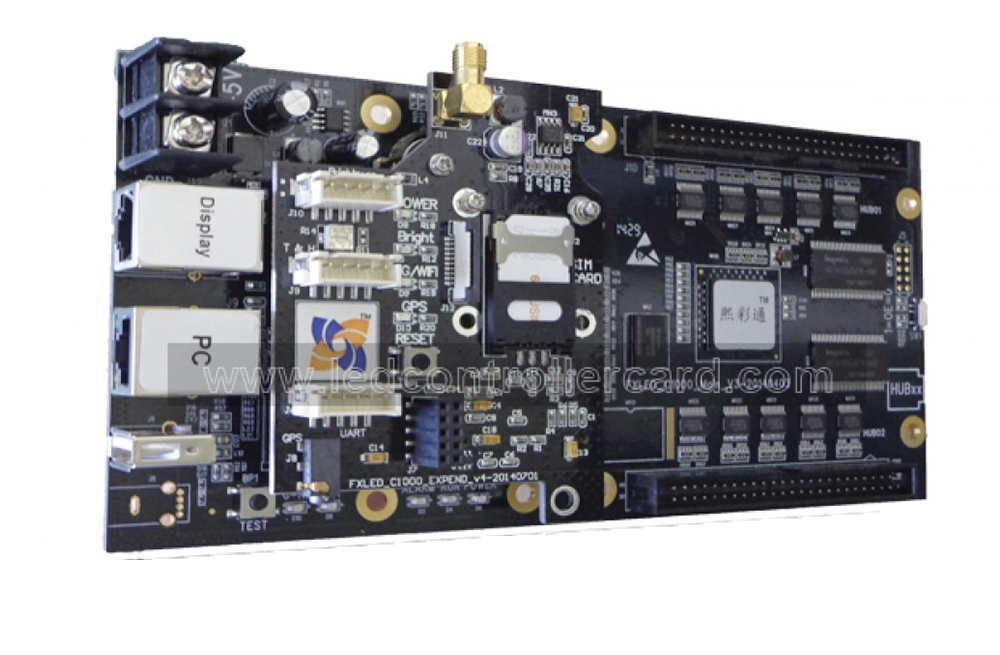

SheenColor T3 Wireless LED Advertising Controller
The SheenColor T3 is designed for roadside LED signs and advertising screens. It supports multiple D10 receiving cards, with a listed maximum of 307,200 pixels and a 640 × 480 screen layout. Windows, Android and iOS terminals are listed for remote management.
SheenColor T3 Specifications
| Parameter | Specification |
|---|---|
| Maximum pixel capacity | 307,200 pixels |
| Listed screen layout | 640 × 480 |
| Receiving card | D10; multiple cards supported |
| Grayscale | 65,536 levels |
| Communication listed | Network access, USB, 3G and WiFi |

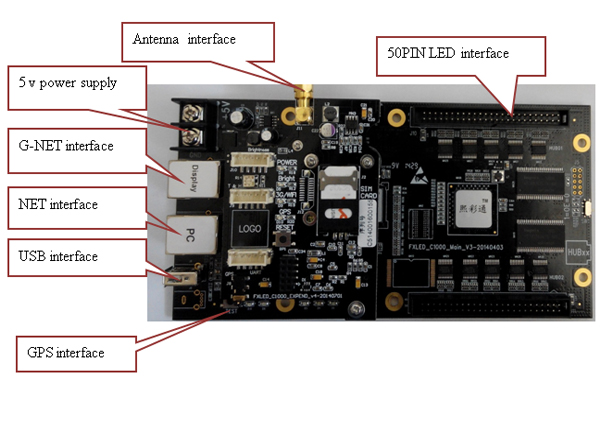

| Power connection | 1; external 5 V DC supply |
| G-NET interface | 1; receiving-card connection |
| NET interface | 1; user PC connection |
| USB interfaces | 2; USB flash drive, USB sound card and similar peripherals |
| 50-pin LED interfaces | 2; connect LED interface boards |
| Antenna interface | 1; external 3G antenna in the listed interface description |
| GPS interface | 1; connects a GPS module |
| Storefront options | T3 with 3G module or T3 with 4G module |
| Storage entry | Listed as “4G”; capacity unit requires confirmation |
Ports, Audio and Configuration
Use the listed port roles when planning the system: G-NET is identified for receiving-card connection, while NET is identified for the PC. Confirm the wiring of the two 50-pin LED interfaces for the intended interface boards.
USB sound card output, automatic brightness adjustment and real-time temperature or humidity display are listed. Confirm the necessary sound card, active amplifier and sensing accessories. Choose the required cellular option; the detailed interface description describes the 3G configuration, so confirm the corresponding hardware details for a 4G order.
Frequently Asked Questions
What is the T3 maximum pixel load?
The listed maximum is 307,200 pixels, with 640 × 480 specified as a suitable screen layout.
Does T3 work with D10 receiving cards?
Yes. The description supports connecting multiple D10 receiving cards. The G-NET interface is identified as the receiving-card connection.
What is the difference between NET and G-NET on this listing?
The interface table identifies NET for the user PC and G-NET for the receiving card.
How many USB and 50-pin interfaces are listed?
The T3 interface table lists two USB interfaces and two 50-pin LED interfaces.
Can I order the T3 with a 4G module?
Yes. The storefront offers T3 with a 3G module or a 4G module. Confirm the selected module and network requirements before purchase.
