Sysolution S20 Pro DVI Synchronous Sending Card
The Sysolution S20 Pro sends a DVI video source to an LED display through two Gigabit network outputs. Its total LED load is 1.3 million pixels, with a limit of 650,000 pixels on each output. It is intended for synchronous LED display systems that use a live video source.
Technical Specifications
| Parameter | Specification |
|---|---|
| Video input | 1 × DVI |
| LED data outputs | 2 × Gigabit network ports |
| Total LED load | 1.3 million pixels |
| Load per network output | 650,000 pixels |
| Control connection | USB; supports cascading sending cards on the same PC |
| Audio input | 1 × 3.5 mm jack |
| Receiving cards per output | 240 |
| Operating voltage | 3.5–6 V |
| Working current | 0.6 A typical; 1.0 A maximum |
| Operating temperature | −10°C to +65°C |
| Extreme operating temperature | −20°C to +75°C |
| Operating humidity | 0%–95% |
Supported Input Resolutions
The specification lists 640 × 480, 800 × 600, 1024 × 768, 1280 × 1024, 1280 × 720, 1280 × 800, 1366 × 768, 1600 × 1200, 1920 × 1080, 2048 × 1152 and 2560 × 960, with resolution readback support.
Input resolution and LED loading capacity are separate limits. For example, accepting a 1920 × 1080 input does not increase the card’s 1.3-million-pixel LED capacity. Plan the screen mapping and the allocation to each output within the specified limits.
Installation Planning
The S20 Pro supports chromaticity restoration and DVI dual backup. Check the required system connections, receiving-card compatibility and power connection before installation. Use the exact S20 Pro document below when checking interfaces; specifications for another S20 model should not be substituted.

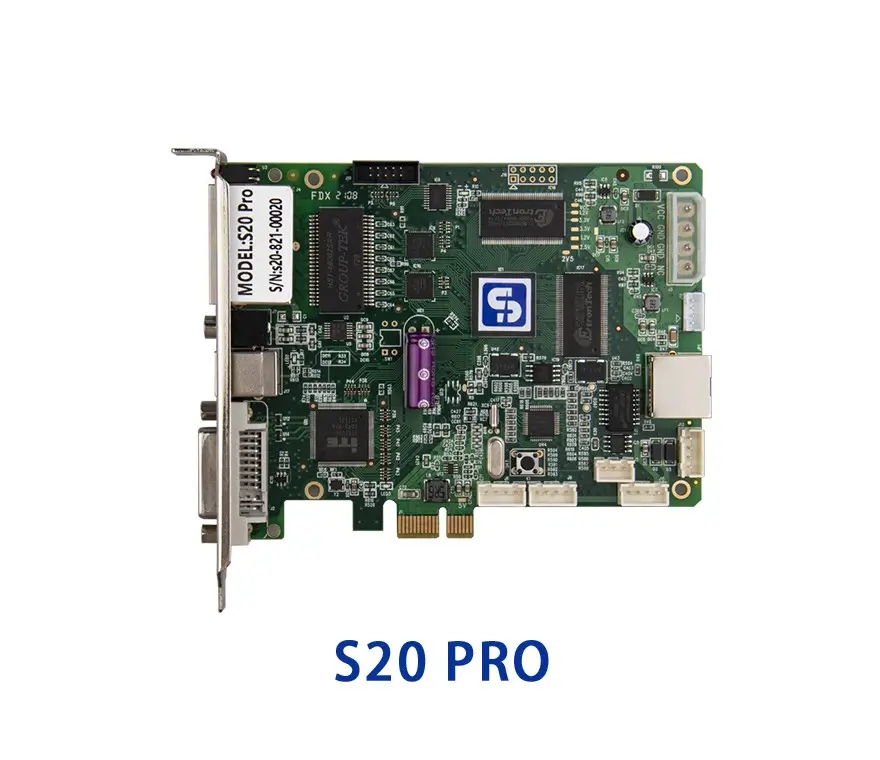

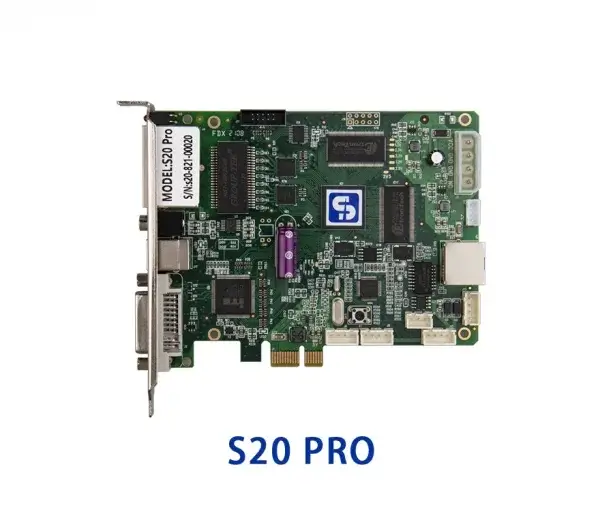

Product Image
Download Specification
Sysolution S20 Pro DVI Sending Card Specification (PDF)
Frequently Asked Questions
How many pixels can the S20 Pro control?
The total load is 1.3 million pixels per card. Each of its two network outputs supports up to 650,000 pixels.
Does the S20 Pro use DVI or HDMI input?
The specified video input is one DVI connection. The product specification does not list an HDMI input.
Does 1920 × 1080 input support mean it can drive that many LED pixels?
No. The supported input timing is separate from the LED output load. The total LED load remains 1.3 million pixels, subject to the per-output limit.
What is the USB connection used for?
The specification describes USB for cascading multiple sending cards on the same PC. It is not listed as a USB media playback input.
Does the S20 Pro support audio?
Yes. It has one 3.5 mm audio input. Check the complete display system’s audio path when planning an installation.
