Sysolution S30 LED Video Processor with USB Playback
The Sysolution S30 is a 2-in-1 LED video processor with integrated sending outputs and USB media playback. It can connect directly to receiving cards through two Ethernet outputs, while front-panel controls provide access to input selection and display settings.
Technical Specifications
| Parameter | Specification |
|---|---|
| Total LED load | 1.3 million pixels |
| LED data outputs | 2 × Ethernet |
| Capacity per output | 650,000 pixels |
| Video inputs | 1 × HDMI 1.3, 1 × DVI, 1 × VGA, 1 × CVBS |
| USB video playback | 1080p at 30 fps |
| USB drive file systems | NTFS, FAT32 and FAT16; exFAT is not supported |
| Zoom modes | Full-screen, point-to-point and custom |
| User scenes | 8 |
| Audio | Independent 3.5 mm input and output |
| Power input | AC 100–240 V, 50/60 Hz |
| Rated power | 11 W |
| Dimensions | 430 × 251 × 44 mm (L × W × H) |
Playing Media and Switching Sources
USB playback supports video and pictures. Check the file system, codec and frame rate before preparing media for the display. A video file’s resolution does not change the 1.3-million-pixel LED loading capacity.
For live sources, select HDMI, DVI, VGA or CVBS as appropriate. The S30 supports seamless switching or fade transitions, window positioning, size adjustment and cropping. Save frequently used layouts in the eight user-scene slots.
Screen Setup
The front-panel LCD, knob and buttons support screen configuration without requiring a computer for the supported setup workflow. Confirm receiving-card compatibility, cabinet mapping and per-output load before commissioning. Keep the existing configuration when replacing a processor.

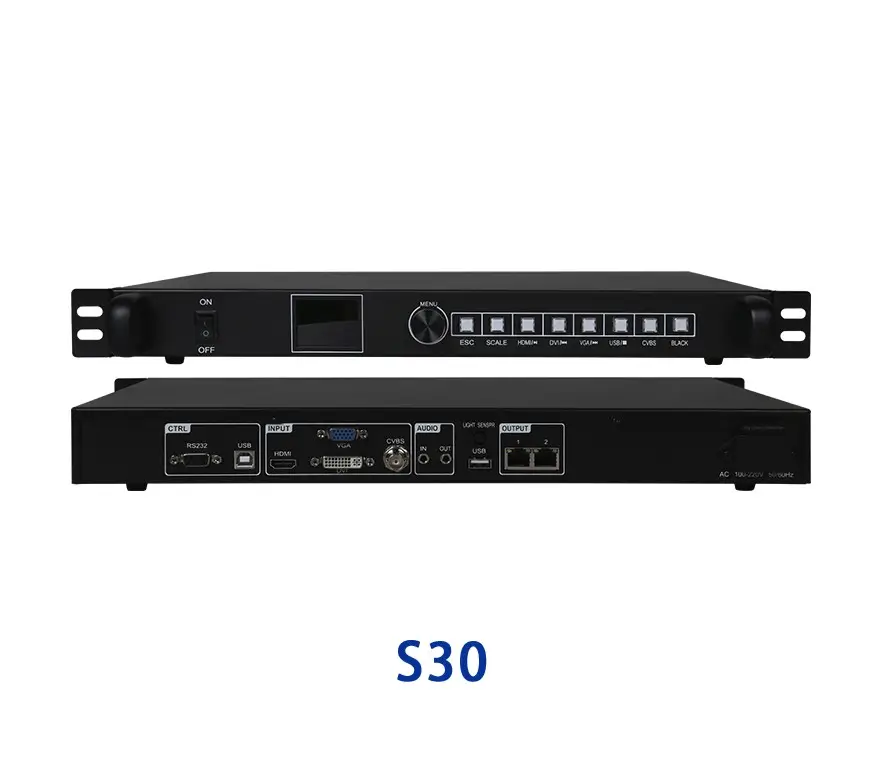

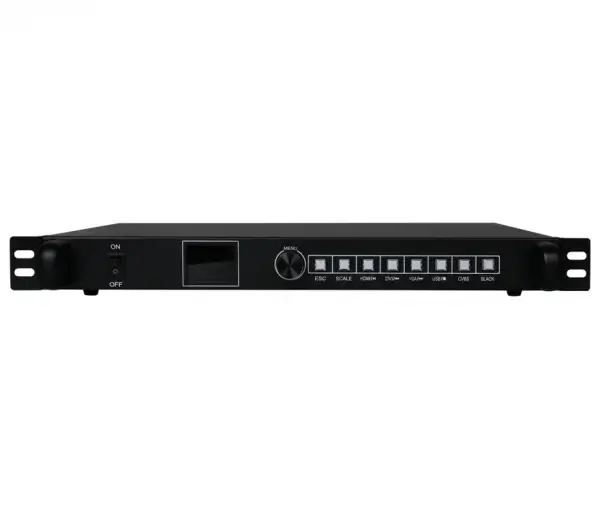

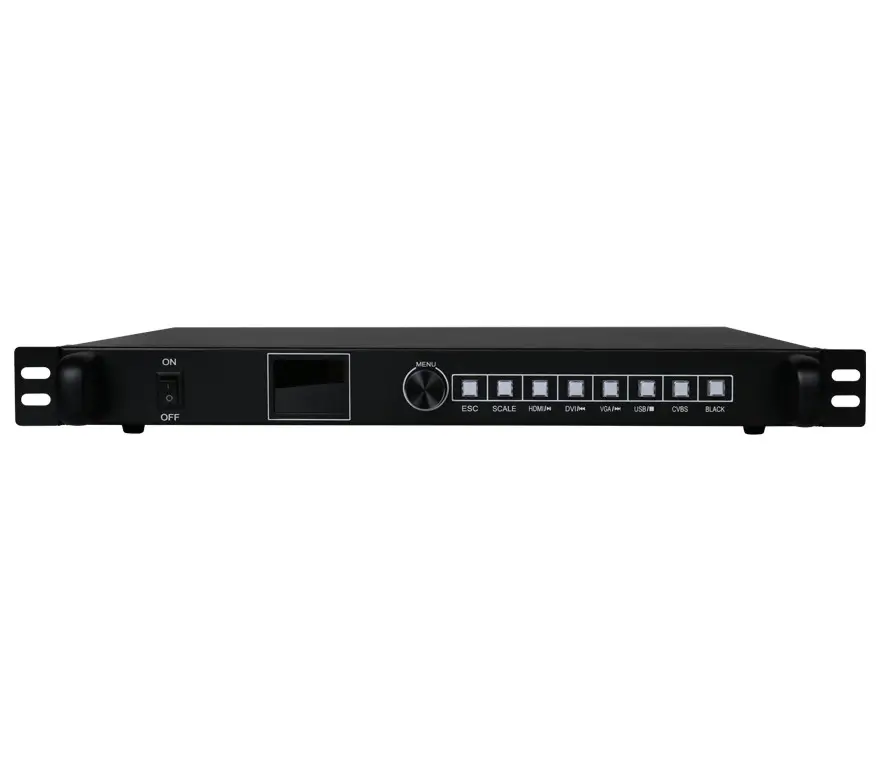

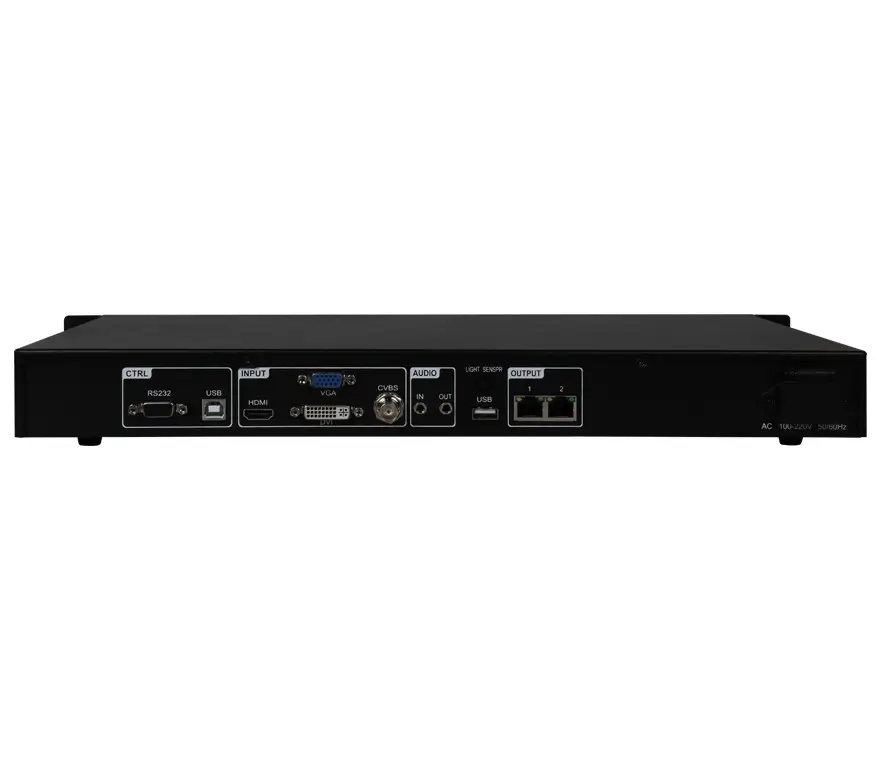

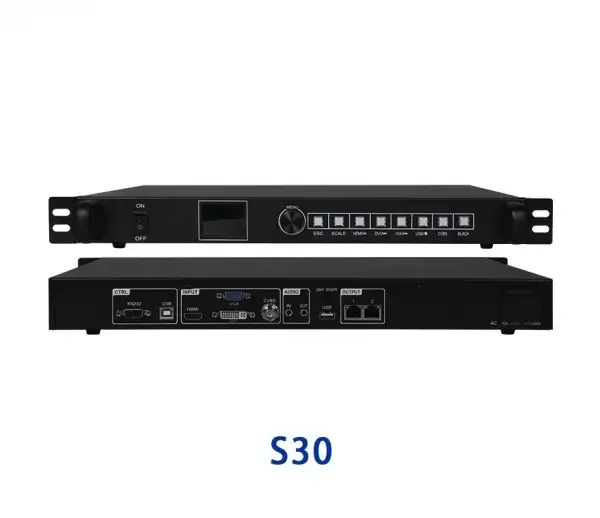

Product Images
Download Specification
Sysolution S30 LED Video Processor Specification (PDF)
Frequently Asked Questions
Can the S30 play video from a USB drive?
Yes. The specification lists USB video playback up to 1080p at 30 fps, along with image playback. Check the supported file formats before use.
Does the S30 support exFAT USB drives?
No. The specification lists NTFS, FAT32 and FAT16 and explicitly excludes exFAT.
How many pixels can the S30 control?
Its total LED loading capacity is 1.3 million pixels, with up to 650,000 pixels per Ethernet output.
What zoom modes are available?
The S30 supports full-screen zoom, point-to-point display and custom zoom. Window position and size can also be adjusted.
Can I save a screen layout for later use?
Yes. The S30 supports eight user scenes that can be saved as templates and recalled.
