Sysolution S50S LED Video Processor
The Sysolution S50S combines video processing with LED display control. It supports four simultaneous images and eight Gigabit Ethernet outputs, making its layout controls useful for displays that need several sources on screen.
Technical Specifications
| Parameter | Specification |
|---|---|
| Total LED capacity | 5.2 million pixels |
| LED outputs | 8 × Gigabit Ethernet (RJ45) |
| Capacity per output | 650,000 pixels |
| Simultaneous images | 4 |
| Maximum output width | 7680 pixels, subject to total load |
| Maximum output height | 3840 pixels, subject to total load |
| Video inputs | 2 × HDMI; 1 × DVI; 1 × DP; 1 × VGA |
| Audio input | 1 |
| Power input | AC 100–240 V, 50/60 Hz |
| Rated power | 25 W |
| Operating temperature | 0–45°C |
| Dimensions | 483.5 × 300.3 × 66.7 mm (L × W × H) |
Input Timing and Display Layout
The DisplayPort input is specified for 3840 × 2160 at 60 Hz. The HDMI inputs list 1920 × 1080 at 60 Hz and 3840 × 1080 at 60 Hz; check the complete timing table before selecting a source connection.
Plan the LED screen within the 5.2-million-pixel total and the limit of each output. The maximum width and height are separate limits; they are not a 7680 × 3840 full-screen capacity.
Templates and Everyday Operation
Store templates for layouts that will be used repeatedly, then recall them for the required source arrangement. The S50S also provides seamless switching, audio/video switching, volume adjustment, scheduled tasks, one-touch blackout, a test pattern and key lock.
When replacing an existing processor, check the S50S model, input timings, receiving-card compatibility and saved screen configuration before connecting it to the LED cabinets.

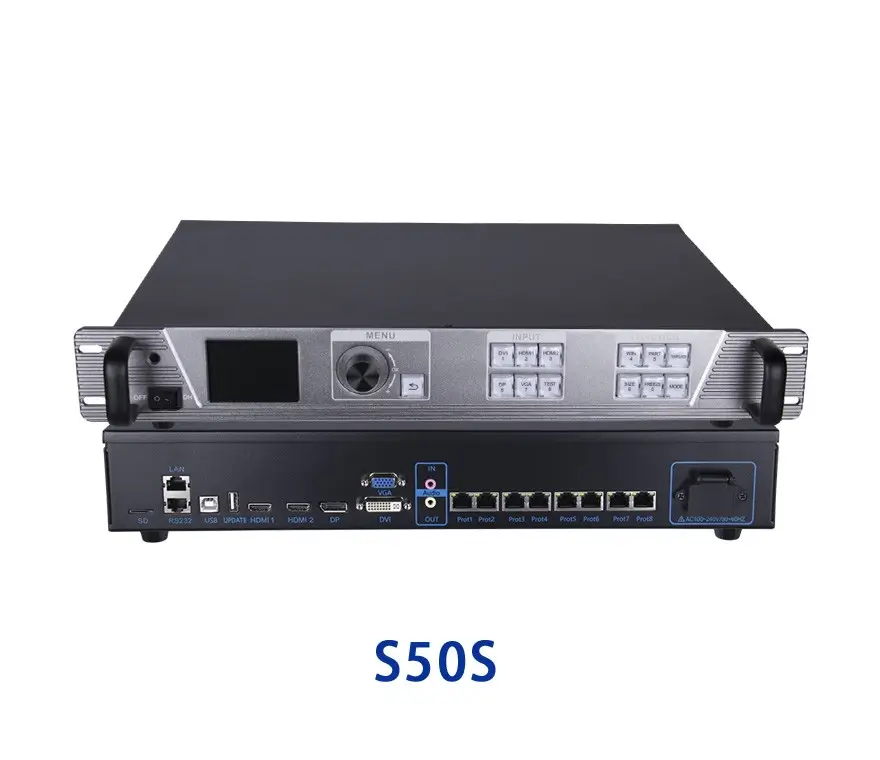

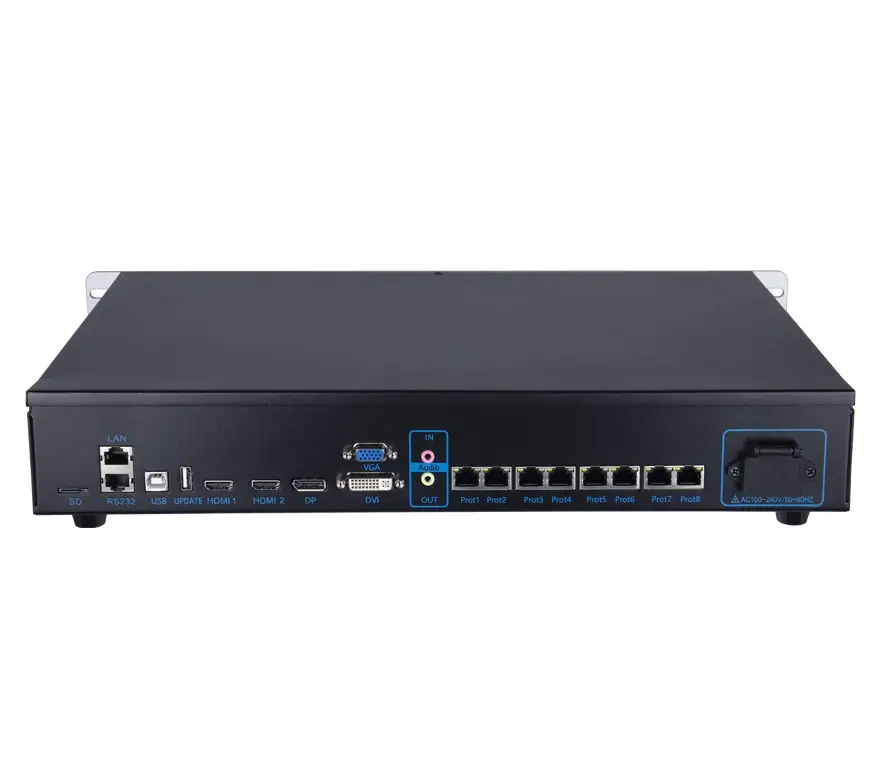

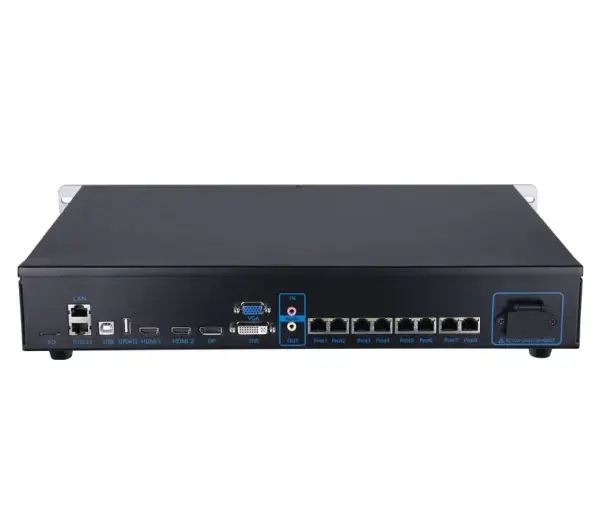

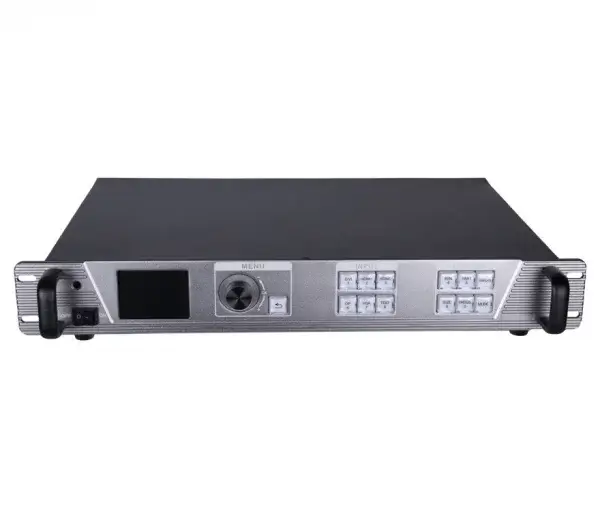

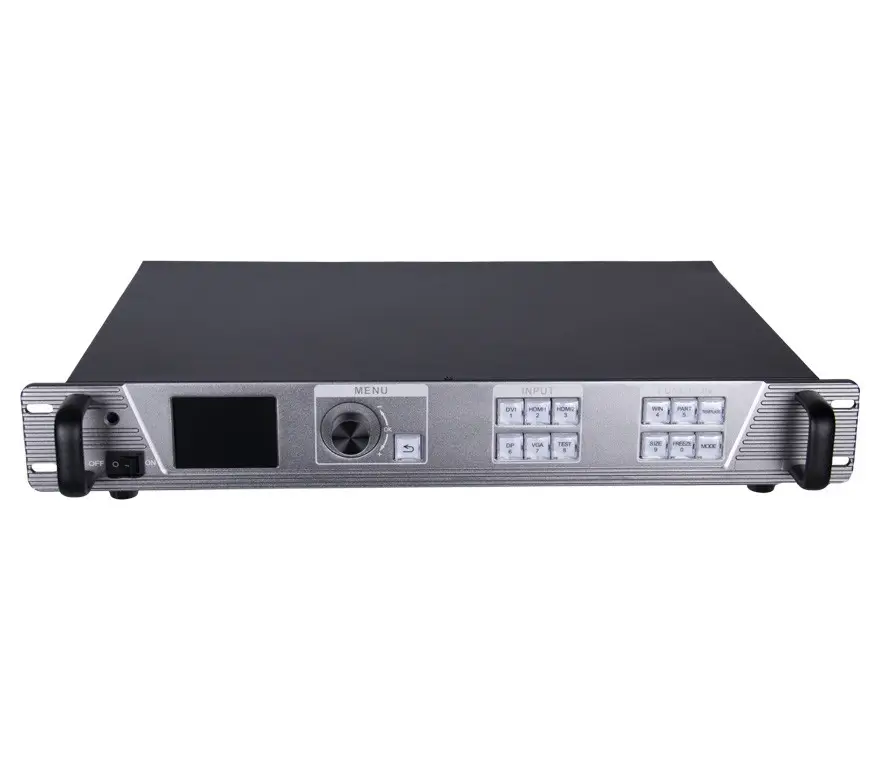

Product Images
Download Specification
Sysolution S50S LED Video Processor Specification (PDF)
Frequently Asked Questions
How many Ethernet outputs does the S50S have?
It has eight Gigabit Ethernet outputs, with a total capacity of 5.2 million pixels and up to 650,000 pixels per output.
How many images can the S50S display at once?
The specification lists four simultaneous images. Layouts can be saved and recalled using templates.
Which S50S input supports 3840 × 2160 at 60 Hz?
The DisplayPort input lists that timing. HDMI input timings are listed separately and should not be treated as identical to DisplayPort.
Can the S50S drive 7680 × 3840 pixels at the same time?
No. Those are separate width and height limits. The configured LED screen must fit within 5.2 million pixels and the per-port capacity.
What should I check before replacing another processor with an S50S?
Confirm the exact model, source connectors and timings, LED screen resolution, receiving cards and cabinet mapping. Keep a copy of the current configuration before replacement.
