Sysolution S60S Multi-Window LED Video Processor
The Sysolution S60S is a 2-in-1 video processor for LED displays that need several video windows on one screen. It combines source selection, image scaling and LED output in one unit, with three HDMI inputs, one DVI input and 12 Gigabit Ethernet outputs.
Video Layout and Screen Control
Create layouts with up to eight display windows. Window position and size can be adjusted, with overlay, cropping, local enlargement and zoom controls. Video sources can be switched without a black-screen transition, according to the listed features. The S60S also supports an engineering time lock.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | S60S |
| Product type | 2-in-1 LED video processor |
| Video inputs | 3 × HDMI; 1 × DVI |
| LED outputs | 12 × Gigabit Ethernet |
| Display windows | Up to 8 |
| Listed input timings | 3840 × 2160 @ 60 Hz; 7680 × 1080 @ 60 Hz |
| Single-port dimension limits | Maximum width 3840 pixels; maximum height 3840 pixels (separate limits) |
| Listed total pixel capacity | 7.8 million in the feature list; 6.5 million in the product introduction. Hardware revision confirmation required. |
| Image adjustment | Scaling, cropping, local enlargement, window positioning and overlay |
Capacity clarification: Published S60S descriptions contain conflicting total load values. Confirm the capacity for the supplied unit before designing the LED canvas. Input resolution and separate maximum width or height values do not establish the supported output pixel area.
Frequently Asked Questions
How many Ethernet outputs does the S60S have?
The S60S has 12 Gigabit Ethernet outputs for the LED display.
Which video inputs are listed for the S60S?
The listed inputs are three HDMI connections and one DVI connection.
Can the S60S show multiple video windows?
Yes. The listed features support up to eight windows with adjustable position, size, overlay and zoom.
Is the S60S rated for 6.5 million or 7.8 million pixels?
Both values appear in the published S60S material: 6.5 million in the introduction and 7.8 million in the feature list. Confirm the supplied hardware revision and required screen layout before relying on either value.
Does 4K input mean the LED output can use the same resolution?
No. The listed 3840 × 2160 @ 60 Hz timing describes the video input. The LED canvas must also satisfy the confirmed total load and output-port limits.

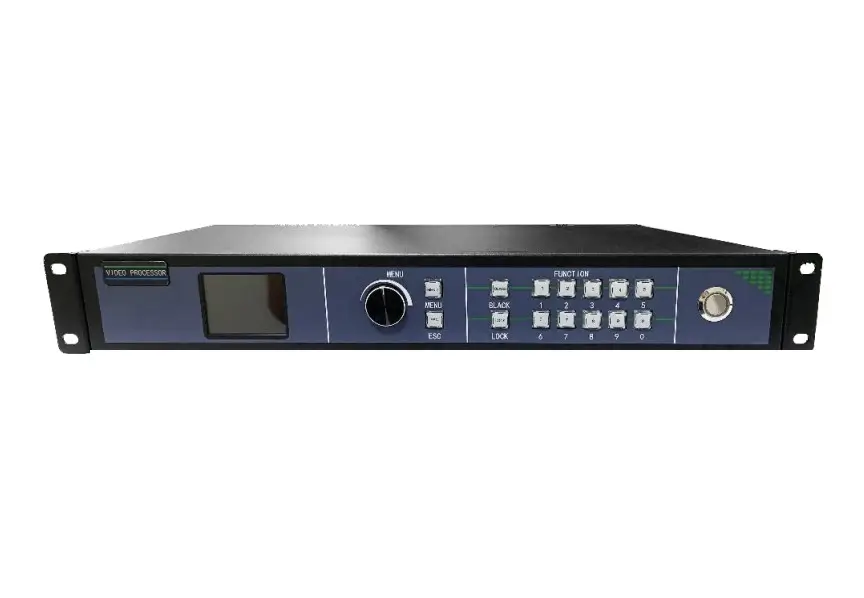

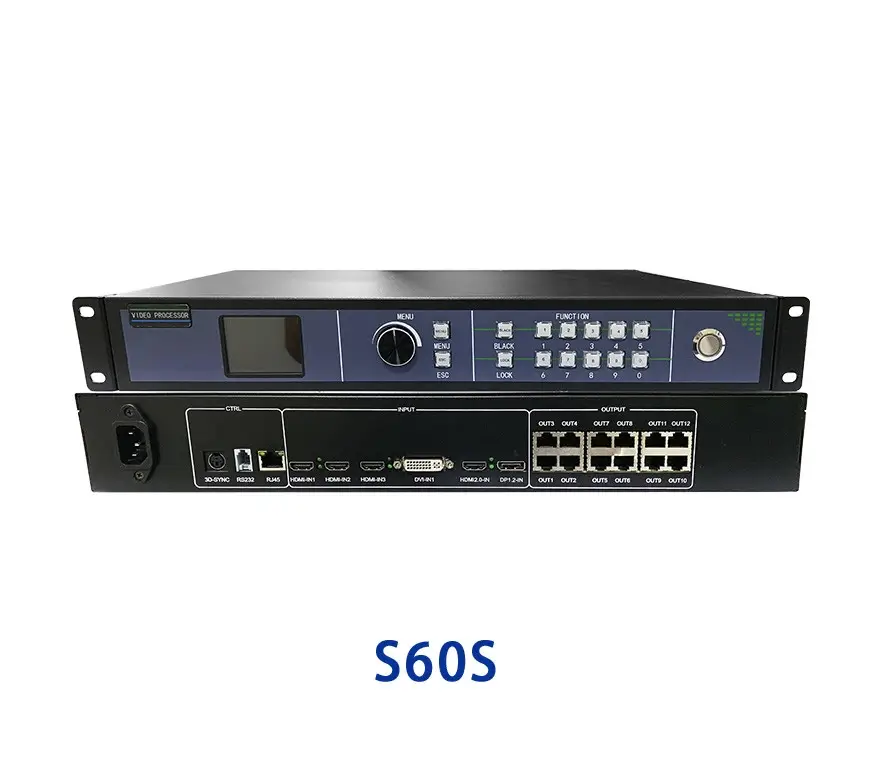

Product Images
