Sysolution Y12 Android LED Display Controller
The Sysolution Y12 integrates LED sending and receiving functions for direct module control. Its cloud publishing features suit distributed signs where content, schedules and display settings need to be managed remotely. Wired networking, onboard Wi-Fi and optional 4G provide different deployment choices.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Y12 |
| CPU | Quad-core Cortex-A35, 1.5 GHz |
| Operating system | Android 9.0 |
| Memory and storage | 1 GB LPDDR3; 8 GB eMMC |
| Listed LED capacity | 250,000 pixels |
| Maximum dimension | 1920 pixels wide or 1920 pixels high; subject to total load |
| HUB75E outputs | 12 ports standard; special 16-port configuration |
| Communication | Ethernet, Wi-Fi, USB drive; optional 4G |
| Operating voltage | 12 V |
| Operating temperature | −40°C to +95°C |
| Environmental sensor | External R68 via RS485 |
| Software | LedOK Express; LedOK Lite; AIPS4.0 |
Port Configuration and Accessories
The original product listing describes 16 HUB75 outputs. The linked specification identifies 12 HUB75E ports as standard and 16 as a special configuration. Confirm the supplied board and adapter arrangement when ordering or replacing a controller.
External GPS positioning and timing modules support synchronized playback. An R68 environmental sensor can display readings through RS485 without secondary development. Select the optional 4G module for the country of installation; Wi-Fi supports AP and Station modes. Remote switching functions can control the screen and street-light system when the appropriate equipment is connected.
Frequently Asked Questions
Does the Y12 have 12 or 16 HUB75 ports?
The linked Ver.2.1 datasheet lists 12 HUB75E ports as standard and a special 16-port configuration. This listing originally described 16 outputs. Confirm the supplied configuration before ordering.
Does the Y12 require a separate LED receiving card?
Its integrated sending and receiving design supports direct HUB75 module connection. The modules and scan configuration must match the selected board.
Is 4G included with the Y12?
4G is optional. Select the module for the country and network of use. The card also supports onboard Wi-Fi and wired networking.
Can the Y12 synchronize multiple screens?
Yes. External GPS positioning and timing modules are supported for synchronized multi-screen playback.
Can the Y12 show environmental information?
Yes. It supports an external R68 environmental sensor through RS485 without secondary development for that function.

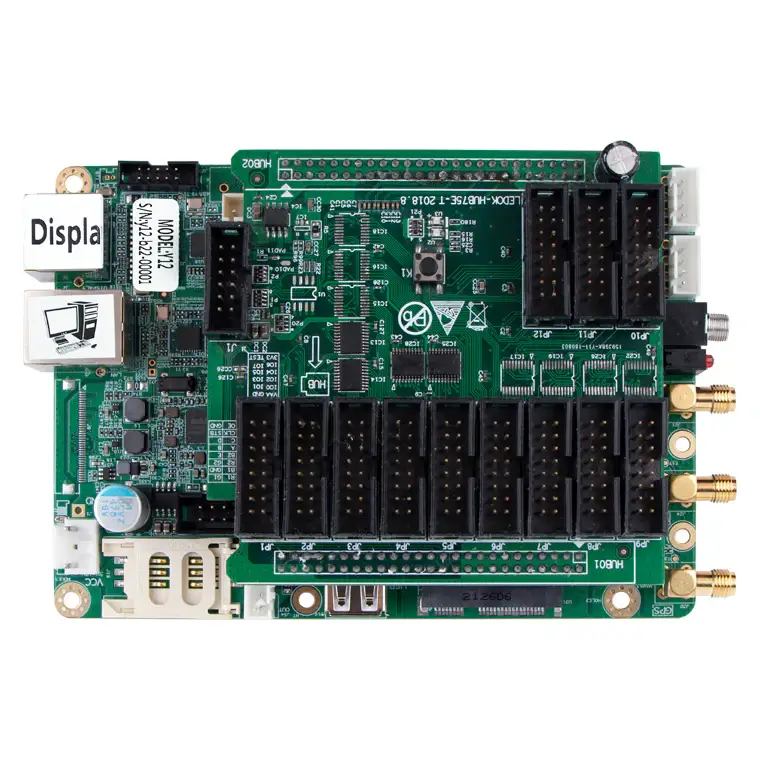

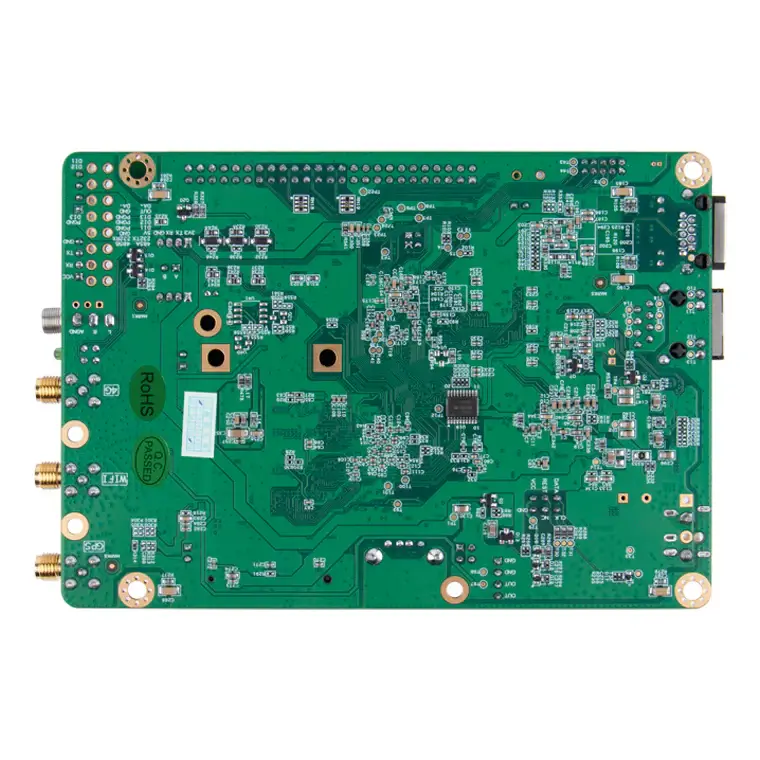

Product Images
