The XingXiu DNP200CL-4.5 converts nominal 200–240VAC mains into 4.5V DC for LED displays. Its rated output is 180W, and its specified input range is 180–264VAC.
Compact 4.5V cabinet power
The power supply uses double-transistor forward conversion with input-to-output isolation. It measures 165 × 55 × 26 mm and uses ventilation cooling. Match the 4.5V output requirement and actual rated power when selecting it for an LED module or replacement installation.
Specifications
| Parameter | Specification |
|---|---|
| Model | DNP200CL-4.5 |
| DC output voltage | 4.5V |
| Input voltage range | 180Vac to 264Vac |
| Normal voltage range | 200Vac to 240Vac |
| Frequency range | 47Hz—63Hz |
| Max input ac current | 3Amax@180Vac |
| Inrush current (cold state) | ＜120A@230V |
| Efficiency (full load) | ≧88%@230Vac,Full load |
| Leakage Current | ≦1 mA, @ 230Vac input |
| Normal output power | 180W |
| Input Fuse | T5AL/250Vac |
| Power Factor | PF>0.95@230Vac，Full Load |
| Cooling Method | Ventilation cooling |
| Dimension | 165mm X 55mm X 26mm |
Frequently Asked Questions
Is the DNP200CL-4.5 rated for 180W or 200W?
The listed rated output power is 180W. The number in the model name should not be used as the power rating.
What output voltage does it supply?
The specified DC output voltage is 4.5V. Match it to the LED module requirements.
Can it run on 110V AC?
No. 110V AC is below the specified input range of 180–264VAC.
How large is this power supply?
The dimensions are 165 × 55 × 26 mm. The cooling method is ventilation cooling.
Where can I check the full DNP200CL-4.5 specifications?
Use the exact-model PDF download below the product photographs to check terminal and mounting details.

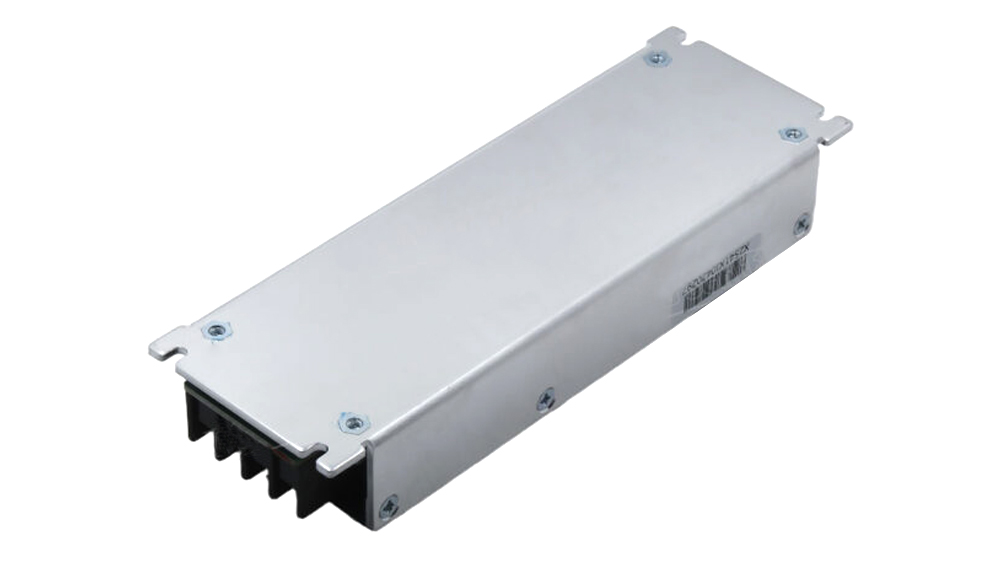

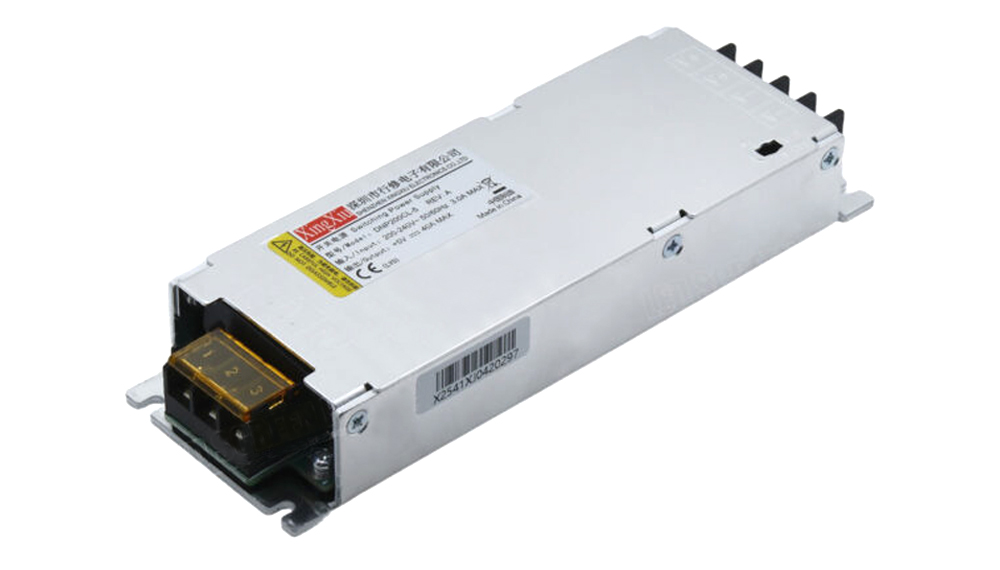

Product photographs and specification PDF
Download Specification:
XingXiu DNP200CL-4.5 LED Power Supply Specification
