The XingXiu DSP400H-5 LED power supply delivers 5V DC with a rated output power of 400W. Its 90–264VAC input range covers nominal 100–240VAC supplies.
5V power in a narrow enclosure
The DSP400H-5 uses LLC control technology with input-to-output isolation. Its enclosure measures 220 × 46 × 26 mm and uses ventilation cooling. Check the 46 mm width, mounting points and terminal clearance when matching it to an LED cabinet.
Specifications
| Parameter | Specification |
|---|---|
| Model | DSP400H-5 |
| DC output voltage | 5V |
| Input voltage range | 90Vac to 264Vac |
| Normal voltage range | 100Vac to 240Vac |
| Frequency range | 47Hz—63Hz |
| Max input ac current | 4.7Amax@100Vac |
| Inrush current (cold state) | <60A@230V |
| Efficiency (full load) | ≧88%@230Vac,Full load |
| Leakage Current | ≦1 mA,@ 230Vac input |
| Normal output power | 400W |
| Input Fuse | T6.3AL/250Vac |
| Power Factor | PF>0.95@230Vac，Full Load |
| Cooling Method | Ventilation cooling |
| Dimension | 220mm X 46mm X 26mm |
Frequently Asked Questions
What is the DSP400H-5 output rating?
The listed output voltage is 5V DC and the rated output power is 400W.
Does it support 110V AC input?
Yes. 110V AC falls within the specified 90–264VAC range; nominal input is 100–240VAC.
What are the dimensions?
The enclosure measures 220 × 46 × 26 mm. Use the specification drawing to check mounting details.
What efficiency and power factor are specified?
Efficiency is at least 88% at 230VAC and full load. Power factor is greater than 0.95 at 230VAC and full load.
Where is the wiring specification?
The DSP400H-5 specification PDF is linked below the product photograph. Check its terminal diagram against the actual unit before installation.

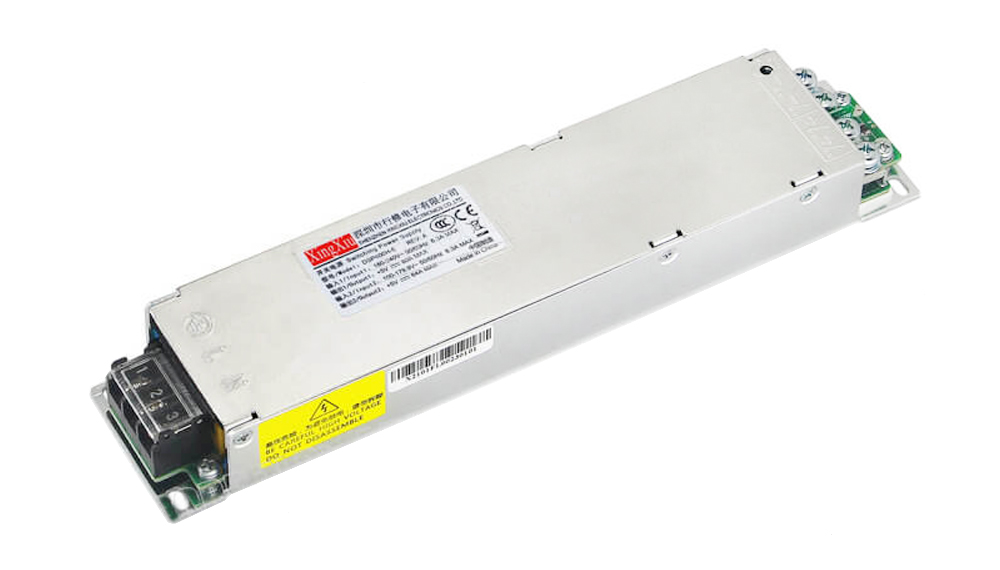

Product photograph and specification PDF
Download Specification:
XingXiu DSP400H-5 LED Power Supply Specification
