L10 LCD Controller for Multimedia Signage
The XIXUN L10 manages LCD signage content, including video, images, text, clocks and scheduled programs. The product listing describes AIPS publishing, live video streaming, camera-image monitoring and GPS-based program tasks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model / display type | L10 / LCD |
| Listed display resolution | 1920 × 1080, full color |
| HDMI output | PDF: up to 1080p |
| Decoding resolution | PDF: up to 3840 × 2160; separate from HDMI output |
| Storage | Original listing: 1 GB onboard flash; linked PDF: 8 GB eMMC. Confirm version. |
| Expansion | SD/TF storage up to 32 GB; original listing specifies TF |
| Memory | PDF: 1 GB DDR3, up to 2 GB |
| Operating system | PDF: Android 4.4 |

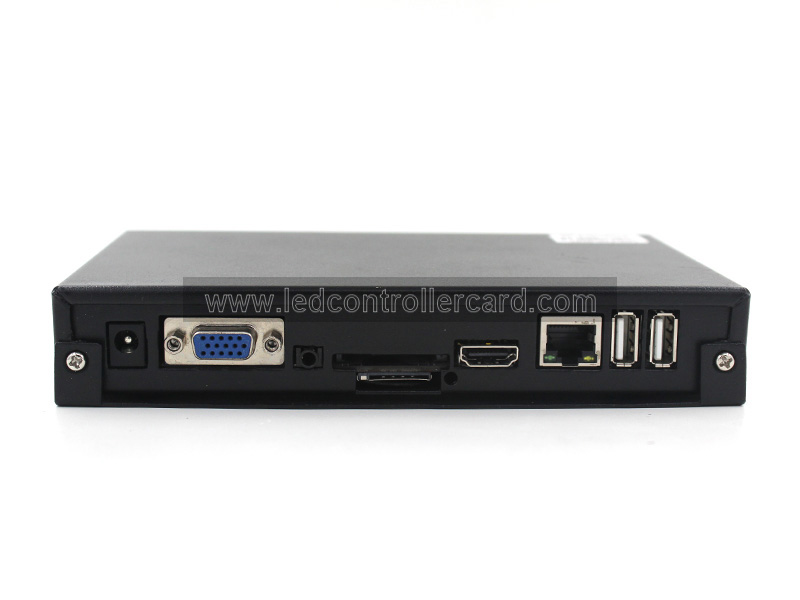

| Networking | WiFi; serial, network and USB ports listed |

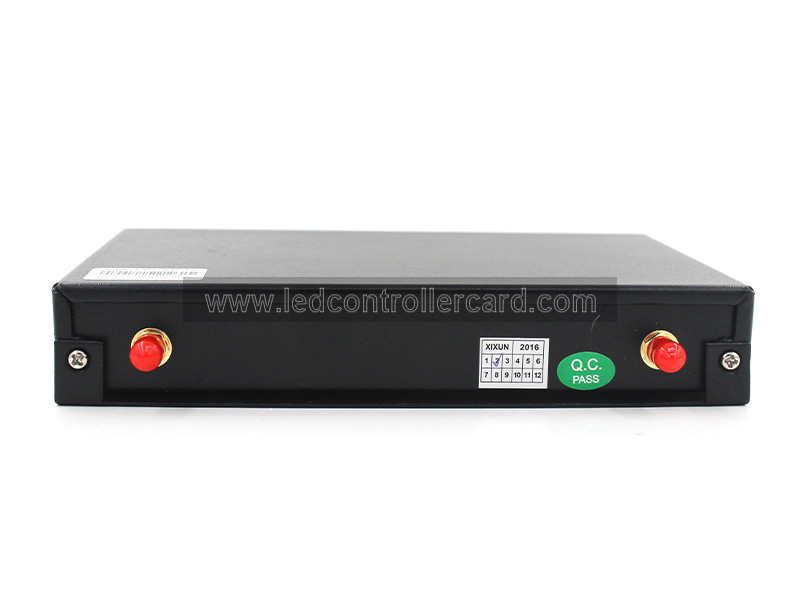

| Cellular option | Optional PCI-E 3G/4G modem in original listing; linked PDF explicitly describes 3G module support |
| Audio | Supported |
| Program features | Scheduling, content readback, GPS-based tasks, live streaming |
| Publishing system | AIPS |
| Power / operating temperature | PDF: DC 12 V / −25°C to 60°C |
The linked PDF describes a configuration that differs from the original listing in storage and cellular details. Match the document to the supplied hardware before using its electrical or interface specifications. The PDF’s 4K decoding capability does not establish 4K HDMI output.
Supported Content
The original listing includes AVI, WMV, MPG, MOV, DAT, VOB, MP4 and FLV video; GIF/SWF animation; BMP, JPG, GIF, WMF and ICO images; and TXT/RTF text. Programs can include single-line or multiline text, analog and digital clocks, timers and countdowns.
Frequently Asked Questions
Is the L10 for LCD screens or LED receiving-card cabinets?
The product specification identifies it as an LCD controller. Confirm the display interface required by your LCD installation.
Does the L10 output 4K video?
The PDF specifies up to 3840 × 2160 decoding but HDMI output up to 1080p. These are separate limits.
How much storage does the L10 have?
The original listing says 1 GB onboard flash, while the linked PDF says 8 GB eMMC. Confirm the supplied hardware version. Both describe expansion up to 32 GB.
Is a cellular modem included?
The original feature list describes an optional PCI-E 3G/4G modem. Confirm the installed modem and required mobile-network support before ordering.
Can the L10 play programs on a schedule?
Yes. Scheduled display, content readback and AIPS multimedia program management are listed functions.
