40pcs P2.5 Indoor 1/32Scan LED Screen Module 64X64dot 160X160mm Notice before order
1) Parts included: LED module, signal cable between modules, power cable between module and power supply.
2) Buy modules of same batch: to avoid brightness&color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.
3) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

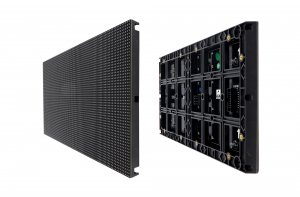

P2.5 Indoor High Definition LED Display Module 160X160mm Specification
|
LED Lamp Specification |
||||||
| Color | Package | Intensity | Viewing Angle | Wavelength | Testing Conditions | |
|
Red |
SMD2020 |
70-100mcd |
120°/120° |
620-625nm |
25℃,20mA |
|
|
Green |
SMD2020 |
120-200mcd |
120°/120° |
515-530nm |
25℃,10mA |
|
|
Blue |
SMD2020 |
30-40mcd |
120°/120° |
465-475nm |
25℃,5mA |
|
|
Module Parameter |
||||||
| Pixel Pitch | 2.5mm | |||||
| Pixel Configuration | SMD2020 | |||||
| Density | 160,000 pixels/㎡ | |||||
| Module Resolution | 64pixel(L) * 64pixel(H) | |||||
| Module Dimension | 160mm(L) * 160mm(H) * 18mm(D) | |||||
| Driving Mode | Constant current, 1/32 duty | |||||
|
Electricity Parameter |
||||||
| Optical Ratings | ||||||
| Brightness | ≥1,200 cd/㎡ | |||||
| Viewing Angle | 120°(Horizontal)； 120°(Vertical) | |||||
| Best Viewing Distance | ≥2.5m | |||||
| Gray Grade | 14 bits | |||||
| Display Color | 4.4 trillion colors | |||||
| Brightness Adjustment | 100 grades by software or automatically by sensor | |||||
| Max. Power Consumption | 20 W | |||||
| control system | ||||||
| Frame Frequency | ≥60Hz | |||||
| Refresh Frequency | ≥1920Hz | |||||
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | |||||
| Control Distance | 100m(Ethernet cable);
20KM(optical fiber cable) |
|||||
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | |||||
| Color Temperature | 5000—9300 adjustable | |||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
| Reliability | ||||||
| Working Temperature | -20～+60 ºC | |||||
| Storage Temperature | -30～+70 ºC | |||||
| Working Humidity | 10%～90% RH | |||||
| Lifetime | 100,000 hours | |||||
| MTBF | 5000 hours | |||||
| Continuous Operating Time | ≥72 hours | |||||
| Protection Grade | IP31 | |||||
| Out-of-Control Pixel Rate | ≤0.01% | |||||
