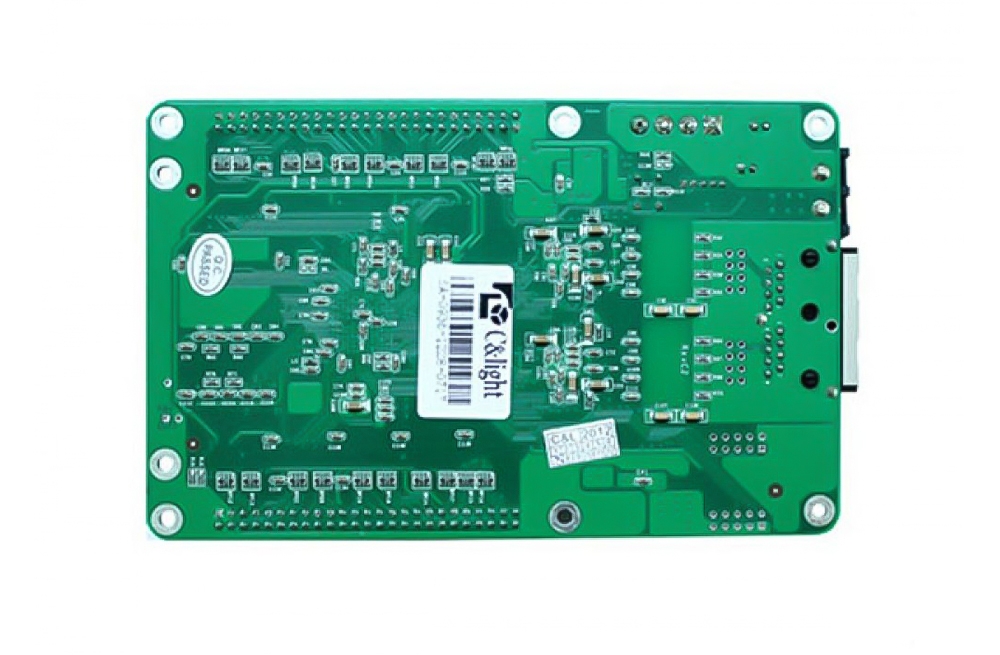

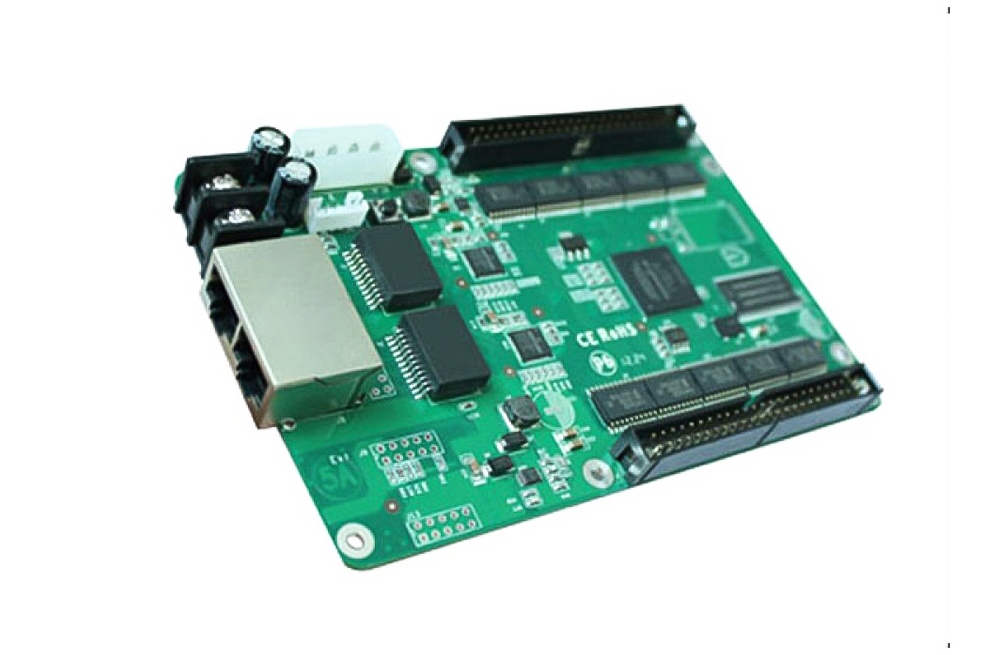

Characteristics of Colorlight 5A LED Display Receiver Card:
• Superior display quality: high refresh rate, high color depth, and high brightness with the conventional chips.
• Supports all types of display module of the mainstream products (5A means any row, any column, any scan, any chips, and any shape).
• The use of more advanced algorithms, so that the receiving card to maximize the use of resources in order to improve display quality.
• Supports for high-precision pixel-by- pixel calibration in the Brightness and the chromaticity.
• Support for large area display.
• Professional design and strict testing to ensure high quality and reliable.
• Supports all conventional sending card of ColorLight, such as T7 LED sender, Q7 HD transmitter, Gigabit NIC, DMB, etc.
Specifications of Colorlight 5A LED Display Receiver Card:
Parameters | RA5 |
Board size | Length 143mm, width 93mm |
Power consumption | 3W |
Current | 0.6A |
Input voltage | DC 5V±10% |
Working temperature | -30℃~85℃ |
Transportation temperature (storage level) | -50℃~125℃
|
Weight | 100g |
Antistatic ability | 2KV |
Module specification | Any row, any column within 8192 pixels |
Scanning mode | Any scan from Static to 1/32 scan |
Chip support | Conventional chip |
Module pumping-point | Nonsupport |
Data serial transmission | Nonsupport |
HUB board data exchange | Nonsupport |
Grey-scale | 1 -65536 |
Serial frequency | 1KHz~41.3Mhz |
Control area (single card) | Full color ,1/8 scan : 512*128 |
Correction area (single card) | 256*256 pixels |
cascade card numbers (single cable) | 65536PCS |
The communication distance between the key controller and the card, the card and the card | CAT5 cable≤140M CAT6 cable≤170M Optical cable≧20M |
Cascade control area | 65536*65536 pixels |
Refresh rate | Related to scanning mode, static : 64×64module, 4096 grayscale: 4000Hz in maximum |
Sending equipment | Sending card or gigabit NIC |
Temperature sensor | Without |
Relay | Without |
Network upgrade | Support |
Network port exchange | Support |
Double backup | Support |
Virtual pixel | Nonsupport |
Compatible transmission equipment | Gigabit switch, gigabit optical fiber converter |
