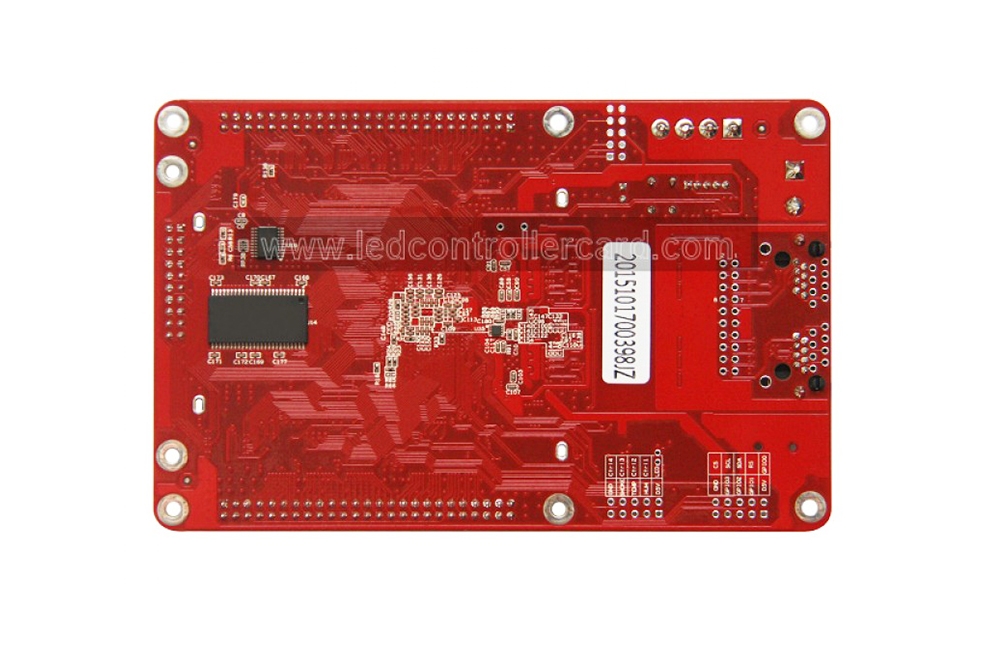

Colorlight i6P LED Receiving Card
The Colorlight i6P is a receiving card for LED display cabinets. It takes display data from a compatible Colorlight sending system and drives the connected LED modules through the cabinet’s matching HUB board. Use the exact model and cabinet configuration when selecting a replacement or building a new LED screen.
Key specifications
| Item | Listed detail |
|---|---|
| Product type | LED display receiving card |
| Model | Colorlight i6P |
| Maximum card load | 256 × 256 pixels per card |
| Signal outputs | 16 groups of RGBR′ or 20 groups of RGB; the listing mentions expansion to 32 groups |
| Working voltage stated on the original listing | DC 3.3–6 V |
These figures come from the existing i6P listing. Confirm the required scan configuration, HUB board pinout, output wiring and power supply for your cabinet before installation.
Where the i6P fits in an LED display system
A sending device prepares the video signal and sends cabinet data over the control network. The i6P receiving card is installed inside the LED cabinet and passes the mapped pixel data to its LED modules. HDMI or DVI is connected to the appropriate upstream controller, not directly to the i6P receiving card.
Before you order
- Check that the card is marked i6P; related Colorlight receiver models are not interchangeable without checking the cabinet design.
- Confirm your cabinet resolution stays within the listed 256 × 256 pixel load per card.
- Match the HUB board, module scan mode, ribbon cable orientation and power connection to your existing cabinet.
- Verify sender and software compatibility for your specific control system and firmware.
Frequently asked questions
Is the Colorlight i6P a sending card?
No. It is a receiving card installed in an LED display cabinet. A separate sending device or controller supplies the display data.
Can I replace an i6 or i5A card with an i6P?
Do not assume a direct swap. Check the exact HUB board interface, cabinet wiring, scan settings, power and control-system configuration first.
What is the listed load capacity?
The current listing states up to 256 × 256 pixels for each i6P receiving card. The usable layout also depends on the LED modules and cabinet configuration.
Conclusion
The Colorlight i6P is a cabinet-side LED receiving card with a listed load of up to 256 × 256 pixels per card. For a reliable fit, confirm the card marking and your cabinet’s HUB board, wiring, power and sender setup before purchasing. Contact us with your cabinet details if you need help checking compatibility.
