Colorlight X8m LED Video Controller Overview
The Colorlight X8m accepts 4K sources and processes them for an LED wall through eight Gigabit Ethernet outputs. Its rated output capacity is 5.24 million pixels at 8-bit/60Hz. Choose it by the actual LED wall pixel count, source connections and required layer layout.
Key Specifications
| Item | Specification |
|---|---|
| 4K inputs | 1 × HDMI 2.0; 1 × DP 1.2; up to 4096 × 2160 at 60Hz |
| HD inputs | 4 × HDMI 1.4; up to 1920 × 1200 at 60Hz each |
| LED outputs | 8 × Gigabit Ethernet |
| Total load at 8-bit | 60Hz: 5.24M pixels; 120Hz: 2.62M; 240Hz: 1.31M |
| Canvas limits | Maximum width: 16,384 pixels; maximum height: 8,192 pixels; total pixel limit still applies |
| Audio | 3.5mm input/output; HDMI/DP audio decoding |
| Power | AC 100–240V, 50/60Hz; rated 52W |
Layer Layouts, Playback and Control
Build layouts with up to six HD layers, one 4K layer plus four HD layers, or two 4K layers. The number of available layers depends on the input mix; six simultaneous 4K layers are not supported.
USB drive playback lets you use stored images and videos. Independent audio connections and HDMI/DP audio decoding help route sound to the audio system. Save frequently used layouts with 128 scene presets, and use web control for device management. Optional 3D and OSD functions require the appropriate configuration or accessories.
Check Your LED Wall Before Ordering
- Calculate physical pixels: multiply cabinet pixel width by cabinets across, then cabinet pixel height by cabinets down. Multiply these two totals to get the wall load.
- Plan each output: check receiving-card compatibility, cabinet wiring and the pixel allocation on every Ethernet port. A wall that fits the overall capacity still needs a valid port map.
- List your sources: specify each laptop, media server or camera feed, its connector and output timing. Choose a layer layout that matches the presentation.
- Confirm your configuration: provide your receiving-card model, firmware and required operating mode before selecting control software or optional accessories.
Browse our LED receiving cards or contact us with your cabinet layout for a compatibility check.
Frequently Asked Questions
Does 4K input mean a full 4K LED wall output?
No. Input resolution and LED output capacity are separate specifications. A 3840 × 2160 wall contains 8,294,400 pixels, above this controller’s 60Hz capacity. A 4K source can be scaled to a smaller LED canvas.
Can I use the maximum width and height together?
No. They are separate dimension limits. Keep the wall within both the total pixel budget and the permitted output mapping.
Where can I find the X8m manual and specifications?
Use the specification download below and the official Colorlight X8m/X12m document library. Select the document for X8m when checking model-specific capacity.
Conclusion
The X8m suits projects needing several video sources, flexible layouts and local USB playback. Confirm the wall load, port map and layer mix before ordering so the controller matches your display design.

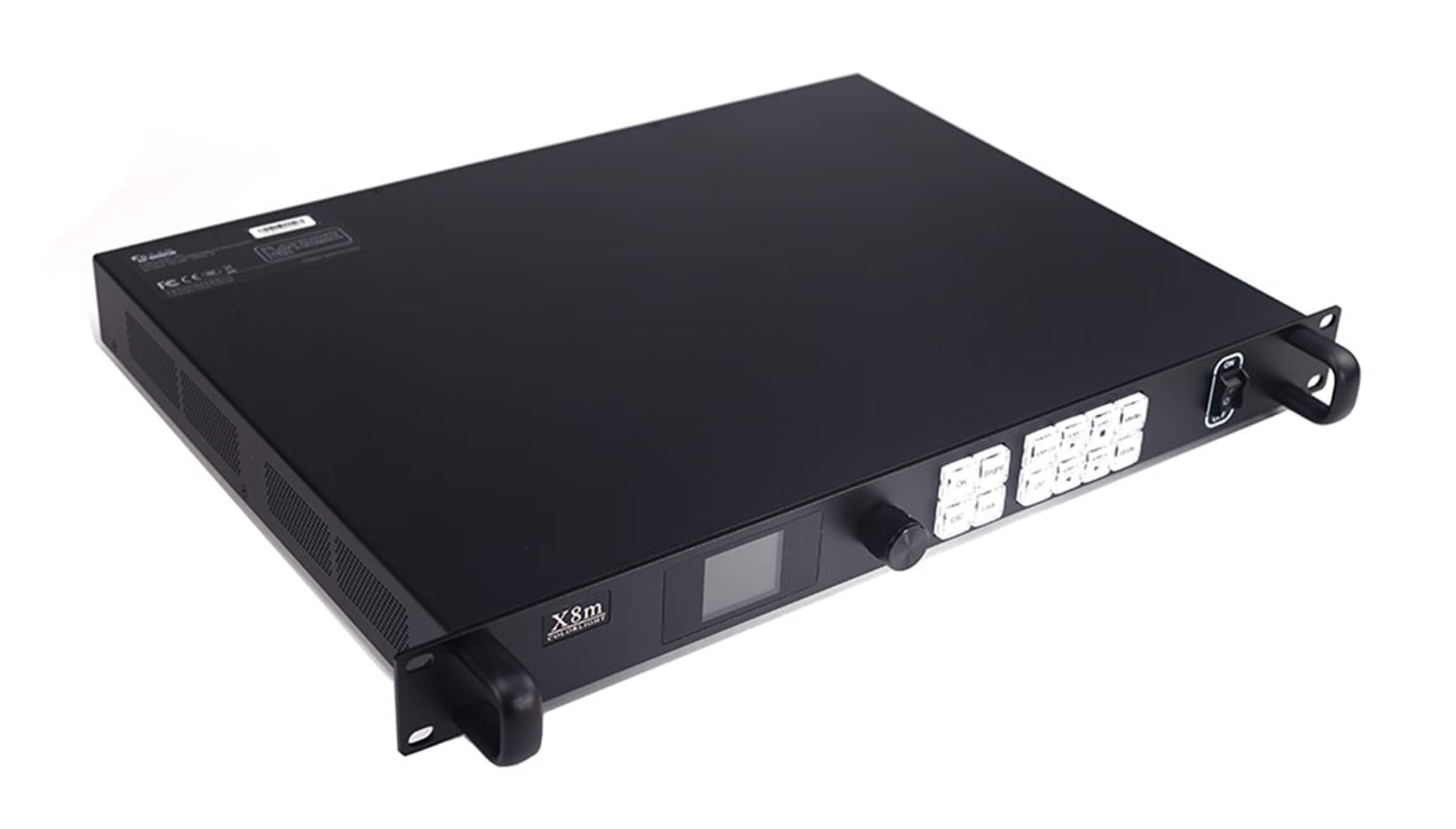

Product Image and Specification Download
Download Specification:
Colorlight X8m LED Display Video Controller Specification
