J300V4.5A13 LED display power supply
The G-Energy J300V4.5A13 is a 300W maximum-output power supply for LED display screens. It uses a 200–240Vac input and natural cooling, with a 190 × 82 × 30 mm enclosure. Check the complete model marking when sourcing a replacement.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | J300V4.5A13 |
| Maximum output power | 300W Max |
| Input voltage and frequency | 200–240Vac, 47–63Hz |
| Leakage current | <1mA (Vin: 230V) |
| Working temperature | −30°C to 60°C |
| Storage temperature | −40°C to 80°C |
| Cooling method | Natural cooling |
| Power factor | 0.50 at 230Vac |
| Dimensions (L × W × H) | 190 × 82 × 30 mm |
| Insulation voltage | I/P–O/P: 3.0kVac; I/P–FG: 1.5kVac; O/P–FG: 0.5kVac |
| Protection functions | Input undervoltage protection, short circuit protection, input undervoltage recovery point, output current limiting protection point |
Choosing a replacement
Compare the input supply, required output voltage and current, terminal layout and mounting dimensions with the existing unit. Do not select a substitute based only on the 300W rating. Contact us with a clear label photo if you need model identification help.

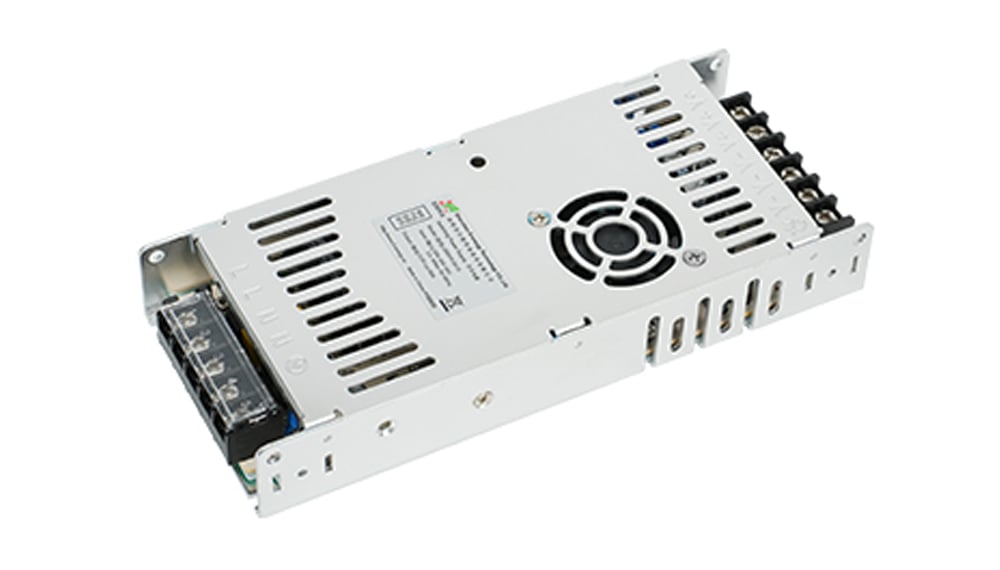

Product photo
Frequently Asked Questions
Can the J300V4.5A13 run on 110V AC?
The listed input range is 200–240Vac at 47–63Hz. 110V AC is outside that range; check your supply voltage and the unit label before installation.
What is the maximum output power?
The J300V4.5A13 is listed at 300W maximum output power. Confirm the required output voltage and current separately when checking compatibility.
How much mounting space does it need?
The enclosure measures 190 × 82 × 30 mm. Allow for the installation’s mounting arrangement, wiring access and ventilation requirements.
What cooling method and operating temperature are listed?
The specification lists natural cooling and a working temperature range of −30°C to 60°C.
Is the 0.50 power factor an efficiency rating?
No. The listed 0.50 at 230Vac is the power factor, not a conversion-efficiency percentage. This listing does not provide a conversion-efficiency value.
