JPS200V5-A Power Supply for LED Displays
The G-Energy JPS200V5-A supplies 5V power for LED display systems. It is listed at 200W maximum output and accepts 100–240Vac at 47–63Hz. Its naturally cooled enclosure measures 190 × 84 × 30 mm, making cabinet space and mounting fit practical checks for replacement orders.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | JPS200V5-A |
| Output voltage | 5V |
| Maximum output power | 200W Max |
| AC input | 100–240Vac, 47–63Hz |
| Leakage current | <1mA (Vin:230) |
| Working temperature | -30°C to 60°C |
| Storage temperature | -40°C to 80°C |
| Cooling | Natural cooling |
| Power factor | 0.50@230Vac |
| Dimensions (L × W × H) | 190 × 84 × 30 mm |
| Protection functions | Input undervoltage protection; input undervoltage recovery point; output current limiting protection point |
Ordering the Correct Replacement
Check the full model number on the power-supply label and the voltage required by the LED modules. Measure mounting holes and allow space for terminals and wiring. Match the cabinet load to the unit’s permitted output under the installation conditions; a maximum wattage alone is not enough to establish compatibility.
Use our contact page for help matching a unit, or compare the models in our LED power supply category.
Frequently Asked Questions
What output voltage does the JPS200V5-A provide?
The listed output voltage is 5V, with a maximum output power of 200W. Verify the LED modules’ voltage requirements before selecting a replacement.
Can this model be used with 100–240Vac input?
Yes. The listed input specification is 100–240Vac at 47–63Hz. Check the markings and installation instructions on the supplied unit.
What are the JPS200V5-A dimensions?
The listed dimensions are 190 × 84 × 30 mm, in length × width × height order. Mounting-hole positions and cable clearance must also fit the cabinet.
Does this power supply need a cooling fan?
The specified cooling method is natural cooling. Follow the unit’s mounting and heat-dissipation requirements.
Is the 0.50 value the conversion efficiency?
No. The manufacturer identifies 0.50@230Vac as power factor. It should not be used as a conversion-efficiency percentage.
Conclusion
The JPS200V5-A combines a listed 5V output and 200W maximum power rating with 100–240Vac input. Confirm cabinet fit and load requirements when ordering.

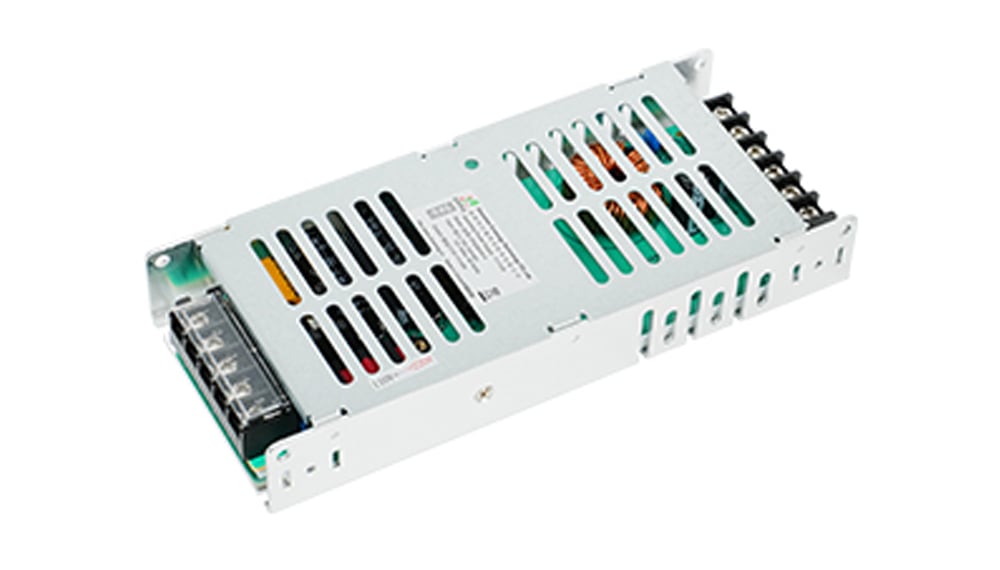

Product Image
