Huidu HD-A5L LED Multimedia Player Overview
The Huidu HD-A5L is a dual-mode LED display controller for playing scheduled content and showing a live HDMI source. It supports video, images, GIFs, text, WPS documents, tables, clocks, and timers. A single A5L can control an LED canvas of up to 1.3 million pixels through two Gigabit Ethernet outputs connected to compatible Huidu HD-R receiving cards.
Use asynchronous playback for uploaded programs or switch to synchronous playback for an HDMI source. HDMI input supports automatic scaling and picture-in-picture with asynchronous content. The player can be managed locally through a network connection, USB, or the LedArt mobile app over its built-in 2.4 GHz Wi-Fi. XiaoHui Cloud supports remote cluster management when the player has an Internet connection; 4G/5G modules are optional.
HD-A5L Specifications
| Feature | HD-A5L specification |
|---|---|
| Maximum LED loading | 1.3 million pixels |
| Playback modes | Synchronous HDMI input and asynchronous program playback |
| LED outputs | 2 Gigabit Ethernet ports for HD-R series receiving cards |
| Communication port | 1 Gigabit Ethernet input for setup and program delivery |
| Other inputs | 1 HDMI input; USB 3.0; USB 2.0/OTG; 2 sensor interfaces |
| Wireless and remote control | Built-in 2.4 GHz Wi-Fi; LedArt app; XiaoHui Cloud; optional 4G/5G module |
| Storage | 16 GB internal storage and 2 GB RAM |
| Audio | 3.5 mm stereo output |
How the HD-A5L Fits an LED Display System
- Scheduled content: Send programs over the network or load them through USB, then play them without a continuous HDMI source.
- Live source: Connect a computer or other HDMI source to HDMI IN for synchronous playback; the player scales the input for the configured LED screen.
- LED connection: Connect the two Gigabit output ports to supported HD-R receiving cards. Confirm the final pixel map and receiving-card configuration before installation.
- Remote management: Use LedArt for local wireless control or XiaoHui Cloud for Internet-based management. Cellular connectivity requires an optional module and service.
4K decoding is a media-decoding capability, not a 4K LED-canvas capacity. Plan the display around the HD-A5L’s 1.3-million-pixel loading limit. Huidu lists up to two 4K, six 1080p, ten 720p, or twenty 360p video windows for playback.
HD-A5L Questions
Can the HD-A5L show live HDMI video?
Yes. Its HDMI input supports synchronous playback and automatic scaling. It can also combine synchronous and asynchronous content in picture-in-picture layouts.
Does the HD-A5L include cellular networking?
No cellular module is stated as standard. Huidu lists 4G/5G connectivity as optional for Internet remote management.
Which receiving cards can it drive?
The two Gigabit output ports are specified for Huidu HD-R series receiving cards. Check the chosen card model and screen configuration for your project.

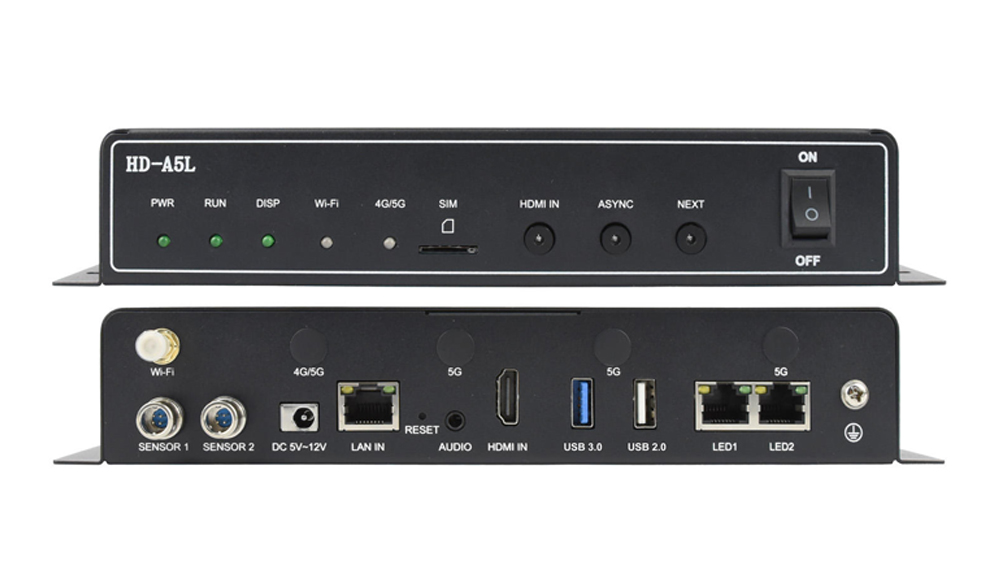

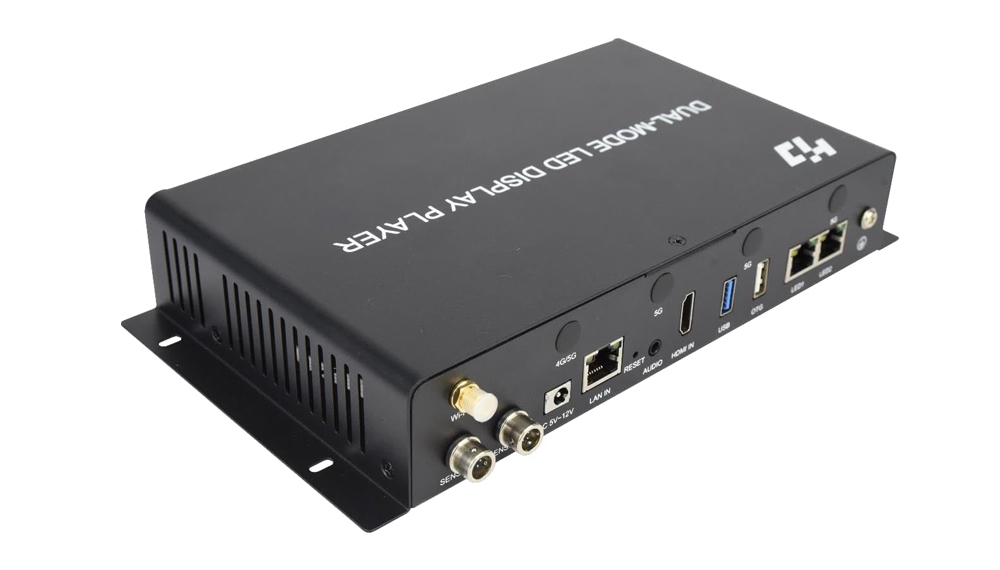

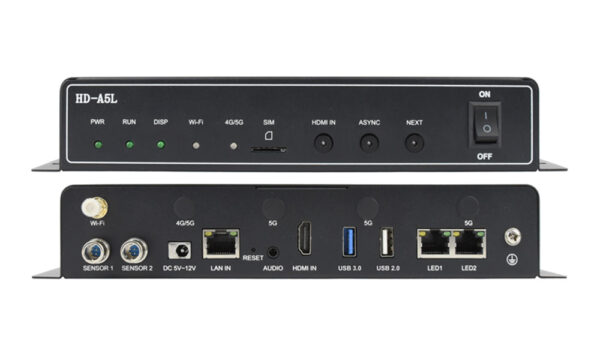

Product Image and Specification
Download specification: Huidu HD-A5L LED Display Multimedia Player Specification. See the manufacturer’s HD-A6L/A5L/A4L product page for the current model family information.
Conclusion
Choose the HD-A5L when you need one player for scheduled LED content and a live HDMI source, with two LED output ports and a maximum 1.3-million-pixel canvas. Verify receiving-card compatibility and optional network accessories against the installation plan.
