Sysolution S200 Independent LED Video Processor
The Sysolution S200 combines video processing with LED display transmission through Ethernet and optical-fiber interfaces. It is intended for systems that need high-resolution input handling, flexible transmission connections and backup arrangements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | S200 |
| Listed processing capability | Full 4K × 2K at 60 Hz |
| Video inputs | 1 × HDMI 2.0; 1 × DP 1.2 |
| Audio input | 1 |
| Ethernet outputs | 20 × Gigabit Ethernet |
| Optical interfaces | 4; bidirectional duplex transmission |
| Communication controls | 1 × USB; 1 × serial; 1 × 100 Mbps network interface |
| Backup support | Network-port loop backup and dual-main-controller backup |
| Resolution settings | Preset and custom resolutions supported |
| Configuration readback | Supported |
| Status monitoring | Operating parameters and status through host software |
Transmission and Backup Planning
Select Ethernet or fiber connections to suit the installation and confirm the receiving equipment, optical modules and cable requirements. The presence of fiber interfaces does not establish that a particular module, fiber type or transmission distance is included or supported.
Network-port loop backup and dual-main-controller backup are listed functions. These require the matching system wiring and configuration; a backup-capable interface alone does not create a redundant display path.
Input Timing and Configuration
The product lists compatibility with input frame rates including 30, 50, 60 and 120 Hz. Confirm the required resolution and frame rate as a supported combination. The listed 4K × 2K at 60 Hz processing capability should not be read as 4K at every frame rate.
Host software can monitor operating parameters and status, and configuration readback supports maintenance. Retain the existing configuration when replacing or commissioning a controller.

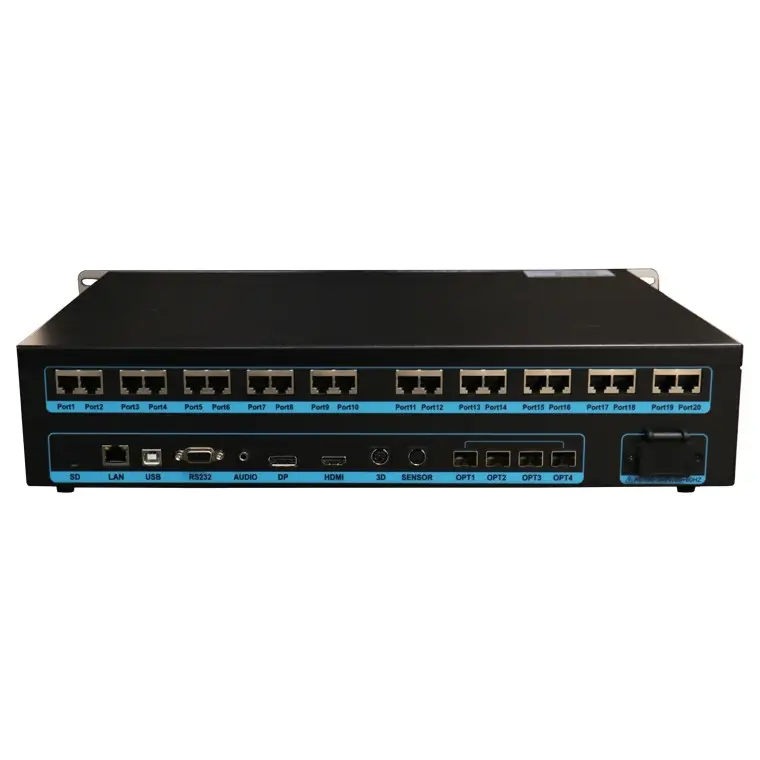

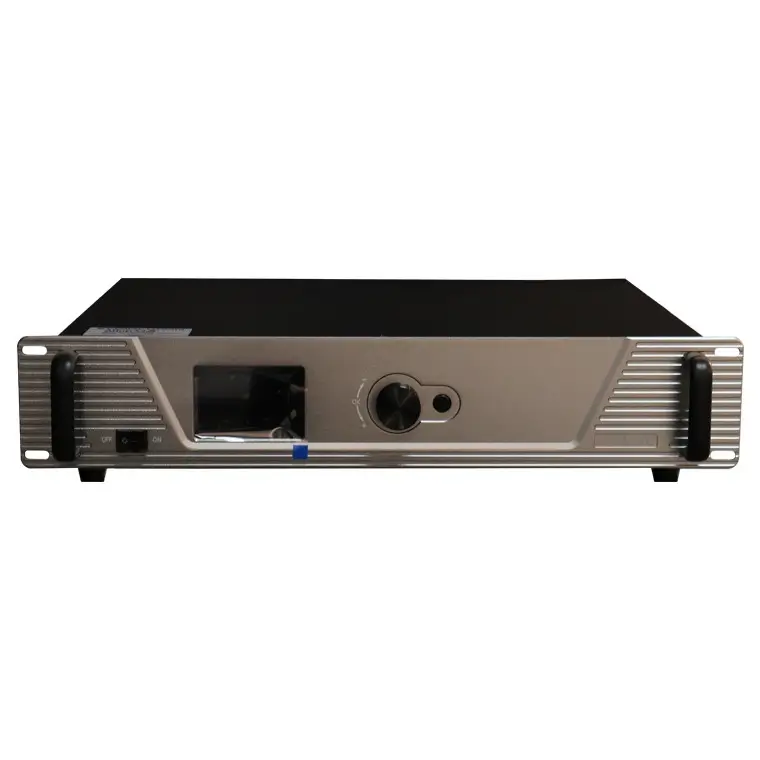

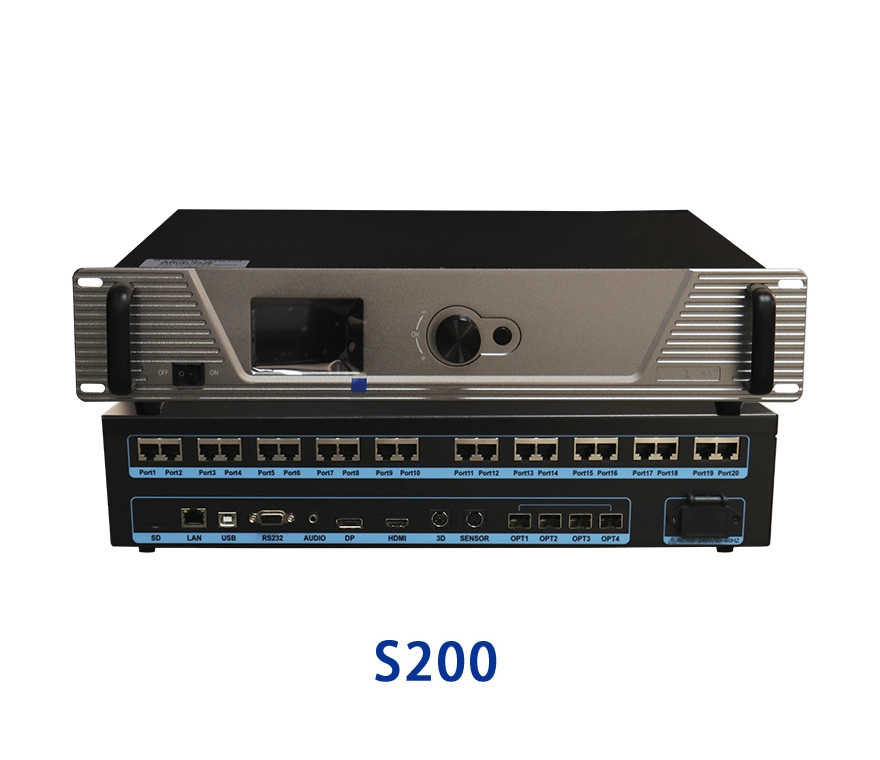

Product Images
Download Specification
Sysolution S200 LED Video Processor Specification (PDF)
Frequently Asked Questions
Which video inputs does the S200 provide?
The listed inputs are one HDMI 2.0 and one DisplayPort 1.2 connection, plus an audio input.
How many Ethernet outputs are available?
The S200 provides 20 Gigabit Ethernet outputs. Confirm the required LED loading and port allocation for the supplied version before finalizing the display design.
Does the S200 support optical-fiber transmission?
Yes. It lists four bidirectional duplex optical interfaces. Confirm the compatible modules, fiber type and transmission arrangement for the project.
What backup functions are listed for the S200?
Network-port loop backup and dual-main-controller backup are supported. The installation must be configured for the chosen backup method.
Does 120 Hz input support mean 4K at 120 Hz?
Not necessarily. The product separately lists full 4K × 2K at 60 Hz processing and several supported input frame rates. Confirm the exact resolution/frame-rate combination before use.
