Overview

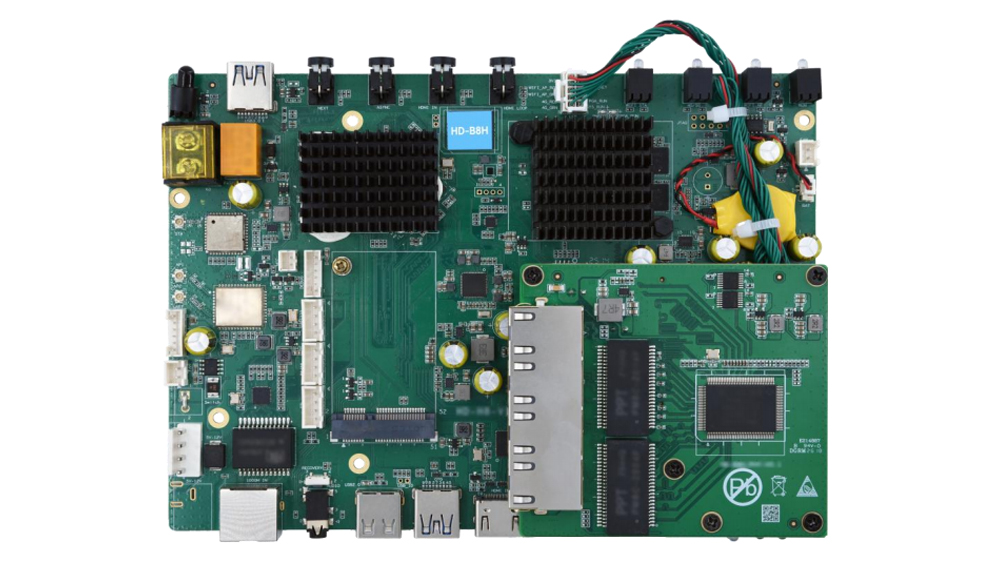

HD-B8H is a dedicated control system for LED poster screens, integrating a media player, third-party applications and local programme production, enabling programme creation and playback directly on the terminal device. It offers powerful interactive and playback control capabilities, supporting wireless screen mirroring from devices running Windows, iOS, Android and other platforms. It supports the connection of peripheral devices such as central control units, cameras, speakers, sensors and infrared touchscreens. With a wide range of hardware interfaces and flexible playback and control functions, it is widely used in applications such as mobile LED display screens, digital signage and video wall displays.
Features:
Input：
1. 1 * Gigabit Ethernet port for connecting to the network and communicating with external devices via TCP/UDP;
2. 2 * HDMI 1.4 inputs, supporting daisy-chaining and picture-in-picture functionality;
3. 2 * USB ports (USB 2.0 / USB 3.0) for playing content from USB flash drives, firmware updates or storage expansion, etc.;
4. 1 * OTG port (customisable OTG/USB mode; functions as a USB flash drive by default);
5. 1 * TTL sensor port for connecting various environmental monitoring sensors or GPS devices;
6. 1 * RS232 and 1 RS485 port (for integration with central control systems);
7. 1 * K0 relay port.
Output：
1. 4 * Gigabit Ethernet ports for cascading HD capture cards for display;
2. 1 * HDMI OUT port for cascading signal loop-out or video monitoring;
3. 1 * 2-pin MIC socket (reserved) for connecting external audio equipment;
4. 1 * standard 3.5mm TRS stereo audio output. Function：
1. Supports 2.6 million pixels loading capacity; 8.8 million in a cascaded configuration; supports a maximum width of 65,536 pixels or a maximum height of 8,192 pixels; supports up to 14 units in a cascaded configuration;
2. Supports third-party applications;
3. Supports local programme editing, production and playback;
4. Multi-platform wireless screen mirroring, supporting Windows, MAC, iOS, Android and screen mirroring devices;
5. Dual Wi-Fi chips supporting the 2.4 GHz and 5 GHz bands, enabling high-resolution, low-latency screen mirroring, and allowing simultaneous operation of a Wi-Fi hotspot and wireless internet access;
6. Video playback performance: 2 channels of 4K, 6 channels of 1080p, 10 channels of 720p or 20 channels of 360p (Note: When the total pixel count of the splicing load exceeds 8.29 million pixels, support 1 channel of 4K, 3 channels of 1080p, 5 channels of 720p or 10 channels of 360p );
7. Enters low-power mode when on standby, with standby power consumption of less than 0.5W;
8. 1×RS232 and 1×RS485 for integration with central control systems.
Download Specification:
Huidu HD-B8H LED Poster Display Controller Specification
