Overview

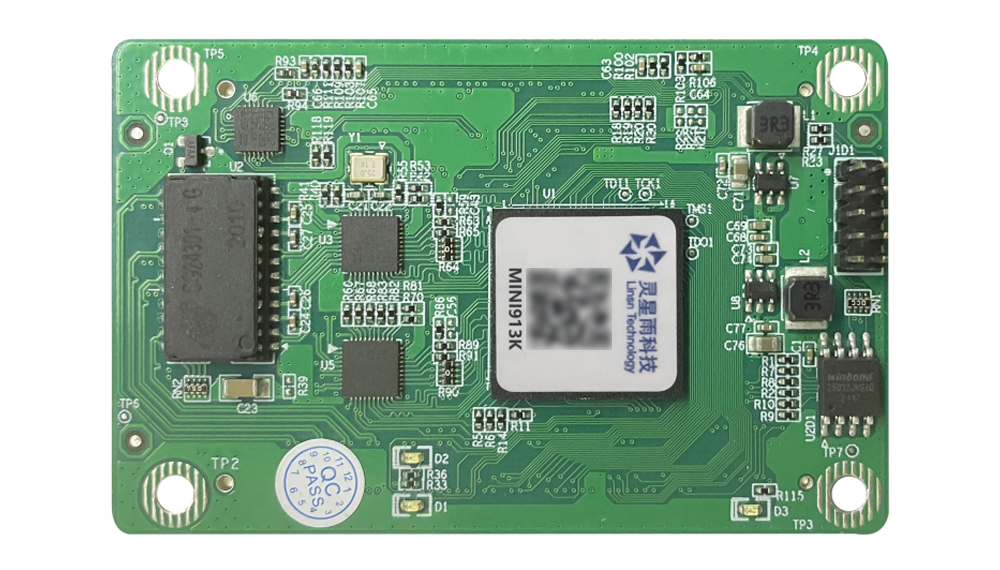

Mini913K is a high-end and full-featured ultra-small size mini-receiver card.Compared with traditional receiver card, Mini913K uses high-density BTB connector. It is more flexible and it adapts to a variety of electronic circuit structure, achieving a card suitable for all applications, which will considerably reduce the types of purchasing receiver card. The system, specific circuits and program design of Mini913M, can effectively reduce the electromagnetic radiation and effectively help products easily pass through the EMC test. Specific features are as follows:
Functions and features
1. Single card can support 32- group RGB data output mode;
2. Supports 64-group serial data output mode;
3. Realize high refresh and high gray level effect
4. Supports general driver IC and PWM IC;
5. Maximum supports 512X512 pixels;
6. Use 18-bit signal processor, maximum supporting 18-bit (260,000) gray (each of red, green and blue);
7. Supports single-card color space conversion;
8. Supports configuration file read back;
9.Supports faulty pixel detection(requires dedicated ICs);
10.Supports network cable BER test;
11.Supports flat-cable detection;
12.Supports hot backup with dual network cables,dual power suplier,etc;
13.Allows to save calibration data on flash drive IC on module;
14.Supports temperature and humidity monitor;
15.Supports smoke detection;
16.Supports voltage detection;
17.Supports door status（open/close)and fan speed detection;
18.Supports LCD monitor display function.
Download Specification:
Linsn Mini913K Receiving Card Specification
